Main technical parameter of waterjet cutting machine |

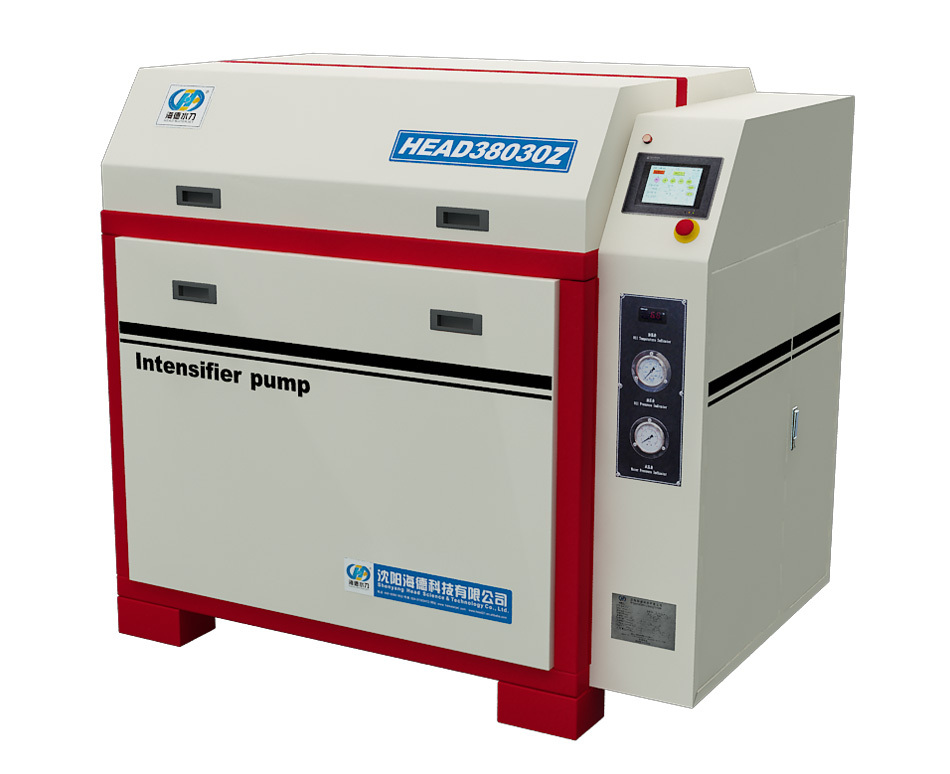

Intensifier Pump |
Item |
Parameter |
|
Model |
HD38030Z-12A/HD42037Z-12A |
Brand |
ACCUSTREAM from USA |
Method of Direction Regulation |
Electronic Direction Regulation |
Pressure Range |
300-420MPA |
Maximum Flow of Hydraulic Pump |
90L/min |
Maximum Discharge Capacity |
3.7L/min, 3.8L/min |
Maximum Diameter of Gem Nozzle |
0.3mm,0.33mm |
Power of Master Motor |
18.5KW(25Hp)-30KW(40Hp)-37KW(50Hp) |
Power Source |
380V/50HZ |

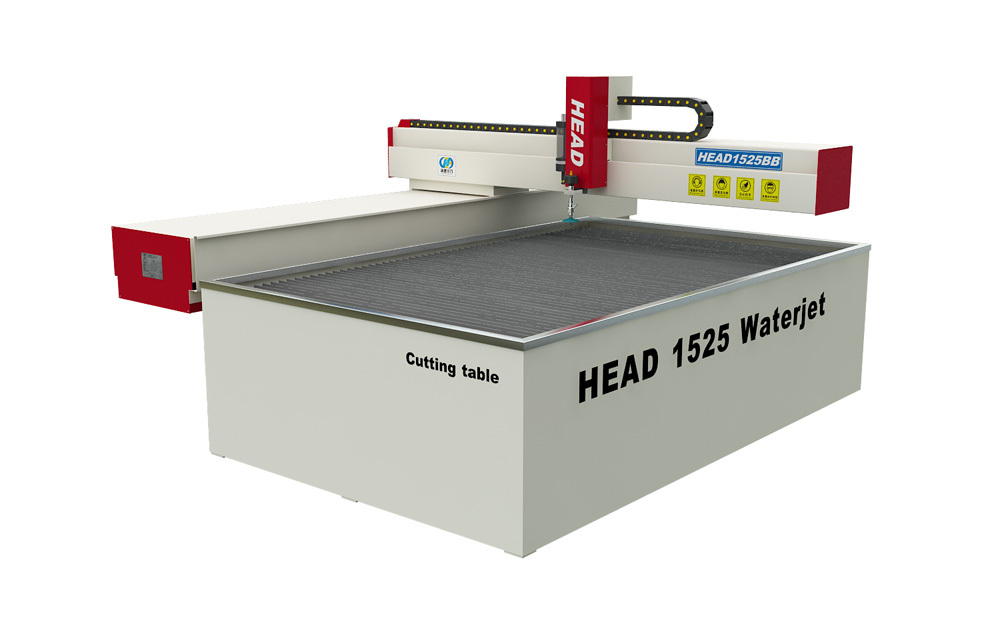

Cutting Table |
Item |
Parameter |
|
X axis characteristic |
One-off extrusion forming aluminum alloy |
Y axis characteristic |
Cast iron used as foundation base |
Z axis characteristic |
double linear guide and four sliding block |
Driving system |
Z axis automatic controll,3axis association process |
Ball screw,linear guide |
ABBA Taiwan |
Table structure |
Separated body |
Driving way |
Servo drive system |
CNC system |
Ncstudio ,Fagor |
Servo motor |
YASKAWA/FUJI |
Cutting head |
Casting structure and concrete structure |
Sealing way |
Whole piece sealing |
Loading weight water tank |
Wall thickness is 5mm,using fluorocarbon coating |

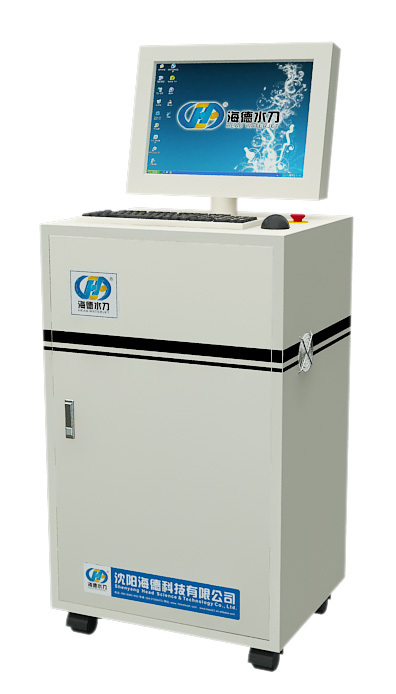

CNC Controller |
Item |
Parameter |
|
Control Method |
CNC |
Display Size |
19inch LCD |
Model of Cutting Text |
DXF |
Model of Computer |
Industrial Control Computer |
Operating System |
Windows XP/7 |
PLC |
OMRON |
Cutting software advantage |
Auto save and transfer common parameter |
Controller displace |
Can be fit to suitable place at own will |

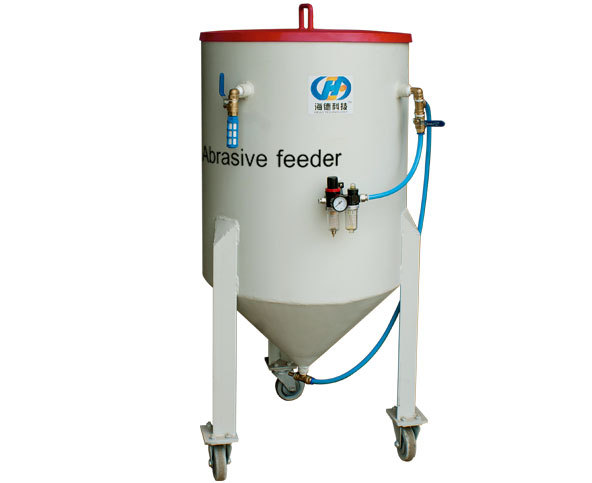

Automitic Abrasive Feeder |
Item |
Parameter |
|
Founction |
Sand storage and sand delivery |
Operating |
No need electrocnic control,sample operation |
Capacity |
200 liters for 8 hours |
Pressure |
Less than 0.2Mpa compresses gas pressure |
Level |
Standard equipment of HEAD waterjet |
Color |
White |

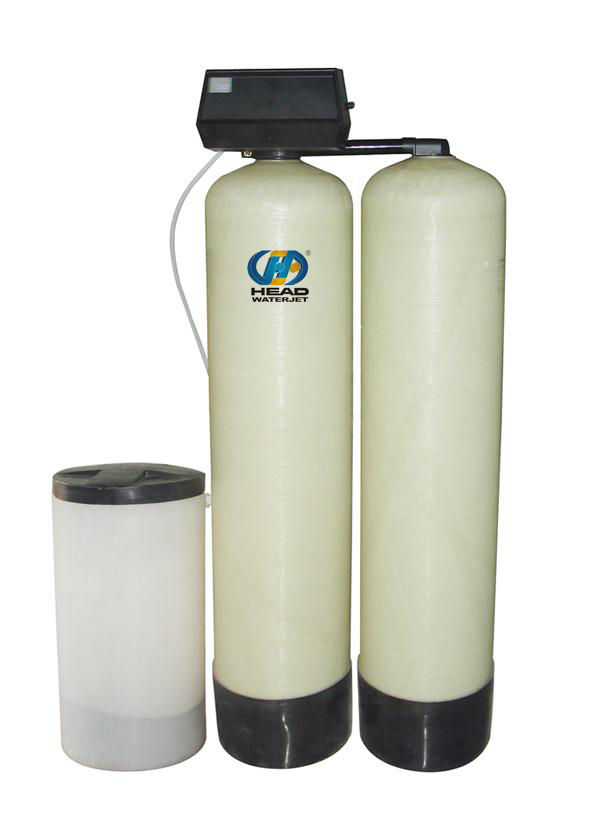

Deionization System |
Item |
Parameter |
|
Founction |
Softening water |
Operation |
Simple operation |
advantage |
Inmproving useful life of other parts |
Color |
White |
Wireless Handel |
Item |
Parameter |
|
Founction |
Wireless controlling waterjet |
Display |
Real- time display condition of X,Y,Z axis |
Settings |
Zero point, on/off valve set, X,Y,Z axis moving |
Technology |
Advanced technology |
