2.4inch LCD Module with Video input 480x234 dots small size GD24TWD-GTT24P138

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Place of Origin
    Liaoning, China (Mainland)
  • Screen Size
    2.4 inch
  • Resolution
    480x234
  • Backlight
    LED
  • Type
    TFT

Brief description

1.Resolution: 480x234
2.Backlight: LED

Detailed description





Our Certifications







Main Parameters



1 LCD display size                                2.4 inch
2 LCD aspect ratio 4:3
3 backlight LED
4 Brightness                                    300cd/m2
5 Resolution                                                        480 x (RGB) x 234
6 View angle(U/D/L/R) 50/65/65/65
7 Contrast 500:1(Contrast)
8 Input signal VIDEO
9 System: PAL/NTSC(automatic identifying and converting)
10 LCD screen dimension                  55.2(W)×47.55(H)×2.9(D)
11 Active Area(mm)                          48.0(H)×35.685(V)
12 Driver board imension                                  50.0(W)×50.0(H)×7.0(D)
13 Working voltage(Power supply <=0.3VP-P) Min:DC9V;T:DC12V;Ma x :DC18V (5V Option)
14 Working current(DC 12V power supply) DC150mA±20mA
15 Power consume 1.8W(TYP)
16 Starting time 2.0ms
17 Operation temperature -10°C~60°C
18 Storage temperature -20°C~70°C
19 Relative humidity 5~95%RH

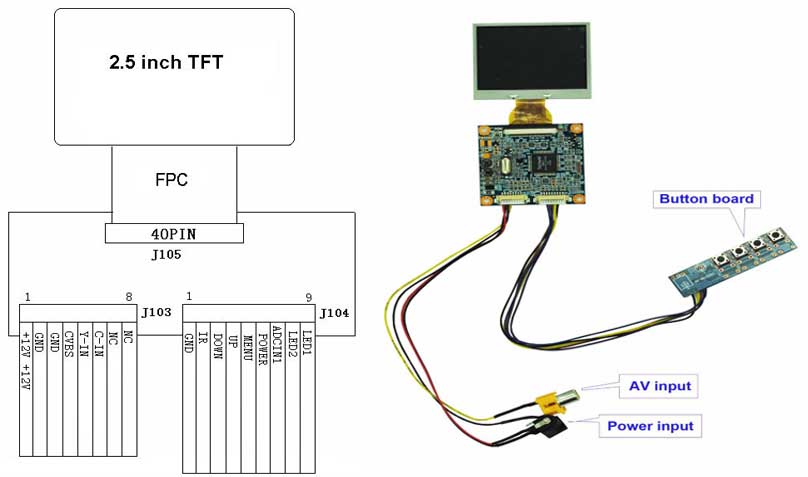

Wiring Diagram

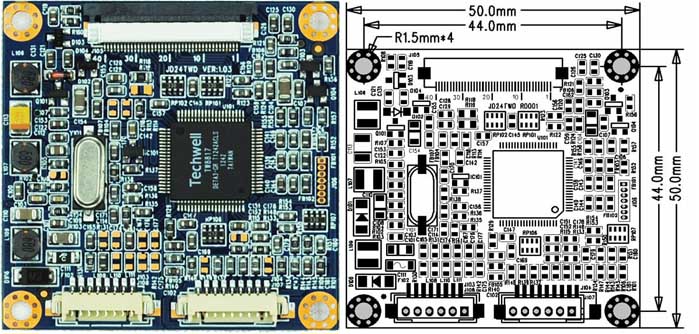

PCBA   (A/D board)





    Notice: Important Safety Instructions

1.1 The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT

LCD, audio amplifier, etc. Please note that your AC/DC adapter's output plug need to match the DC input jack,

the diameter of the jack is 5.5 mm.

1.2 Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.

1.3 Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.

1.4 When assembling it, please use a suitable force; don’t distort the PCB and other components





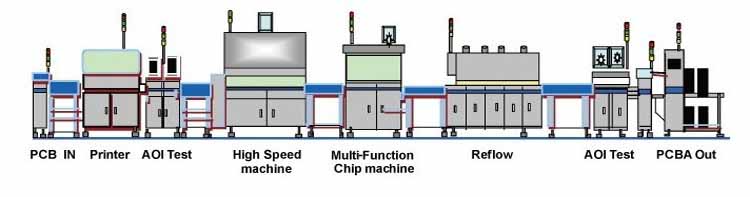

PCB test procedures

Every our products have to progress a very strict and high standard of quility check.
