300W HAWT Wind Turbine With CE ROHS For Sailboat

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

Brief description

300W HAWT Wind Turbine With CE ROHS For Sailboat   is an electrical device that transforms wind energy into electrical energy. It is popularly welcome in many territories due to its high stability, high efficiency, modest design.

Detailed description



Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: SAIAM HAWT Wind Turbine
  • Model Number: SA-300W HAWT Wind Turbine
  • Type: Wind Power Generator
  • Rated power: 300W
  • Peak power: 360W
  • Rated voltage: DC 12V24V
  • Rated RPM: 840 rpm
  • Start-up wind speed: 1.8m/s
  • Working wind speed: 2.2-20m/s
  • Rotor diameter: 1.46m
  • Blade: 3pcs reinforced fiber glass
  • Application: Led street light/roof mount/small cabin/marine etc.
  • Weight: 15.2KG

Packaging & Delivery

Packaging Details: Each 300W HAWT Wind Turbine With CE ROHS For Sailboat was packed into one carton; Packing dimension:108x39x24cm; N.W/G.W: 15.2kg/15.7kgs One 20ft container loading 267 sets
Delivery Detail: 20 working Days (3 days for sample order)

Specifications



1.Easy start-up at 2m/s
2.Anti-corrosion Aluminum body
3.Dual brake systems
4.Compact size and light weight

Product Description

Introduction



300W HAWT Wind Turbine With CE ROHS For Sailboat   is an electrical device that transforms wind energy into electrical energy. It is popularly welcome in many territories due to its high stability, high efficiency, modest design.



Feature

  • Low cut-in wind speed, start to load very early @ 1.8m/s
  • Aluminum body with anti-corrosion treatment for working well in harsh environment
  • Compact size and light weight, easy for transportation and installation
  • Direct drive, gearless, maintenance-free permanent magnet generator
  • Dual brake systems as mechanical yawing and electromagnetic brake
  • Thousands of turbines has been sold and installed in the world
Specification


Performance



     Rated power

300W @11m/s

     Peak power

361W

     Start-up wind speed

1.8m/s

     Working wind speed

2.2-20m/s

     Survival wind speed

35m/s

Rotor



     Rotor diameter

1.46m

     Swept area

1.67m2

     Blade

3pcs reinforced fiber glass

     Blade length

71cm

     Shell material

aluminum alloy

     Rated RPM

840

     Weight

15.2KG

Others



     Generator type

3-phase AC PM, gearless

     Speed regulation & protection

yawing + electromagnetic brake

     Controller rated voltage

DC 12/24V

     Suggested battery capacity

1pcs 150AH/12VDC

     Suggested tower

6m guyed cable tower

     Working temperature

-30-65°C

 Power curve

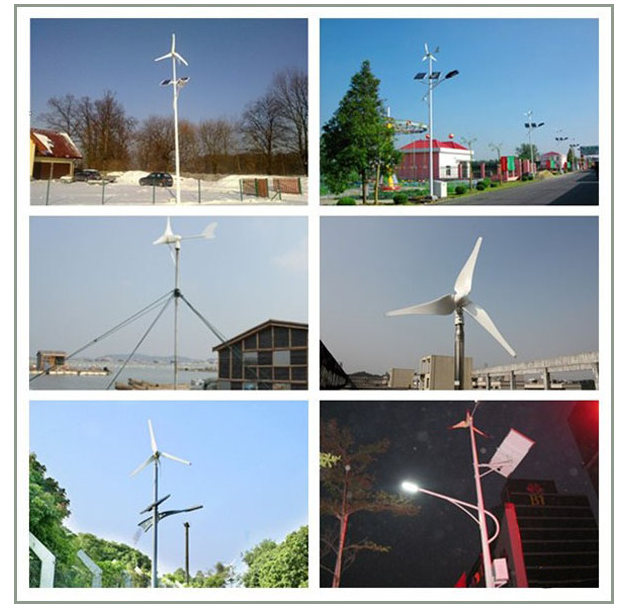

Application

1. Off grid wind solar hybrid power for LED street light and monitoring system

2.Off grid wind power for LED bulb lighting, monitoring system,house,etc.

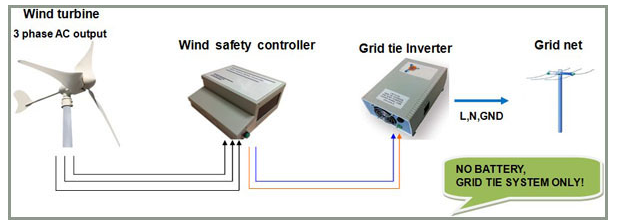

3.On grid wind power system

Packaging & Shipping

Packaging details
