3P Switch disconnectors isolating switch

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

Brief description

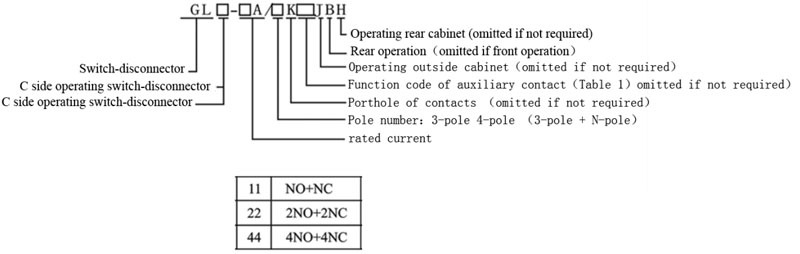

3P Switch disconnectors isolating switch

Detailed description



HDGL-250/3P, HDGL-160/3P series switch disconnectors can take role of infrequent making and breaking circuits, with rated voltage 660VAC, AC 50HZ, or 440VDC, rated current 125A~1600A.

Detail
Normal service conditions
a. The altitude of the site of installation does not exceed 2000m.
b. The ambient air temperature does not exceed +40℃ and the lower limit of the ambient air temperature is -5℃.
c. The relative humidity of the air does not exceed 95%.
d. Protected against explosion.
e. Protected against spraying water.
Note: Please contact with manufacturers if the ambient air temperature larger than +40℃ or between-5~-45℃.

Technical data

Conventional thermal
current Ith A
125 160 200 250 315 400 500 630 1000 1250 1600
Dielectric capacity(V) 5000 5000 5000 5000 8000 8000 8000 8000 10000 10000 10000
Rated insulation voltage Ui A 750 750 750 750 1000 1000 1000 1000 1000 1000 1000
Rated breaking capacity
Icn(A Rms) AC23 380V
1000 1000 1600 1600 2500 3200 3200 3200 8000 8000 8000
Rated making capacity
 Icn(A Rms) AC23 380V
1250 1250 2000 2000 3150 4000 4000 4000 10000 10000 10000
Mechanical durability
(operating cycle)
10000 10000 10000 10000 5500 5500 5500 5500 4000 4000 3000

Jiangxi Hjatis Power Industry Co., Ltd. was founded in 2000, is located in the famous revolutionary base and national scenic 4A class tourist destination- Pingxiang, Jiangxi. The company covers more than 30000 square meters. Including technology building, Research and Development Center, office and standard production workshop. Production line is equipped with advanced testing equipment and system development software. Communication protocol is safe, reliable and stable. We also cooperate with many domestic famous University.

Hjatis group include four production plant: electric power automation products, low-voltage electrical products, high-voltage electrical products, frequency converter, soft starter products etc.The company now have 60 senior engineers, 100 senior technical personnel, 680 production staff.

As a professional manufacturer engaged in intelligent power distribution products. We pay attention to the cooperation with the major domestic science and technology institutions. With advanced equipment and scientific production process, developed high voltage load switch series, high voltage vacuum circuit breaker, low voltage intelligent circuit breaker, double power automatic switching, intelligent universal circuit breaker, CPS control and protection switch, instrument, microcomputer integrated protection device, motor protector and guide rail type electric energy meter series products.

Products achieved "CCC" certification and "CQC" certification authority and related experimental report. The company currently has more than 100 patent certificate, a number of technology products, fully passed ISO9001 international quality management system certification.

The intelligent power distribution products are efficient, accurate, reliable, energy saving, environmental protection. And widely used in metallurgy, petrochemical, electric power, construction, municipal, environmental protection, national defense, water conservancy and other industries.

The company will insist the principle of "survive by quality, technology, development, efficiency". And "all for customer service" business purposes, continuous innovation, accept challenges, to broaden the market, to meet the full range of electric power system demand. Will provide customer the highest quality products with honest and satisfactory service!
