60 percent Alumina Ceramic Tees/Tubes/Bends For Casting

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Place of Origin
    Liaoning, China (Mainland)
  • Type
    Ceramic Parts
  • Application
    Refractory
  • Material
    Alumina Ceramic
  • color
    whiet or yellow

Brief description

FOB Price:US $ 0.2 - 50 / Piece

Min.Order Quantity:1 Piece/Pieces

Supply Ability:10000 Piece/Pieces per Week

Port:Dalian

Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detailed description



Specifications



for gating system during casting
good thermal shock resistance
easy assembly
good compressive strength
mullite raw material






1. Applications

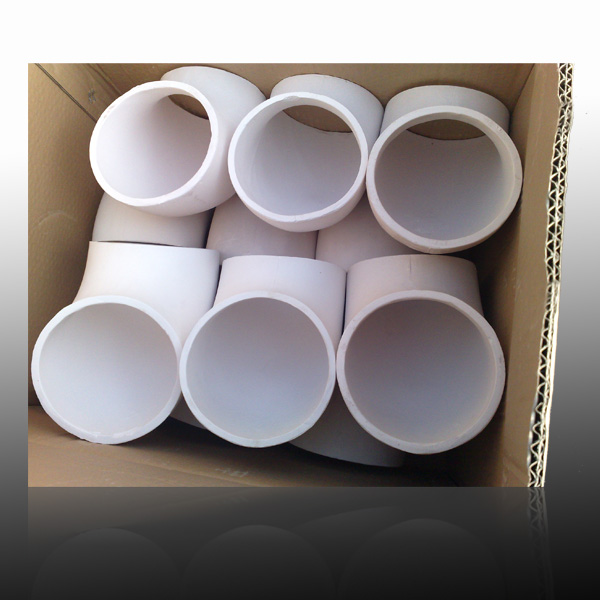

 Alumina ceramic elbow  is refractories consumables used for gating system(running system) during casting, which includes funnels, tubes, bends, tees, etc. as seen from following photos.

They are widely used for casts of tens of KG to hundred tons in cast steel and cast iron foundries, which could effectively improve cast quality, and highly recognised by various foundries.





2.The features of our products



 Lighter strongerm and sawable for ease in assembly (could be sticked together wiht stickers



 Smooth internal surface promoting streamlined flow and reduce contaminant pick-up.



  • accurate and consistent dimensions
  •  reduce casting defects of sand holes, sand-flushing, and sand inclusions.
  • metal erosion resistance much better than traditional refractories

3. Chemical composition



Al2O3 SiO2  Fe2O3 CaO other
>60% <35% <1.5% <1.7% <2%



       Technical parameters

Bulk density

kg/cm3

Cold compressive

strenght

MPa

Thermal expansivity

1000°C K-1

Thermal conductivity



 600°C W/m.k

 Working temperature

°C

>1.9 >15

1.65*10-6

 0.76  1650



4.Sizes

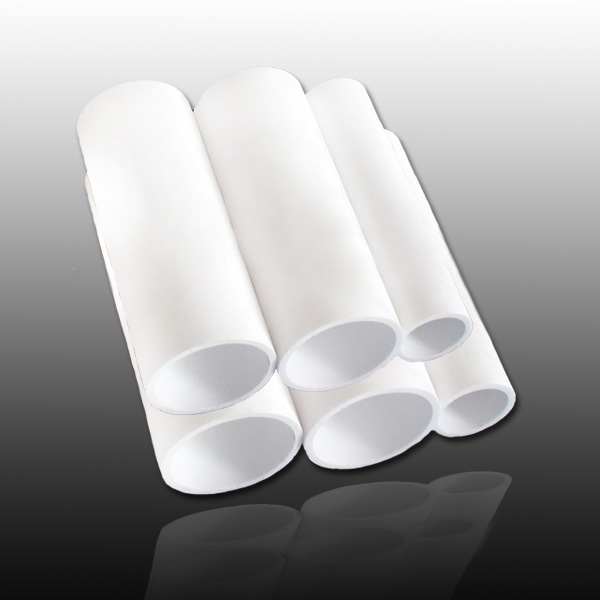

ceramic tube (pipe)



D(mm)

L(mm)

PCS/Carton

30

300

60

40

300

50

50

300

42

60

300

30

70

300

20

80

300

20

100

300

12

125

300

9

150

300

6







5. Ohter products





Our company is a world-class manufacturer, supplier, and engineering contractor for various refractory products. We have been supplied quality magnesite minerals, various refractory bricks and casting ceramic products for metallurgical, cement, petro-chemical, boilers, foundries, and powder industry with our best services and good results to worldwide customers.
Our company has an annual output of 750,000 tons of dead-burnt magnesite, 120,000 tons of medium-grade magnesite, 130,000 tons of caustic calcined magnesite, 60,000 tons of magnesia series(magnesia, Mg-Cr, Mg-Al) bricks, 90,000 tons of magnesia carbon bricks and 30,000 tons of monolithics, three millions ceramic products for casting.

Our magnesite and magnesia series products have passed the evaluation of ISO9001 certification.
Besides, with rich professional experience in refractory field, great support and trust from our customers, we have also exported other minerals (such as bauxite, flake graphite, SiC and fluorspar), clay and alumina bricks, SiC and corundum bricks, graphite electrodes, refractory for con-casting, insulating materials, crucibles, and ceramic products for casting, and holloware for foundry industry.

We warmly welcome worldwide friends for business negotiation, cooperation, and investment. We are sure that our future will be more resplendent with your cooperation and support.
