Main functions:
Used with the airbrush( diameter 0.2-0.5mm),
widely been used in range of art painting, cake painting,
make up industrial etc .
A:Features
1. With AC adapter, DC12V
2. It can work continually as long as it start to work under pressure
3. With 5 adjustable speed
4. With the airbrush holder for your other optional choice .
5. With LED light ,turn it off when you do not use it .
B:Technical Data
BDA60700
Power: DC12V
Max output/min: 12L/min
Voltage input: 12V
Current input: 0.8A
Max pressure : 30PSI / 1.8BAR
Working style : Continually
Speed: 5 adjust speed
Product size: 136*102*66mm
G.W.:844g

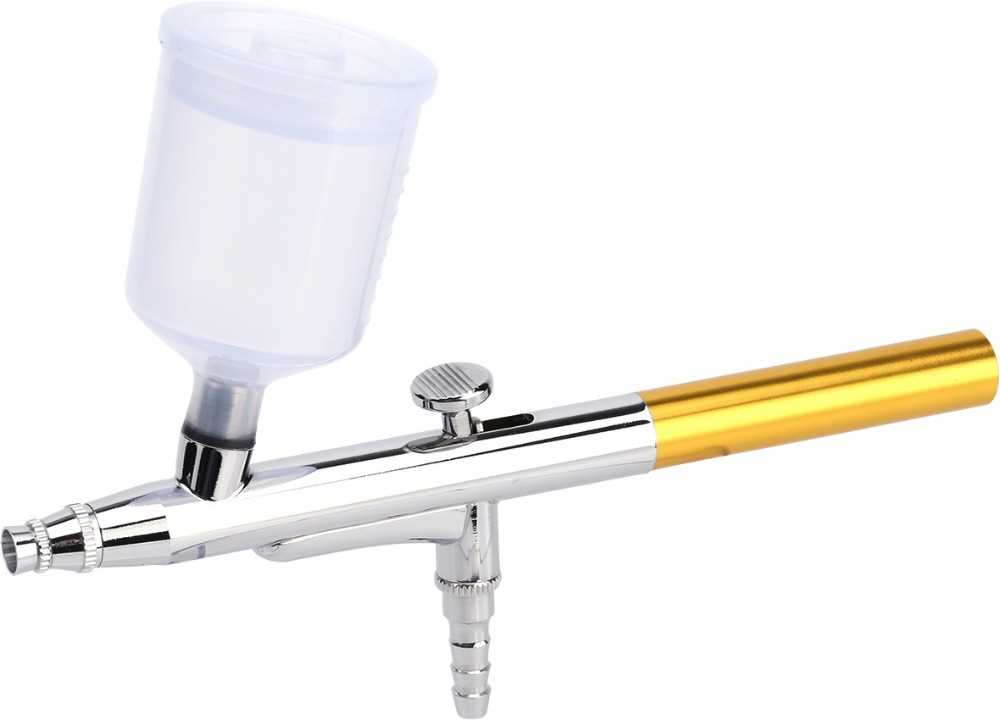

BDA61002
Feed Type: Gravity
Nozzle Dia.:0.2-0.6mm
Body Length:155mm
Working Pressure:15-50PSI
Control: Push-Button
Cup capacity: 20CC/40CC
C:Description
1. With elegant model design.
2. With airbrush holder at each side, can be extended to 3 more each side ,meet the demands of
professional user.
3. Motor with high power, long stable life test .
4. Minimum noise for a better working environment.
5. Adjustable speed control at 5 levels, you can use it freely and easily at different
requirements.Easy to use without professional ways.
D:How to use :
1. Press the button, the red POWER indicator light will be on,so the product is ready to work.
2. Press the power ,THE light of speed”MAX” will be on, If you want to turn it off you can
press the power again;
3. To adjust the speed, please press the button “MODE” and chose the speed you want .
4. If the current speed is “MIN”, it will turn to “MAX” by press the “MODE” again.
5. Recommended to use with single action airbrush.
E:Warning :
1. Don’t change the MODE level Quickly
2. The compressor should be put in dry,clean and Ventilates place
3. Don’t let children contact and play
4. The compressor’s ambient temperature should be in 0~40℃and don’t exposure to sunlight.
5. Please put the airbrush to the holder when you don’t use .

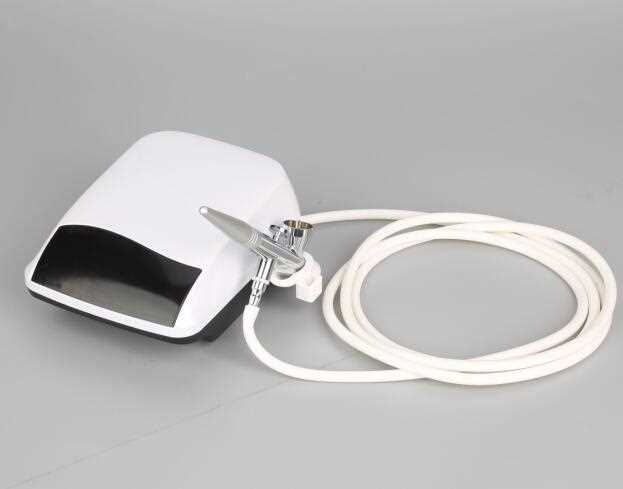

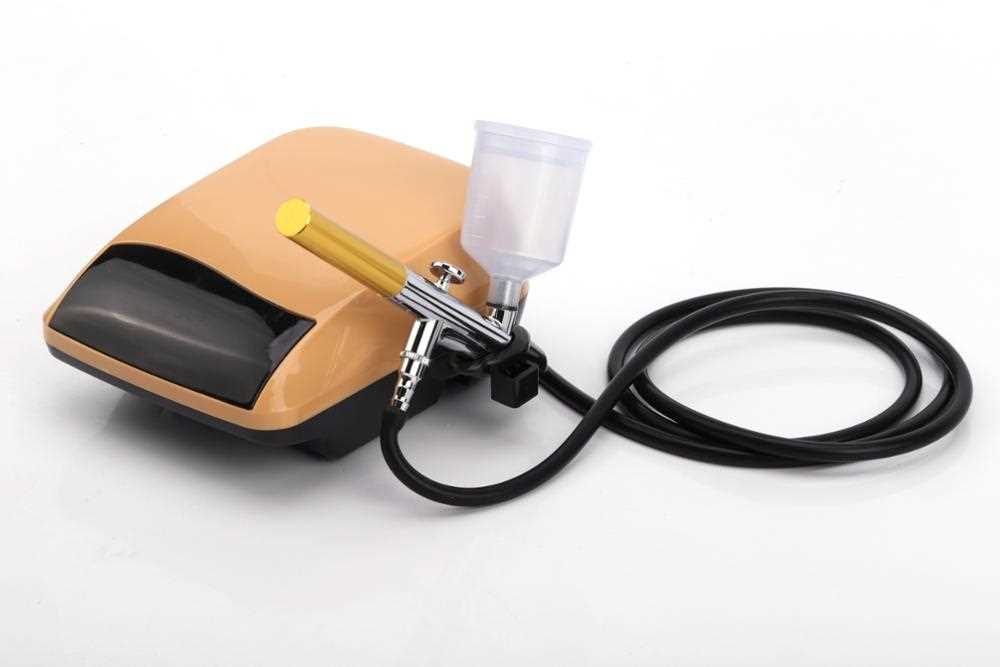

Product Picture
