Alloy Tool Steel Flat Bars

Alloy Tool Steel Flat Bars
  • Alloy Tool Steel Flat Bars
Share to:

Alloy Tool Steel And Die Steel
SKD11/SKD1/SKS3/SKS31/SKD12/SKD5/SKD61/SKD6/SKS8/SKT4 According to standard of GB,ASTM,DIN,JI

Product Details

Parameter

Place of Origin : Liaoning, China (Mainland)
width : 100-810MM
Thickness : 10-300MM
Length : 4000-8000MM
Technics : Hot Rolled

Description

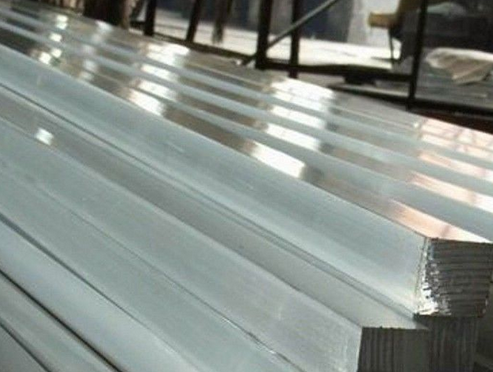

Alloy Tool Steel Flat Bars
GRADES CHEMICAL COMPOSTIONS%
GB AISI JIS DIN C Mn P≤ S≤ Si Cr V W Mo Co OTHER
Cr12MoV D2 SKD11 165CrMoV46 1.45-1.7 ≤0.40 0.03 0.03 ≤0.40 11-12.5 0.15-0.3   0.4-0.6
Cr12Mo1V1 D2   X155CrMoV121 1.40~1.6 ≤0.60 0.03 0.03 ≤0.60 11.00~13 ≤1.10   0.70~1.2 ≤1.00
Cr12 D3 SKD1 X210Cr12 2.0-2.3 ≤0.40 0.03 0.03 ≤0.40 11.5-13
9CrWMn O1 SKS3   0.85~0.95 0.90~1.2 0.03 0.03 ≤0.40 0.50~0.8   0.50~0.8
9Mn2V O2   90MnV8 0.85~0.95 1.7-2.0 0.03 0.03 ≤0.40   0.1-0.25
CRWMn O7 SKS31 105WCr6 0.90-1.05 0.8-1.1 0.03 0.03 ≤0.40 0.9-1.2   1.2-1.6
Cr5Mo1V A2 SKD12 X100CrMoV5 0.95~1.05 ≤1.0 0.03 0.03 ≤0.50 4.75~5.5 0.15~0.5   0.90~1.4
3Cr2W8V H21 SKD5 X30WCrV93 0.3-0.4 ≤0.40 0.03 0.03 ≤0.40 2.2-2.7 0.2-0.5 7.5-9.0
4Cr5MoSiV1 H13 SKD61 X40CrMoV51 0.32~0.45 0.20~0.5 0.03 0.03 0.80~1.2 4.75~5.5 0.80~1.2    1.10~1.75
4Cr5MoSiV H11 SKD6 X38CrMoV51 0.33~0.43 0.20~0.5 0.03 0.03 0.80~1.2 4.75~5.5 0.30~0.6    1.10~1.6
9SiCr     90SiCr5 0.85-0.95 0.3-0.6 0.03 0.03 1.2-1.6 0.95-1.25
Cr06 W5 SKS8 140Cr3 1.3-1.45 ≤0.40 0.03 0.03 ≤0.40 0.5-0.7
Cr2 L3   100Cr6 0.95-1.1 ≤0.40 0.03 0.03 ≤0.40 1.3-1.65
5CrNiMo L6 SKT4 55NiCrMoV6 0.5-0.6 0.50-0.80 0.03 0.03 ≤0.40 0.5-0.8     0.15-0.3   Ni1.4-1.8
9Cr2 L7   100Cr6 0.8-0.95 ≤0.40 0.03 0.03 ≤0.40 1.3-1.70
4Cr52Si SKS41   35WCrV7 0.35-0.45 ≤0.40 0.03 0.03 0.80-1.1 1.0-1.3   2.0-2.5
5Cr52Si S1   45WCrV7 0.35-0.55 ≤0.40 0.03 0.03 0.5-0.8 1.0-1.3   2.0-2.5



Tool Steel Series
Sizes: Thickness:10-300mm.Width:100-910mm. Other sizes and steel grades  are  also available  to be discussed
Application: Hot work mold , Plastic Mold,Mold Pin Cutting, Tools, Punch   Measurement Tools





Company Profile

Dalian Honesty Metals and Minerals Co., Ltd. is an integrated industrial and trading company mainly export all kinds of special steels and some of minerals. With the spirit of honesty and active improvement, we have been widely making fruitful cooperation with domestic and overseas clients and providing them with sincere services on the principle of “Equality, mutual benefits, honoring the contracts and keeping faith” in the business.
The main items we deal in:
The export business for all sorts of special steels.As one of the distributors and sales agents of Dongbei Special Steel Group and some other Chinese special steel mills,we export High Speed Tool Steel,Alloy Tool Steel, Engine Valve Steel, Automobile Steel,Bearing Steel,Spring Steel,Stainless Steel and Superalloys including Wires,Rods,Flats,Strips,Sheets,Tubes,Discs,Rings and Heavy Blocks which can be used for making Saw Blades, Drills,Lathe Tools, Tool Bits, Dies, Bearings, Engine Valves in the fields of aerospace aviation,nuclear power generation,automobile,mechanical,electronic instrumentation, petrochemical industries & etc.
