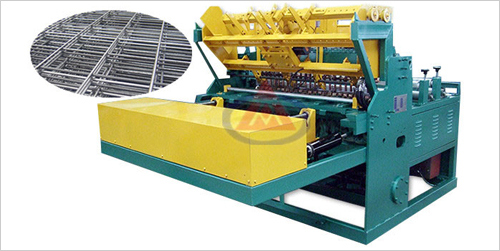

Automatic Steel Wire Mesh Welding Machine WZ-1200B adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.
Wire diameter: : 3.0-5.0mm
Weft spacing: : 50-200mm
Warp spacing: : 50-200mm
Width: : 1200mm
Welding speed: : 50times/min
Welding spots: : 24
Warp form: : continuous
Weft form: : Pre-cut wire
Rated voltage: : 380V
Rated power: : 125KVA×3
Dimension: : 2750×1700×1800mm
Weight: : 2.2T
Function features of Automatic Steel Wire Mesh Welding Machine WZ-1200B：
1.Automatic Steel Wire Mesh Welding Machine WZ-1200B adopts electrical & electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate. It has stable function ,firm welded point and with out welded tracks.
2.The line wires are fed from coils, the cross wires are fed from precut wires.
3.Mesh pulling system adopts elastic tension link and opening positioning mesh, it is easy to regulate the mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only two men can finish the operation.
Products & Application of Automatic Steel Wire Mesh Welding Machine WZ-1200B:
casting floor mesh in the building, construction and so on.
Anping Wanzhong Wire Mesh Products Co., Ltd. is specialized in producing reinforcing construction mesh welding machine, breeding mesh welding machine, steel wire mesh welding machine, wire mesh fence welding machine, automatic steel wire mesh welding machine, 3D wire mesh panel machine, cattle fence machine, chain link mesh machine, welded wire mesh machine and so on.
Our machines are mainly used in the fence for highway, railway, airport, garden, hardware, wire mesh for construction, etc.
Our company has advanced production equipment, first-class technologies and a complete quality management system. With good quality, reasonable prices and excellent services, we have exported our goods to the USA, Mexico, New Zealand, the Middle East, Italy, Turkey, Southeast Asia, Singapore and so on.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, during both the installation and commissioning periods, as well during the entire service life of our products. Highly qualified technicians are available to make service visits to customers and carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by WANZHONG. And Wanzhong will give advice and provide assistance in handling spare parts.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.
