Automatic Wire Mesh Fence Welding Machine WZ-2500B

Automatic Wire Mesh Fence Welding Machine WZ-2500B
  • Automatic Wire Mesh Fence Welding Machine WZ-2500B
Share to:

Automatic Wire Mesh Fence Welding Machine WZ-2500B adopts synchronous control technique, separate-control welding and welding time controlled by PLC digital programming system, once pressing, and separate welding.

Product Details

Parameter

Wire diameter: : 3.0-6.0mm
Weft spacing: : 25-200mm
Warp spacing: : 50-300mm
Width: : 2500mm
Welding speed: : 30times/min
Welding spots: : 51
Warp form: : Pre-cut wire
Weft form: : Pre-cut wire
Rated voltage: : 380V
Rated power: : 100KVA×8
Dimension: : 3100×7900×1900mm
Mesh length: : 6m

Description

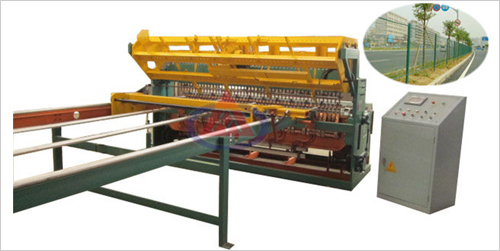

Function features of Automatic Wire Mesh Fence Welding Machine WZ-2500B
Automatic Wire Mesh Fence Welding Machine WZ-2500Badopts synchronous control technique, separate-control welding and welding time controlled by PLC digital programming system, once pressing, and separate welding. The input panel has two types touch screen and button, making operation more intelligent and rational. The welding power is electric power, weft fed from hopper driven by steeper motor, warp fed by brake motor driven car and the mesh pulled by the stepper motor driven car. The warp and the weft are both pre-straightened and pre-cut by the special straightening machine. The biggest advantage of this machine is that there is different weft spacing in the same mesh.

Automatic Wire Mesh Fence Welding Machine WZ-2500B

Products & Application of Automatic Wire Mesh Fence Welding Machine WZ-2500B:
Wire mesh fence (road, railway, mountains), fence, mesh used in construction.


Company Profile

Anping Wanzhong Wire Mesh Products Co., Ltd. is specialized in producing reinforcing construction mesh welding machine, breeding mesh welding machine, steel wire mesh welding machine, wire mesh fence welding machine, automatic steel wire mesh welding machine, 3D wire mesh panel machine, cattle fence machine, chain link mesh machine, welded wire mesh machine and so on.
Our machines are mainly used in the fence for highway, railway, airport, garden, hardware, wire mesh for construction, etc.
Our company has advanced production equipment, first-class technologies and a complete quality management system. With good quality, reasonable prices and excellent services, we have exported our goods to the USA, Mexico, New Zealand, the Middle East, Italy, Turkey, Southeast Asia, Singapore and so on.
Our after-sales service team provides comprehensive support and assistance for WANZHONG's customers worldwide, during both the installation and commissioning periods, as well during the entire service life of our products. Highly qualified technicians are available to make service visits to customers and carry out maintenance.
Spare parts are available, and can be purchased, for all equipment supplied by WANZHONG. And Wanzhong will give advice and provide assistance in handling spare parts.
We would like to cooperate with business friends from home and abroad. For more information, please feel free to contact us.
