Automatic food round tin container machine

Automatic food round tin container machine
  • Automatic food round tin container machine
Share to:

Automatic food round tin container machine

Product Details

Parameter

After-sales Service Provided : Engineers available to service machinery overseas
Warranty : one year
Certification : BV certificate
Voltage : according to customer's demand
Brand Name : xingda
Place of Origin : Jiangxi, China (Mainland)
Type : tin cans making machine production line
Condition : New
Automatic Grade : Automatic

Description

Specification for Automatic food round tin container machine

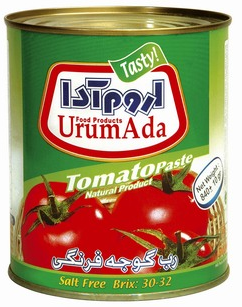

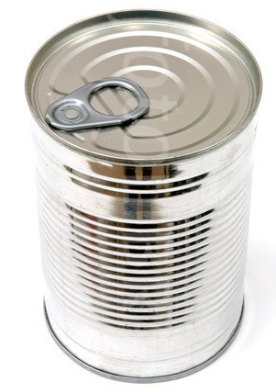

                               Sample cans





1.Main technical parameter:

Max sheet thickness 0.5mm
Diameter Range 30-280mm
Height Range Max 330mm
Usage 0.2-5L metal cans making complete production line
production capacity 30-35pcs/min
floor area needed 10*12M
workers needed 7-8



2,Function:

1)This can making production line is used to make various of metal round cans, such as paint can,oil cans,    glue /adhesive cans,food cans,ink tank, craft cans, etc.

2)if customers want to make other size of cans, just need to change the mould of machines

3we have both automatic&semi-automatic production line for clients' selection.



3. More details of each machine



1)R-40 Guillotine shear



Model R-40
Max sheet width 1050mm
Max sheet thickness 0.5mm
power 1.1kw
size 1500 ×1100 ×1200mm
weight 1400kg





2)CY400-ATautomatic rolling machine



Model CY400-AT
Max sheet thickness 0.5mm
production capacity 30-60pcs/min
Diameter Range 50-400mm
Height Range Max440mm
Power 3kw
Size 1300X730X1330mm
Weight 450kg





3)FN2000-B seam Welder







Model FB2000-A FB2000-B
Diameter range 65-300mm  52-175mm
can Height range 70-420mm
sheet thickness 0.18-0.42mm
production capacity 15cans/min   30pcs/min
overlap 0.4mm
power 15kw
size 1200×1100×1800mm
weight 1300kg





4)ZDF-4 Automatic Flanging Machine





Model ZDF-4
Max sheet thickness 0.5mm
production capacity 30pcs/min
Diameter Range 50-330mm
Height Range 30-400mm
Power 3kw
Size 1500X900X1600mm
Weight 600kg

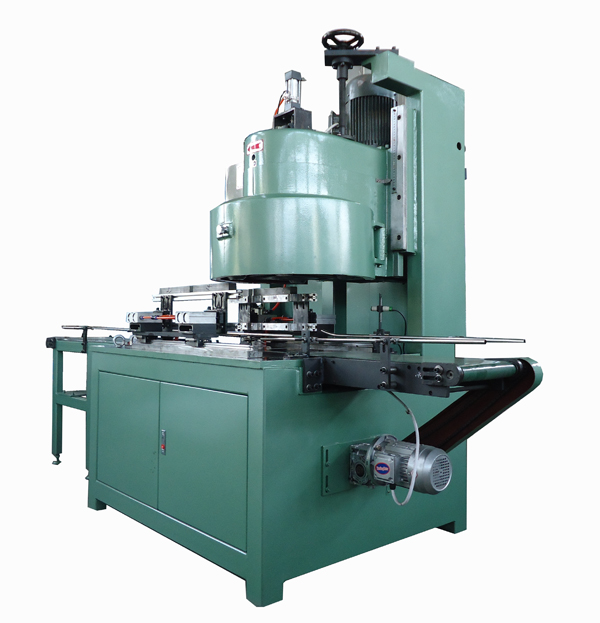

5)ZDA9 Automatic Seaming Machine



Model ZDA9
Max sheet thickness 0.5mm
production capacity 35-40pcs/min
Diameter Range 45-200mm 200-330mm
Height Range 60-400mm
Power 2.2kw
Size 2200X1100X1700mm
Weight 1200kg




6)Automatic Can Body Beading Machine

Model GT7B27
Max sheet thickness 0.5mm
production capacity 35-40pcs/min
Diameter Range 52-183mm
Height Range 60-400mm
Power 3kw
Size 1500X900X1400mm
Weight 700kg

Company Profile

Our company, Jiujiang Xingda Can Machinery Co., Ltd, was established in year of 1994, and always specializes in various of metal Can Making Machines Production Lines till now, Such as 0.2-10L round can making production line; 1-10L square can making production line; 10-24L conical pail making production line; 10-24L round straight pail making production line; 10-24L square can making production line. The metal cans our machines could produce include: paint cans, all-purpose adhesive cans, oil cans, milk powder cans, tea cans, various of chemical cans, food cans, craft cans, etc. Since our establishment, we have provided a large number of these can making machines and equipments for many factories and companies all over the world.
In area of technic, research and development, We have a batch of professional and technical personnel in product development and manufacture and production management, some of our products have applied patent, so we believe our high technology and high quality products can meet the updating requirements of customers.
In after service, we offer 7 days and 24 hours service for our customers, and if customers require, we will dispatch technicists to adjust machines for them.
.We always keep "good business by sincerity and honesty, client's profit in first position" as our management principle. And we have been appraised as a corporation that "pay importance on contract, and keep sincerity" by local government for many times.
Our Company is located at the foot of famous summer resort - Lushan Mountain. Jiujiang Airport, Beijing-Jiujiang Railway and Changjiang River are all around us, so our transportation is very convenient. We warmly welcome you to visit our company and establish business with us
