CNC Plasma Pipe Cutting Machine CPM600

CNC Plasma Pipe Cutting Machine CPM600
  • CNC Plasma Pipe Cutting Machine CPM600
Share to:

Condition: New Place of Origin: Sichuan, China (Mainland) Brand Name: VISTA Model Number: CPM600 Voltage: 380V Rated Power: 35000W Dimension(L*W*H): 14000*2000*2300mm Weight: 6500kg Certification: ISO Warranty: 1 year After-sales Service Provided: Engineers available to service machinery overseas

Product Details

Parameter

After-sales Service Provided : Engineers available to service machinery overseas
Certification : ISO
Weight : 6500kg
Voltage : 380V
Model Number : CPM600
Brand Name : VISTA
Place of Origin : Sichuan,China(Mainland)

Description

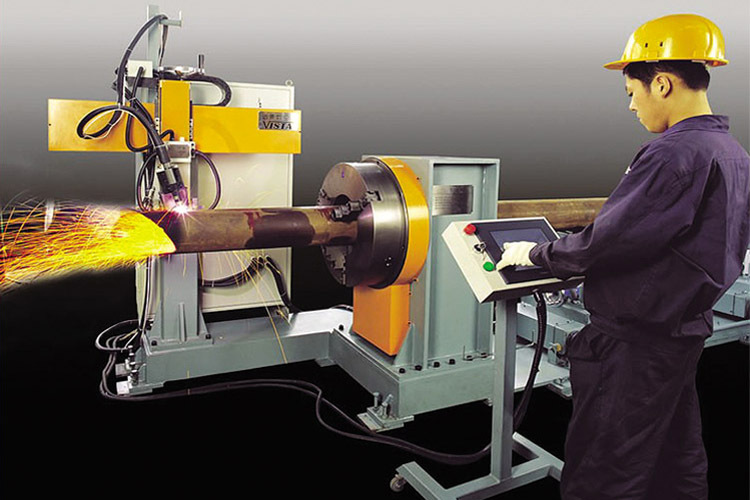

CNC Plasma Pipe Cutting Machine CPM600

Model No.:  CPM600



Features:

1) It is controlled by CNC automatically, and will complete the whole processing automatically with high efficiency once input the relevant data.

2) High precision, the error of positioning and cutting is only±1mm

3) Plasma cutting with three axes linkage.

4) Almost 8-10 times effective of the handwork, with much more excellent precision and quantity, and will not be effected with the welder's ability for it's reliable quanlity.



The comparison between automatic cutting and manual cutting is listed in the following table:



Automatic cutting

Manual cutting

Input data

Following the BS5135 pipe welding instruction

Automatic cutting

Setting out the saddleback type intersection line on the thick paper by 1:1 and cutting off the saddleback type outline on the thick paper, then we cover the outline on the ends of the pipe to mark according it and cut the pipe.

Needing to 815 minutes for the whole process

Needing to 1.52 hours for the whole process



Cutting precision :±1mm

Cutting precision:±3mm



Technical parameter:

Subject

Main parameter

Range of diameter of pipe (mm)

Φ60--Φ600

Range of thickness of pipe wall (mm)

Air-plasma cutting2.325

Need to drill hole first: 17~25mm

Length of work piece (mm)

600--12000

Max weight of work piece (kg)

5000

Number of axis

6 axis

Diameter of chuck via hole( mm)

φ310

Max rotating speed(r/min)

8

Moving distance(left and right)mm

12000

Moving speed (left and right) (mm/min)

10000

Moving distance(up and down)mm

410

Moving speed(up and down) (mm/min)

5000

 distance of cutting torchmm

70

Swing angle of cutting torch

±60°

Champing way of work piece

3 clutches to champ the chuck,and champ manually

Way of cutting

Air-plasma cutting

Crossed angle of cutting

Min 20º  Max 160º

Divided edge angle of steel tube

 Min 30 º Max 150 º

Total power of machine(kw)

≈35

RF Plasma Source

OTC D-12000

Pressure of compressed air (MPa)

0.4--0.6

Overall dimension of machine(L×W×H)mm

14000×2000×2300

Weight of machine (kg)

≈6500





Usage:

CNC Pipe Cutthing Machine is used for the automatic cutting in the junction of the pipe ends. It is widely used in the fields of shipbuilding, chemical industry, petroleum, mechanism, metallurgy, water conservancy, power generation, gymnasium, building installation, tube-type frame structure etc for the cutting of pipe components.
