China Mining Ball Milling Machine , Ball Mill sold to all over the world

China Mining Ball Milling Machine , Ball Mill sold to all over the world
  • China Mining Ball Milling Machine , Ball Mill sold to all over the world
  • China Mining Ball Milling Machine , Ball Mill sold to all over the world
  • China Mining Ball Milling Machine , Ball Mill sold to all over the world
Share to:

FOB Price: US $ 4,500 - 700,000 Min.Order Quantity: 1 Set/SetsSupply Ability: 30 Set/Sets per MonthPort: Qingdao PortPayment Terms: L/C,T/T

Product Details

Parameter

After-sales Service Provided : Engineers available to service machinery overseas
Model Number : MQGg
Brand Name : Xinhai
Place of Origin : Shandong, China (Mainland)
Condition : New
Power(W) : 22-400KW
Weight : 9-12 ton

Description

Packaging & Delivery

Packaging Details: The main machinery is in nude packing,and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.
Delivery Detail: 50 days

China Mining Ball Milling Machine , Ball Mill sold to all over the world

Our ball mill has been sold to all over the world.You can give us your requirement,then we will give you a perfect project.





Grate ball mill primarily consists of six parts, namely, the barrel, feeding part, discharging part, bearing part and lubrication system. Rolling bearings contribute enormous energy saving.



Technical Parameters

Ball Mill Specification — Parameter

model

Cylinder

diameter
(mm)

Cylinder

length
(mm)

Motor

model

Length

(mm)

Width
(mm)

Processing

capacity
(t/h)

Maximum

Ball

volume
(t)

MQGg1212

1200

1200

Y200L2-6

3512

2076

0.17~4.1

2.4

MQGg1224

1200

2400

Y280M-8

5745

2104

0.2~6.25

4.8

MQGg1240

1200

4000

JR117-8

7990

2210

0.34~8.3

7.8

MQGg1515

1500

1500

Y280M-8

5740

3075

1.4~4.5

5.5

MQGg1530

1500

3000

JR117-8

7253

3075

2.8~9

10

MQGg1545

1500

4500

JR127-8

8389

3075

3.5~12.5

12

MQGg2122

2100

2200

JR127-8

7420

4225

5~29

16

MQGg2130

2100

3000

JR136-8

8220

4225

6.5~36

20

MQGg2136

2100

3600

JR137-8

8820

4225

7.5~42

22

MQGg2145

2100

4500

JR138-6

10350

3764

10~45

25

MQGg2230

2200

3000

JR137-8

8220

3864

7.5~45

23.5

MQGg2430

2400

3000

JR138-8

8420

4064

7.2~92

22.5

MQGg2721

2700

2100

JR138-8

8300

4786.4

7.2~84

23

MQGg2727

2700

2700

JR137-6

8901

4786.4

7~110

29

MQGg2732

2700

3200

JR157-8

10509

5150

8~120

32

MQGg2736

2700

3600

JR1512-8

10764

5150

12~145

39

MQGg2740

2700

4000

JR1512-8

10870

5150

12.5~152

41

MQGg2747

2700

4700

JR1512-8

11859

5150

13~170

45

MQGg2836

2800

3600

JR148-8

10964

5350

13~160

41









Product Feature

Ball Mill Specification — Feature

1) The transmission machinery of grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%

2) Adopt groove-type circular lining plate which is instrumental in increasing contact areas of iron balls and ores, and enhances grinding action and ore lifting capacity and decreases energy consumption.

3) Adopt overall frame, which makes it easy for construction and installation.

4) Large discharge opening, high capacity.

5) Equipped with oil-mist lubrication device which guarantees smooth operation of gears.



Application

Ball Mill Specification — Application

It is essential and widely used for grinding coarse particles.

Work Principle

Ball Mill Specification — Principle

Materials are put in cylinder through the feed opening and then thoroughly grinded, because the falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. The discharge opening is equipped with a discharge grate, and the ore pulp horizon of discharge opening is low. These two factors prevent ores from being overly grinded, and iron balls from being dismissed.



Xinhai

Xinhai mining was established in 1993.Adhering to the core concept of technology achievement future and technology as the first productivity, Xinhai pays close attention to technological innovation, and has built 6 professional technology institutes invested heavily to purchase advanced instruments and professional equipment. Xinhai has been the company with the most complete facilities and powerful technology in the domestic processing enterprises..

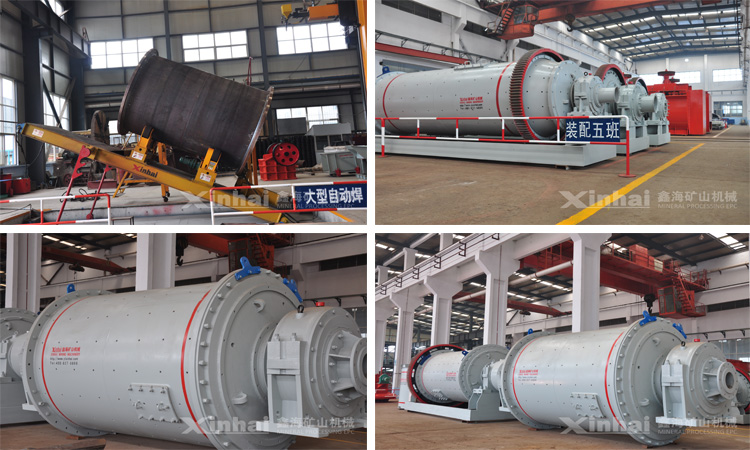

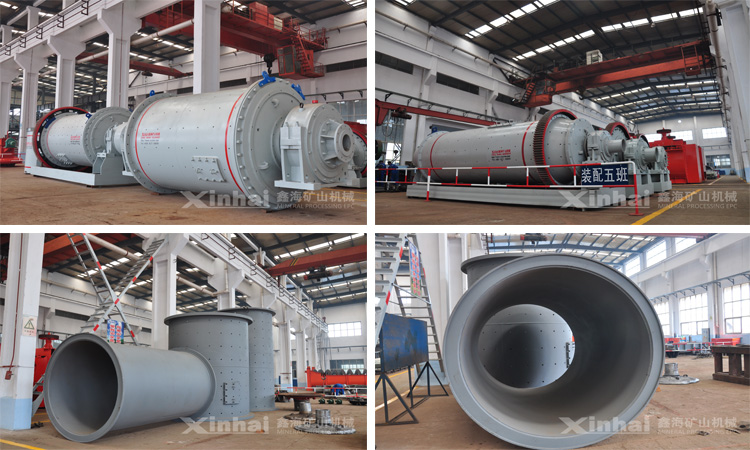

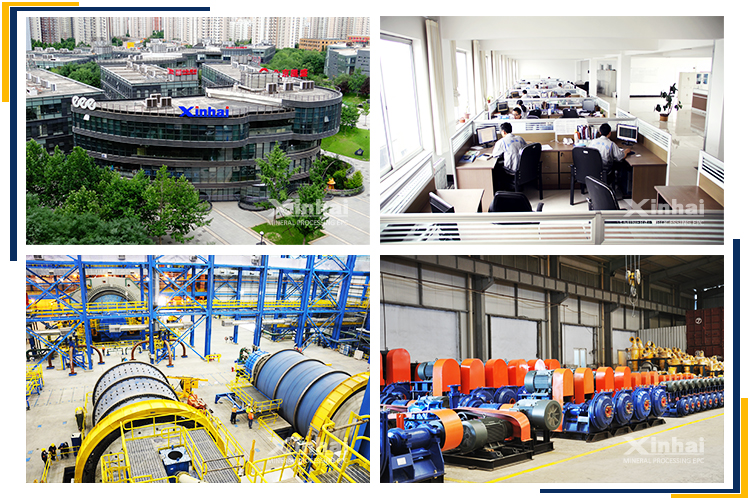

these are our factory and our office.

Technical personnel is doing experiments

Xinhai mining is committed to providing customers with professional, perfect and efficient products and services.Xinhai has projects all over the word,Indonesia,Africa,Armenia,Inner Mongolia Hailai,etc.Including EPC Project and many equipment.

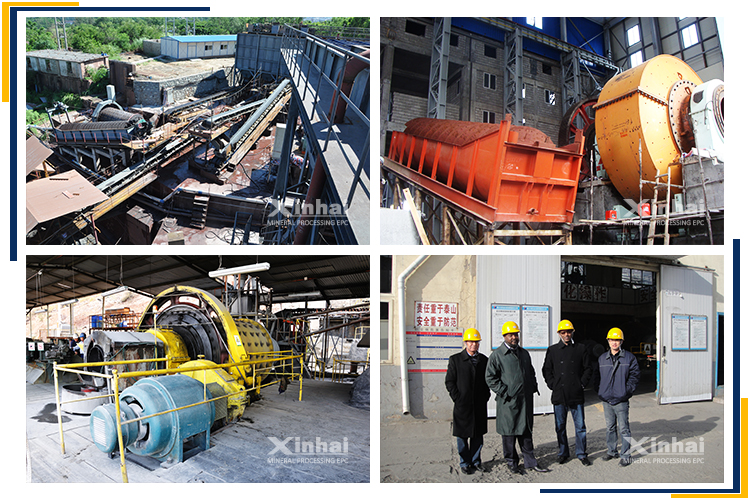

these are our proect and our customers



FAQ

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company

Company Profile

Yantai Xinhai Mining Machinery Co., Ltd belongs to Yantai Xinhai Mining Group founded in 1993, which is a large-scale private mining machinery company with strong comprehensive ability and wide mining application scope involving whose main business is mining EPC/turn-key service including project consultation, beneficiation experiment study, mining engineering design, equipment manufacture, installation and comissioning, personnel training and compliance of production and standard.
Xinhai Mining Machinery Co.,Ltd has strong production capaicty, possessing 152 sets of fabricating machinery mating with variable heavy machinery manufacturing, advanced equipment for welding and assembling and complete main and auxiliary equipment for mechanization of pithead, mineral beneificiation plant and smelting of gold and silver. Xinhai has the most variety of mining machineries in the mining machinery industy current with products reach to more than 600. Xinhai also possess the advanced anti-abrasive rubber production line with its anti-abrasive rubber and rubber products demand exceed supply.
Xinhai Mining Machinery Co.,Ltd has property of import and export with its products sold to more than 30 countries and areas becoming the manufacuting and exporting base of mining machinery in China.
Xinhai owns Installation and Comissioning company formed from four installation teams. Xinhai gains good reputation and praise due to its good technology for site equipment installaion, processing comissiong and site personnel traing as well as its experienced constuction exeprience and strong service guratee.
Xinhai owns a good reputation in mining machinery industry and gains many national certificates such as "New & High Technology Enterpricse in China", "Provincial Contract Trustworthy Enterprise", "Free Inspection Enterprise", "Trustworthy Enterprise of the Bank" and so forth. Xinhai has also has the ISO9001:2000 certificate.
Xinhai Mining Machinery Co.,Ltd advocates "Five Star Service" including "quality, performance, price, period of project and service". "The EPC/Turn-key Service" initiated by Xinhai has become the model of mining machinery.
