1. Description of Gold Washing Machine
Gold Washing Machine, which is also called centrifugal concentrator, is usually used for roughing separation during the gold separation flowchart to recover most of the useful minerals and get rid of most of the dead rocks.
2. Application of Gold Washing Machine
STLB30 Gold Washing Machine is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

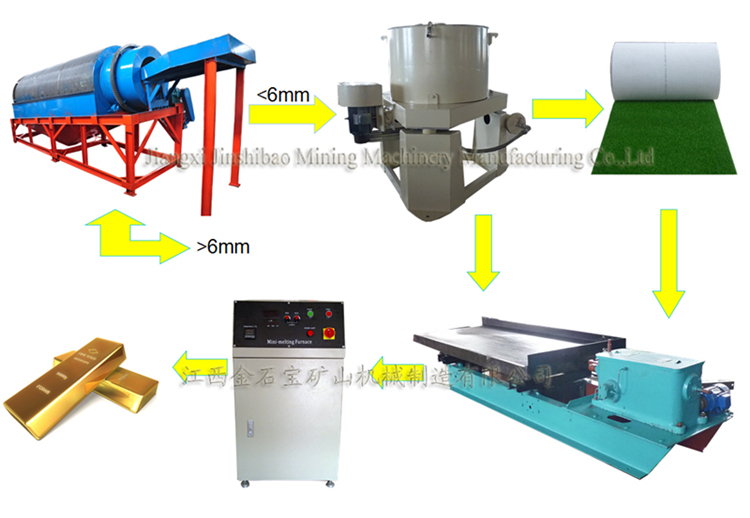

General flow for placer/river/alluvial gold mining

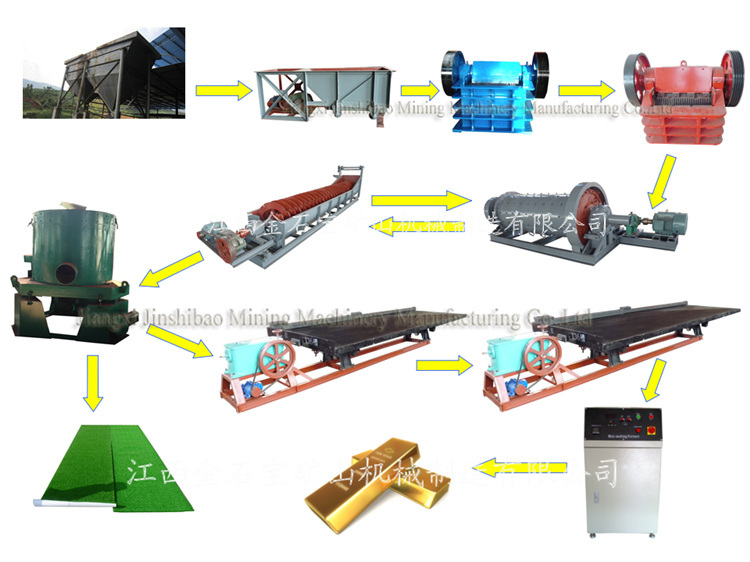

General flow for rock ore
3. Features of Gold Washing Machine
- High Efficiency: STLB60 Gold Washing Machine reach a capacity of 10-20TPH. STBL100's is 50-80TPH.
- Easy to install: Only a small leveled place required. You need to connect the fluilization water and power.
- Easy to adjust: 2 factors will affect the recovery result which are water pressure and feeding size. With the proper operation, it will come to the best result.
- Easy to operate: While finishing the water pressure and feeding size adjustment, you need to fetch the concentrates every 2-4 hours. (Depending on the grade of mine)
- No Pollution: Only water and electric power needed. Low noise! No chemical agent involved.
- Reliable: this STLB 30 Gold Washing Machine is with a simple& tough structure. Its main body is made by strong steel, and the concentrates cone is made by stainless steel

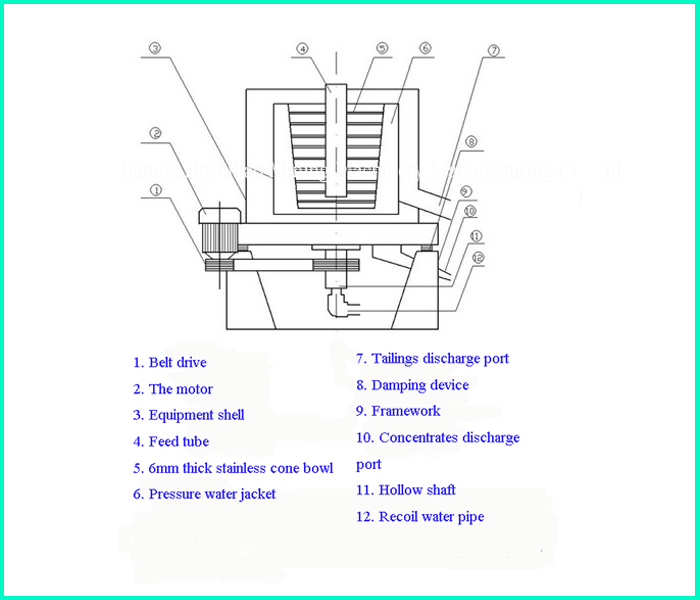

4. Structure of Gold Washing Machine
5. Specification of Gold Washing Machine
Model
|
STLB20
|
STLB30
|
STLB60
|
STLB80
|
STLB100
|
Feeding Capacity (T/h)
|
|
1-2
|
2-3
|
10-20
|
30-40
|
50-80
|
Feeding Density
|
%
|
10-50
|
10-50
|
10-50
|
10-50
|
10-50
|
Feeding Size
|
mm
|
0-4
|
0-4
|
0-5
|
0-6
|
0-6
|
Power Requirements
|
Kw
|
0.75
|
1.5
|
4
|
11
|
18.5
|
Shipping Weight
|
Kg
|
400
|
600
|
1400
|
2200
|
3700
|
Shipping Dimensions
|
mm
|
940×700×1000
|
1200×1250×1250
|
1850×1550×1600
|
2000×1800×1900
|
2300×2000×2300
|

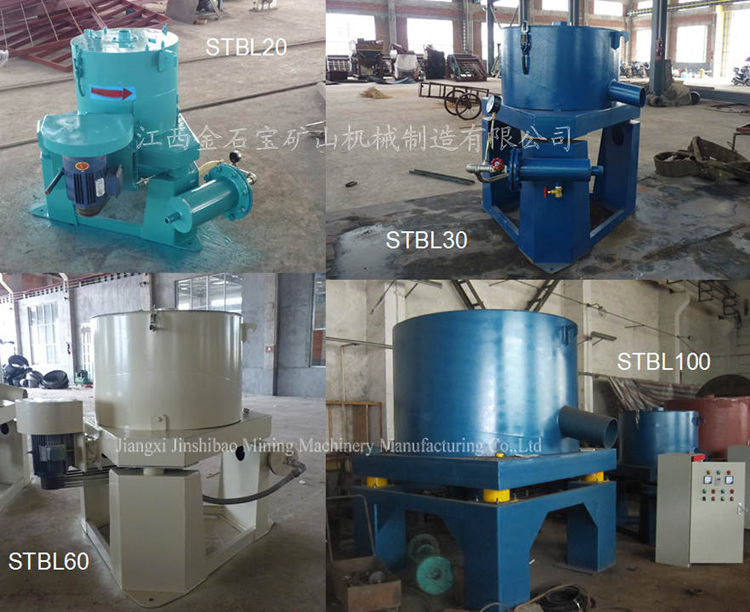

6. Gold Washing Machine' Show:
