Place of Origin:
China (Mainland)
Brand Name:
AIDA
Model Number:
DL-R-1t
Type:
Crane Scale
Power Supply:
3pcs AA
Display Type:
LCD (with backlighting)
Rated Load:
200T
Accuracy:
0.5kg,0.05% for 1-50t, 0.1% for above 50t capacity.
push pull dynamometer:
push pull dynamometer
Body protection:
Aluminum and alloy steel capacities are powder coated.
Battery:
3pcs AA size alkaline batteries, 50 hours radio continuous using.
Display:
25mm 5digits LCD with backlight for easy distant viewing
Shackles:
galvanized finish
Ultimate Load:
400% of capacity.
Gravity regulation:
according to different places value
Functions:
Zero, tare, Low battery warnings, peak hold, overload warning
Package:
Packed with carry case, easy to bring
Digital Dynamometer
Model: DL-R

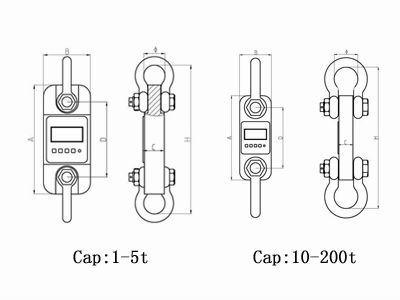

DIMENSIONS(Dimensions shown are nominal and subject to tolerances)
MODEL
|
CAP
|
Div
|
A(mm)
|
B(mm)
|
C(mm)
|
D(mm)
|
φ(mm)
|
H(mm)
|
Material
|
DL-R-1
|
1t
|
0.5kg
|
245
|
112
|
37
|
190
|
43
|
335
|
Aluminum
|
DL-R-2
|
2t
|
1kg
|
260
|
123
|
37
|
195
|
51
|
365
|
Aluminum
|
DL-R-3
|
3t
|
1kg
|
260
|
123
|
37
|
195
|
51
|
365
|
Aluminum
|
DL-R-5
|
5t
|
2kg
|
285
|
123
|
57
|
210
|
58
|
405
|
Aluminum
|
DL-R-10
|
10t
|
5kg
|
320
|
120
|
57
|
230
|
92
|
535
|
Alloy Steel
|
DL-R-20
|
20t
|
10kg
|
375
|
128
|
74
|
260
|
127
|
660
|
Alloy Steel
|
DL-R-30
|
30
|
10kg
|
420
|
138
|
82
|
280
|
146
|
740
|
Alloy Steel
|
DL-R-50
|
50t
|
20kg
|
465
|
150
|
104
|
305
|
184
|
930
|
Alloy Steel
|
DL-R-100
|
100t
|
50kg
|
570
|
190
|
132
|
366
|
229
|
1230
|
Alloy Steel
|
DL-R-200
|
200t
|
100kg
|
720
|
265
|
183
|
440
|
280
|
1362
|
Alloy Steel
|
WEIGHTS
Model
|
DL-R-1
|
DL-R-2
|
DL-R-3
|
DL-R-5
|
DL-R-10
|
DL-R-
20
|
DL-R-30
|
DL-R-50
|
DL-R-100
|
DL-R-200
|
Unit Weight(kg)
|
1.6
|
2.1
|
2.1
|
2.7
|
10.4
|
17.8
|
25
|
39
|
81
|
210
|
Weight with shackles(kg)
|
3.1
|
4.6
|
4.6
|
6.3
|
24.8
|
48.6
|
73
|
128
|
321
|
776
|
Body protection: Aluminum and alloy steel capacities are powder coated.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
Battery: 3pcs AA size alkaline batteries, 50 hours radio continuous using.
Display: 25mm (1″) 5digits LCD with backlight for easy distant viewing.
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Ultimate Load: 400% of capacity.
Operation temperature: -20°C to 50°C
Gravity regulation: The acceleration of gravity can be regulated through red infrared remote controller according to different places value.
Functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration through red infrared remote controller.
Package: Packed with carry case, easy to bring.
