brief description of drilling machine
XY series of small hydraulic rotary drill rig is the industry's most advanced drilling small drill, introduce the foreign models, to improve and finalize the design, after many years of production, the machine adopts hydraulic drive, high construction efficiency, low labor intensity, simple operation, even without any experience of operators, can quickly grasp the basic operation.This machine is mainly used in the exploration, geophysical prospecting, geological, road and bridge construction survey and geotechnical engineering blasting hole, the grouting hole, the structure of concrete engineering quality inspection, such as agricultural water well drilling construction;The machine has compact structure, small volume, light weight, strong decomposability, easy operation, suitable for plain in the mountains of drilling construction.
technical parameters of drilling machine:
Technical parameters
|
drilling depth (m)
|
200
|
drilling diameter(mm)
|
300-75
|
spindle speed (r/min)
|
64,128,287,557
|
main lifting ability to ascend(Kg)
|
1600
|
Derrick effective height(mm)
|
6500
|
Drill rod (mm)
|
42,50,60
|
drilling weight(kg)
|
1150
|
engine
|
model: :ZS1115diesel engine
|
power14.7kw/2200rpm
|
Mud pump
|
rated flow(L/min)
|
160
|
(Mpa)
|
1.3
|
motor-vehicle chassis
|
|
|
driven method
|
4×2
|
motor
|
model
|
4B2-95C40
|
emission standard
|
GB3847-2005,GB17691-2005
|
power(KW)
|
70
|
speed (r/min)
|
3200
|
feature of drilling machine

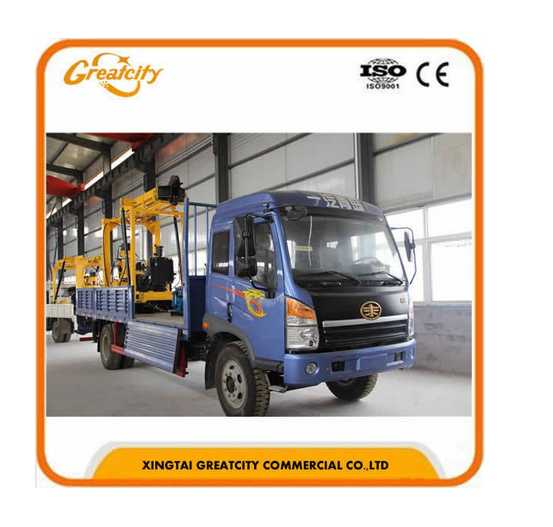

1, XYC - 200 automotive rig for multi-function hydraulic car vertical shaft rotary drilling rig
2, automobile chassis adopts tang dolly card chassis, drill transmission system and winding, mud pump, and other important accessories installed in the chassis, rational layout is compact, easy to operate
3, configuration, BW - 160 type of mud pump, high pressure, large flow, ensure the drilling depth and drilling diameter
4, drill from mobile devices, can be achieved before and after the host's own mobile drilling rig, facilitate the wellhead operation
5, hydraulic drill tower of ups and downs type automatic telescopic rig, safe and convenient operation.
To adapt to the range of driling machine:
The exploration, geological roads and tall buildings foundation exploration, as well as a variety of concrete structure inspection hole, river levee, roadbed grouting hole drilling and grouting directly, civil water well and geothermal central air conditioning, etc.
