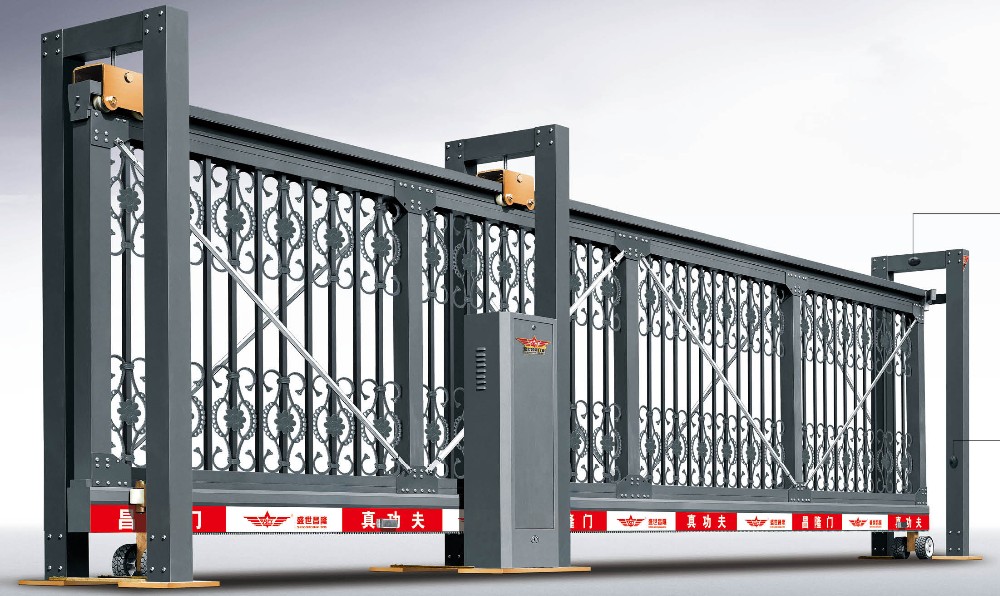

The characteristic and function of Intelligent hanging gate

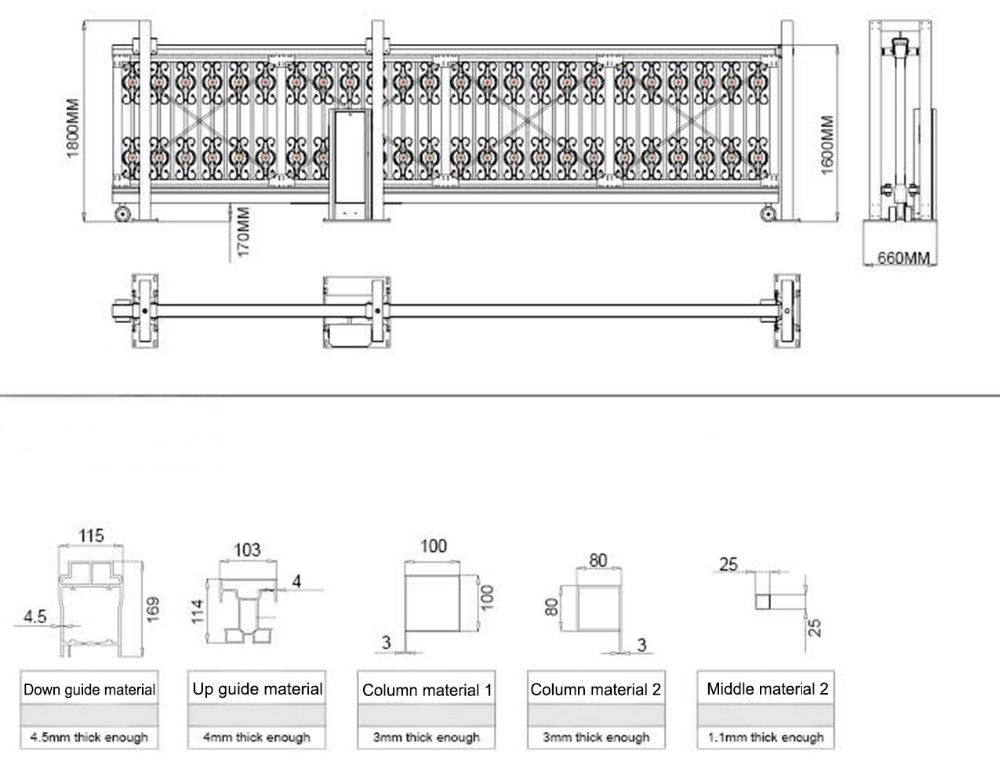

1.Absolutely real materials, the down guide use 4mm thick Aluminum material, baseplate
use 16mm thick Carbon steel plate(the gate length is 12 meter the gate weigh is about 400KG)
2.The down guide has two Guide wheels to make sure that the gate can keep running in a straight line.
3. The down guide has supporting wheels to Supporting the gate, it ensure that
the gate body is not easy to damage when the gate is running
4.There are two Hanging wheels on the gate frame to hanging the gate body, it can keep distance
constant between the gate body and the motor, Prolong motor life.

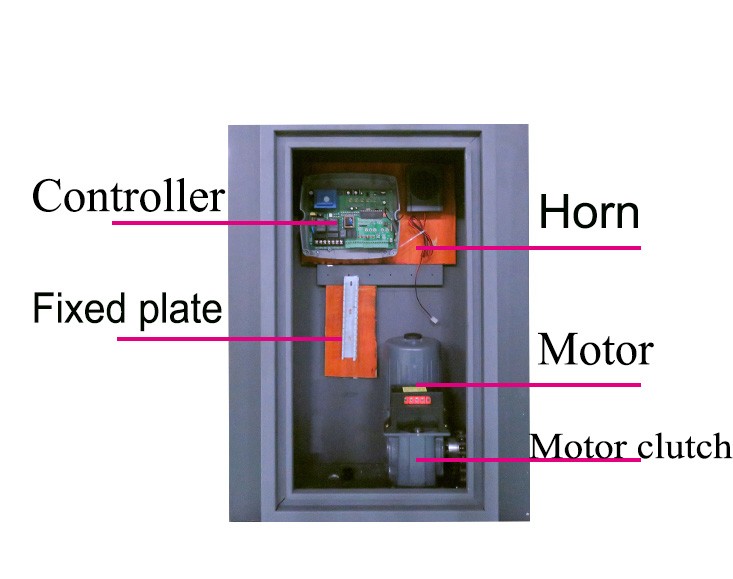

5. Motor with overheat and overload protection device, When the motor exceeds 120℃ it will automatically stop
6. The gate with voice function when the gate is running, it can remind people caution!

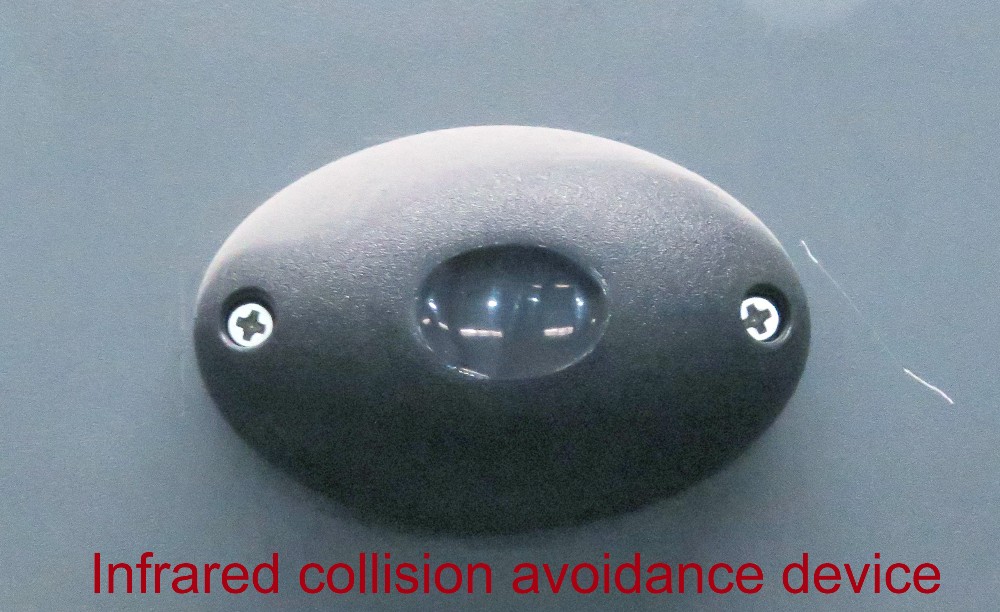

7. The collision proof tape is mounted in front of the gate, the Infrared anticollision device install
between the gate frame
8. There have hand operated clutch device for the gate, Use the clutch key open the gate clutch Manual
push gate let it running when power failure
9. The gate length can be 24 m (Traffic distance:19m)
