1. Product Name: Fire Escape Smoke Mask
Model: Pure Air-SM 30m/60m; Pure Air-OM 30m/60m;
Types: 30m-- Minutes to Breakthrough>30 minutes;
60m-- Minutes to Breakthrough>60 minutes
Brand Name: OEM Brand
Model NO.: MECT1716
2. Brief introduction
According to studies and statistics, Smoke Inhalation is the leading cause of death in fire, but not the fire itself. Most Victims become unconscious within minutes due to the smoke and toxic gases even before the fire get to them. Our hood can help to defense the HCN, CO, HCL and other toxic gases, give user a chance to escape and survive.
3. Technical Specification
(1) Comply with the Ministry of Public Security standard GB21976.7-2012 ) eqv En403:1999=15/30/60min,poison gas and smoke protecting, fireproof, hot-radiation protecting, good sealing property, suitable for all kinds of adult faces.
(2) Object of protection: Carbon monoxide (CO),hydrocyanic acid(HCN), poison smoke and fog, etc.
(3) Mist permeability coefficient<5%, Inhalation resistance<800Pa, Exhalation resistance<300Pa.

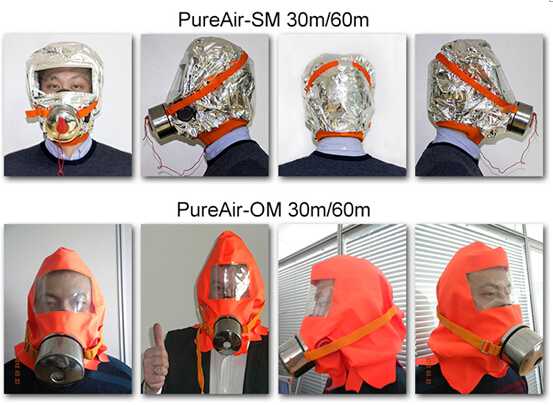

PureAir-SM 30m & PureAir-OM 30m
|
item
|
Test Gas
|
Test Gas Concentration in air(ppm)
|
Breakthrough Concentration
(ppm)
|
Test Gas Challenge
(min)
|
Minutes to Breakthrough
(min)
|
1
|
Acrolein
|
100
|
0.5
|
15
|
>30
|
2
|
HCL
|
1000
|
5
|
15
|
>30
|
3
|
HCN
|
400
|
10
|
15
|
>30
|
4
|
CO
|
2500
|
200
|
15
|
>30
|
PureAir-SM 60m & PureAir-OM 60m
|
item
|
Test Gas
|
Test Gas Concentration in air(ppm)
|
Breakthrough Concentration
(ppm)
|
Test Gas Challenge
(min)
|
Minutes to Breakthrough
(min)
|
1
|
Acrolein
|
100
|
0.5
|
15
|
>60
|
2
|
HCL
|
1000
|
5
|
15
|
>60
|
3
|
HCN
|
400
|
10
|
15
|
>60
|
4
|
CO
|
2500
|
200
|
15
|
>60
|
4. Product parts materials and details
Parts
|
Materials Details
|
Material inside canister filter
|
Hopcalite material which can filter carbon monoxide(CO) and other gases.
The water absorption of dryer (active carbon as carrier) inside filter, which can protect Hopcalite during using.
|
Hood cover cloth
|
flame retardant PVC which is produced by hot melt technics
|
neck belt
|
neoprene rubber; it can improve the air tight capacity of hood
|
Filter canister shell
|
stainless steel.
|
Dust filter
|
PP fiber
|
Breathing valve
|
silica gel
|
Breathing valve
seat&cover
|
flame retardant ABS
|
Visor
|
soft PVC
|
Hood belt
|
flame retardant cotton
|
5. Operation steps
6. Points of Attention
item
|
Attention contents
|
1
|
This product can be used only ONCE.
It can't be used for work Protection, just for personal escape and self-life-saving.
|
2
|
Storage conditions: 0- 40 surrounding, no fire source nearby, no flammable, explosive and corrosive material nearby., well ventilated, keep away from rain and moisture corrosion.
|
3
|
This kind of respirator belongs to storage model. As soon as it is placed in store, it can't be moved, beaten or taken apart at will, otherwise it may lose efficiency.
|
4
|
This kind of respirator can't be used in the atmosphere with less than 17% oxygen.
|
5
|
This kind of respirator is also suitable for children to wear and escape in an emergency, but it needs the help of adult.
|
6
|
If the seal has broken, you must consider that this respirator has been used and can't be used again
|

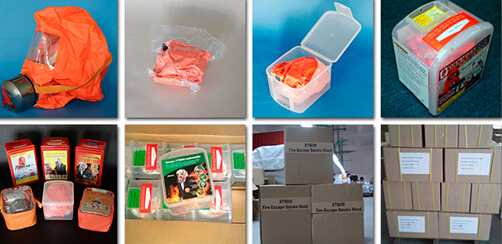

7. Packing & Delivery
(1) Packaging Details:
1pcs fire escape mask /PVC Box,
20 pcs fire escape mask /carton.
Five corrugated Blank carton
Gross Weight:15kg
Gross Weight per Unit:0.7kg
20" container: 8000-10000
40'' container:10000-13500
(2) Shipment:
By Sea OR By Air OR By DHL/TNT/UPS/EMS
(3).Payment
TT 50% in advance and 50% balance before shipment.
8. Production Workshop
