FOB Price: US $ 40,000 - 60,000 / Set | Get Latest Price
Min.Order Quantity: 1 Set/Sets Negotiation
Supply Ability: 20 Set/Sets per Month Negotiation
Port: Shanghai/Chengdu/Any port in China
Payment Terms: L/C,D/A,D/P,T/T,Negotiation
Quick Details
- Type: Other
- Condition: New
- Application: chocolate packing machine, Food packing
- Packaging Type: Foil, aluminum foil
- Packaging Material: Paper, aluminum foil
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V 5OHZ 3P
- Power: 2.8KW
- Place of Origin: Sichuan, China (Mainland)
- Brand Name: WealthRise
- Model Number: WS-SBQS
- Weight: 1000KG
- Dimension(L*W*H): 4M*1M*2M
- Certification: TUV IN ALIBABA
- After-sales Service Provided: Engineers available to service machinery overseas
- Main Name: Food Packing Machine
- Compressed Air: 0.6Mpa
- Special Function: Automatic color code tracking
- Chocolate dimensions: Refer to your requirements
- Chocolate Simple: Refer to your requirements
- Packing Paper: Foil
- Product Color: Refer to your requirements
- Product Sales: All the world
Packaging & Delivery
Packaging Details: |
Food Packing Machine : Wooden Crate Package and Standard International Package Always Ensure Safe to You |
Delivery Detail: |
90 Days (Food Packing Machine ) |
1.Main Instruction (food packing machine)
WS-SBQS450 Spherical Chocolate Packing Machine is a fully automatic packing machine,
designed for spherical and elliptic and other shape products ,especially for chocolates.The
packing machine includes a vibrating feeding hoppr which operates automatically.By using
single layer aluminum foil packaging and packin gin the wrapping manner,this machine can
provide a smooth packing surface.Meanwhile,special products arrangement method reduces
wear of product surface as much as possible during packing process,which makes this model
particularly suitable for the packing of chocolate products.
The maximum packing speed is 450 pcs per minute,which can vary according to different pro-
ducts shapes and packaging materials.
WS-SBQS450 series of packing machines are completely program controlled and integrated
withnecessary sensor subsystems,which not only guarantees stable and reliable performance
of our machines,but also provide our customers best packing experience with a better ,faster
and easier packing solution.
full automatic spherical chocolate candy food packing machine+shake hopper
2.Technical Specification(food packing machine)
Terms |
Description |
Remark |
Total power |
2.8 kW
|
|
Volatge |
380V 50HZ 3P |
according to your need |
Compressed air |
0.6Mpa |
|
Chocolate dimensions(spherical) |
Max diameter:32mm
|
|
(elliptical ) |
Max diameter:35mm
|
|
Max minor diameter |
Max minor diameter:25mm
|
|
*: Dimension limits are NOT strict.
As for other product dimensions or shapes, please check and confirm with us!
|
3.Chocolate Show (food packing machine)
All kinds of spherical chocolate

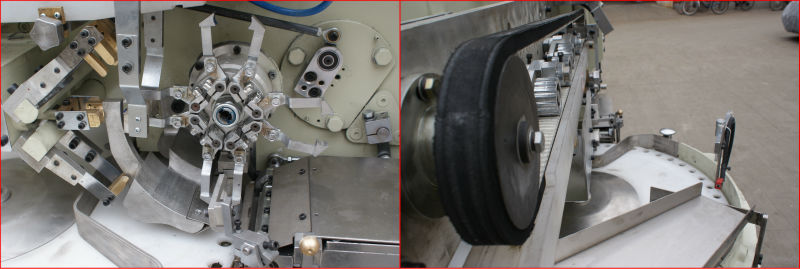

4.Our Advantages (food packing machine)
1.Special Making Chocolate Holder
2.Durable PU Belt
3.Chocolate Plate always clear easily and shape be change
4.Shake Hopper have better shaking function
