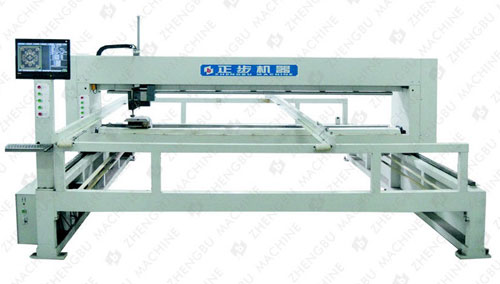

HFJ-26C-2 Computerized Quilting Machine is sewing equipments for producing bedspreads and quilts. The product adopt beam movement, the quilt is resting when the machine is quilting, so it will retrench 40% space.
HFJ-26C-2 Computerized Quilting Machines are sewing equipments for producing bedspreads and quilts. The product adopt beam movement, the quilt is resting when the machine is quilting, so it will retrench 40% space. And it adopt exact spline and import linear guide, guarantee and enhance the quality and stability of sewing.
Characteristics:
O Use industrial control system to keep the machine run reliably, main shaft is driven by inverter, movement of X axis and Y axis by step motor driver.
O Set latest industrial control mainboard, enable to use USB-disk start while other disks in computer can not work, with function of running and furbishing controlling system.
O Capable of copying pattern and other files from USB-disk, and enable to use USB-disk plug and play.
O It’s convenient to copy or delete pattern files by pattern management function.
O With function of pattern viewing and rotating or mirroring pattern, capable of reading patterns of variety forms.
O Capable of counting output, and reboot to zero.
O Both forward and backward modes for retreat quilting, overlap stitch distance can be treated specially, and the stitch length can be changed.
O Trace seeking function makes needle quickly located in its position.
O Display quilting status at any time and prompt operation.
O Two quilting methods: forward and backward, and offer press buttons like forward, backward and needle thread etc.
O Convenient in defining and revising frame range and pattern size with setting and modifying functions.
O Offset function makes it available to join separated patterns accurately.
O Accompanied by change of defining pattern range and space, pattern size scales automatically.
O Supply two sets of pressing-foot device to sewing-head for your option in vary conditions. It’s very easy to change them.
O Single head, single needle, double-line locked style, big rotating shuttle.
O Power waste less than 1Kw.
O Self-detect breaking thread function, needle stays at upper position at pause time and machine stop working while thread breakage automatically.
O Testing system function, can detect the machine working status quickly, it used for repairing machine.
O Main shaft self-detect function effectively avoid the accident of breaking quilt, with protection function against exceeding in limit range.
O Return to original point automatically or manually, it will reduce stops.
