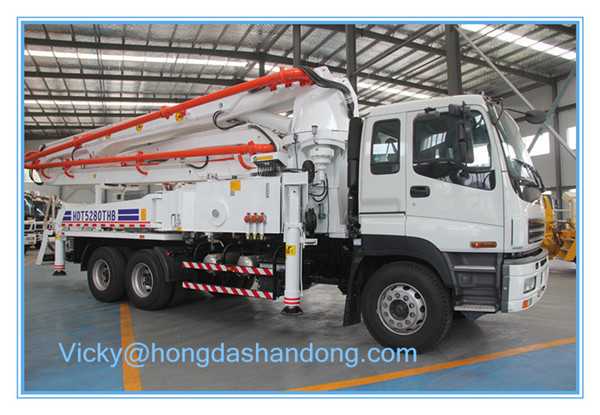

HONGDA High Quality 37m/38m/39m/42m/45m/48m/52m/56m Concrete Pump Truck

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • After-sales Service Provided
    Engineers available to service machinery overseas
  • Warranty
    12 months
  • Certification
    ISO CCC
  • Weight
    18460kg-41000kg
  • Model Number
    37m/39m/42m/45m/48m/52m
  • Brand Name
    TIELISHI
  • Place of Origin
    Shandong, China (Mainland)
  • Condition
    New
  • Pumping Pressure
    8.5
  • Output in theory
    70-150

Brief description

Min.Order Quantity: 1 Set/Sets; Supply Ability: 65 Set/Sets per Month; Port: Qingdao; Payment Terms: L/C,T/T,Western Union.

Detailed description



Concrete Pump Truck
Unit
Parameters
HDT5280THB
-37/4
HDT5351THB
-42/4/
HDT5340THB
-42/4
HDT5380THB
-45/5
HDT5400TH
B-48/5
Main technical parameters in working condition Theoretical Productivity
m3/h
125
125
125
125
Pumping Capacity Index
MPa.* m3/h
586
586
586
586
Max. Concrete Pressure
Mpa
8.5
8.5
8.5
8.5
Hopper Capacity
L
700
700
700
700
Feeding Height
mm
1370
1400
1400
1400
Model of Distributing Valve

S pipe valve
S pipe valve
S pipe valve
S pipe valve
Max. Distributing Radius
m
32.6
38
40.7
43.7
Max. Distributing Height
m
36.6
41.8
44.7
47.7
Max. Distributing Depth
m
25
28
31.3
34.3
Height of Distributing Boom When Stretched
mm
8450
10000
8495
9065
Distance between Front Landing Legs
mm
6200
8500
9550
9780
Distance between Rear Landing Legs
mm
6600
8500
9550
9860
Distance between Front and Rear Landing Legs
mm
7100
8490
9190
9470
Diameter?of Delivery Pipe
mm
125
125
125
125
Length of Tail Hose
m
4
3
3
3
Rotary Range of Distributing Boom   370° 365° 365° 365°
Number of Boom Sections   4 4 5 5
Rotary Angle of Each Boom Section   100/180/
180/240°
92/180/
180/270°
91/180/
180/180/270°
91/180/
180/180/270°
Close-control Distance
m
33 33 33 33
Remote-control Distance m 200 200 200 200
Main technical parameters in
driving condition
Max. Traveling Speed km/h 85 85 85 80
Min. Turning Radius mm 7600 10200 11900 11000
Brake Distance m 7 10 10 10
Approach Angle   24° 16° 25° 25°
Departure Angle   15° 12° 10° 10°
Chassis Model   CXZ51Q
JAPAN
ISUZU
ZZ5437S4667C/
JAPAN ISUZU
CYH51Y
CXZ51Q
JAPAN
ISUZU
CXZ51Q
JAPAN
ISUZU
CHINA
HOWO
CHINA
HOWO
CHINA
HOWO
CHINA
HOWO
Wheel Base between the First and the Second Axle mm 4595 1800/1850 1850 1800
Wheel Base between the Second and the Third Axle mm 1310 4600/
4605
4605 4600
Wheel Base between the Third and the Fourth Axle mm   1350/
1310
1310 1350
Front Tread mm 2065 2022/2065 2065 2022
Rear Tread mm 1855 1830/1850 1850 1830
Max. Engine Power kw 286
(1800r/min)
287
(1800r/min)
287(1800r/min) 273
(2200r/min)
Max Engine
Torque
N.m 1079
(1100r/min)
1863
(1100r/min)
1863
(1080r/min)
1460
(1080r/min)
Max. Grade Ability % 37   37 37
Fuel Consumption Limit L/100km 34   40 40
Overall Dimension
(length×
width×
height)
mm 11900×2490
×3800
13800×2496
×3990/
13800×2490
×3995
13100×2500
×3900
13300×2500× 4000
Full-load Total Weight kg 28000 35000/34500 38000 40000
Notes: According to customers needs, originally-imported JAPAN ISUZU, SWEDEN VOLVO and CHINA SINOTRUCK's EUROPEAN & chassis can be selected and used.



Shandong Hongda Heavy Industry Machinery Manufacturing Co., Ltd. is the subordinate company of Shandong Hongda Construction Group. Founded in 1984, have 12 subsidiary companies. Hongda Group has been a professional manufacturer of construction machinery for 24 years. Our company is located in the beautiful city of Laiyang, Yantai, Shandong Province, China. Laiyang adjoins to Yantai and Qingdao, therefore the freight transportation is quite convenience.

Our total assets amount to about RMB 1.08 billion (US$160 million); our annual sales income exceeds RMB 1.3 billion (US$ 190 million); and we have more than 3,800 employees. Our company covers a gross area of more than 800,000 square meters and a total floor area of about 460,000 square meters.

Our main products are as following: various tower cranes, construction elevators, concrete batchers and mixers, trailer concrete pumps, truck-mounted concrete pumps, truck-mounted concrete mixers, truck-mounted concrete stationary pumps, concrete mixing plant, asphalt mixing plant, soil cement mixing plant, road rollers, rotary drilling rigs, mini excavators and other related products.

Our products have passed the ISO9001 International Quality System Certification, the Quality Assessment and Control, CCC (China Compulsory Certification) and CE certifications. Our company has been awarded many honors such as "National-level High-tech Enterprise", "National-level User-trusted Star Enterprise", and "National-level Credible and Law-abiding Enterprise".

For over 20 years, with our customers' support and trust, our products have been exported to the USA, Germany, Russia, Brazil, Egypt, Dubai, Indian, Lebanon, Saudi Arabia and other countries, over 300,000 users from more than 50 countries.

Looking back to the past and looking forward to the future, only by making progress determinedly, and forging ahead constantly, we can repay our friends for your sincere care and trust.

Your satisfaction is our working standard.
