Product description:
Hammer crusher is primary crushing equipment which could crush the materials from 600-1800mm to 20mm or smaller in once. It is applied to cement, chemicals, electric power, metallurgy and so on industries middle hardness materials such as limestone, slag, carbon coke, coal and so on materials middling and fine crushing.
It is applied to crush brittleness, middle hardness, strength of pressure-resistant is 150MPa each kinds of materials. The hammer crusher feature hammer head adopt new craftsmanship casting, wear-resistant and impact-resistant.
Features:
1. Hammer head, casting with new craftsmanship, wear-resistant and impact-resistant.
2. Adjustable of required particle size as customer requirement
3. Body of machine structure is covered, which solved problem of powder pollution and body ash leaking in crushing plant.
4. Beautiful appearance, compact structure, few consumable part, convenient maintenance and so on advantages.
5.small volume, light, simple structure, easy operation and maintenance, high crushing ratio, low over-crushing ratio, average final product particle size, high capacity
Working principle:
Hammer crusher is crushing equipment utilize impact energy to crush materials. When the chine works, with the driving of motor, rotator rotate fast, materials enter the hammer area, hit with the hammer board, then it will throw to impact device for further crushing, and later whipped back to the hammer area to repeat crushing, repeat this procedure, the material from big size to small size enter 1, 2 and 3 impact mouth repeat crushing until its reach your required particle size and discharge from output opening. To adjust the spacing between impact frame and rotor can change the discharging size and shape of the materials.

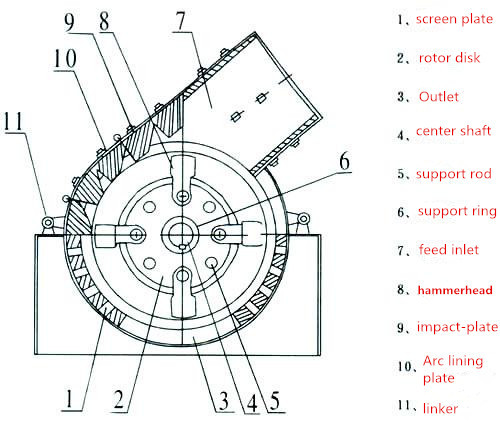

The structure of hammer crusher:
Hammer crusher is consist of body,rotor,hammer head,impact scale board,sieve plate etc.
![]()
Internal of the hummer crusher:
Technical parameters:
|
Name
|
Max. feeding size
|
discharge size
|
capacity
|
Rotor diameter
|
Rotor speed
|
Rotor length
|
power
|
overall dimension
|
Weight
(excluding motor)
|
|
mm
|
mm
|
M3/h
|
mm
|
r/min
|
mm
|
kw
|
mm
|
kg
|
|
PC-400×170
|
50
|
<3
|
1.5
|
400
|
170
|
2000
|
7.5
|
1095×545×803
|
220
|
|
PC-600×400
|
100
|
<15
|
8-12
|
600
|
400
|
970
|
18.5
|
1059×1000×1135
|
1300
|
|
PC-800×600
|
200
|
<13
|
12-15
|
800
|
600
|
970
|
52
|
1515×2586×1040
|
2450
|
The product after crusher finished:
