High quality bearing manufacturers self-aligning ball bearing 1202

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Structure
    Self-Aligning
  • Precision Rating
    P0 P6 P5 P4 P2
  • Model Number
    1202
  • Place of Origin
    Shandong, China (Mainland)
  • Outside Diameter
    35 mm
  • Bore Size
    15 mm
  • Brand Name
    CLUNT

Brief description

FOB Price: US $ 1.2 / Piece Min.Order Quantity: 100 Piece/Pieces Supply Ability: 10000 Piece/Pieces per Month Port: Qingdao Payment Terms: L/C,T/T,Western Union

Detailed description



Specifications

self-alingning ball bearings 1202
1.Less friction
2.Bear high temperature
3.High speed
4.ISO:9001:2000



high quality bearing manufacturers self-aligning ball bearing 1202

Self-aligning ball bearing has two rows of balls and a common sphered raceway in the outer ring.The bearings are consequently self-aligning and insensitive to shaft deflections and angular misalignment of the shaft relative to the housing. Additionally, self-aligning ball bearings generate less friction than any other type of rolling bearing, which enables them to run cooler even at high speeds.This type of ball bearing is recommended when alignment of the shaft and housing is difficult and the shaft may flex.he outer ring has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing center. Pressed steel cages are usually used. Since the contact angle is small, the axial load capacity is low. The permissible dynamic misalignment is approximately 0.07 to 0.12 radian (4 to 7 degrees) under normal loads.

Characteristics of Self Aligning Ball Bearings

  • The self-aligning ball bearing has two rows of balls.
  • A common concave sphered raceway in the outer ring.
  • The center of whose curvature meets that of the bearing itself, so that the inner ring, balls and cage continue to rotate.
  • The self-aligning ball bearing with a tapered bore can be easily fitted on the shaft with an adapter assembly.
  • Have the lowest friction of all rolling bearings.
  • Run cooler even at high speeds.
  • Easy mounting and dismounting.
  • The permissible operating speed is not dependent on the common criteria like heat generation or cage stability and strength.

Applications of Self Aligning Ball Bearings

  • Self-aligning ball bearings are used for commercial ground shafting applications.
  • Since axial load capacity is limited, self-aligning ball bearings are not suitable for applications with heavy axial loads.
  • Furthermore, if an adapter is used on the tapered bore of the inner diameter, installation and disassembly are much simpler and for this reason adapters are often used on the equipment with drive shafts.

Self-aligning Ball Bearings  1202

 Partial Items:

1

model

 1202

2

 Standard bearing materials

 Bearing steel or chrome steel

3

 Packing

 wrapped package or box package or by the requirements of the buyer

4

 Quality Certificate

ISO9001:2000 Genuine brand bearings

5

 Feature

 Low noise, less vibration, high precision and long life

6

 Application

automobile,rolling mill,mine,metallurgy,plastic machine



7

 Seals

Open, Z, 2Z, RS, RZ, 2RS,2RZ, N, ZNR etc

8

 Brand name

CLUNT

9

Size Production

Standard or non standard

10

 MOQ

100 set

11

 Port

Qingdao port Shanghai port

12

 Payment Terms

 1)100% by T/T before delivery

2) 30% Deposit in advance, 70% balance againest copy  of B/L

3)100% Irrevocable L/C At sight

13

 Service

 OEM

14

 Delivery period

 Within 15 days or your requirement

15

 Tolerance level

 ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)

16

 Vibration& Noisy level

 Z1V1, Z2V2, Z3V3

17

 Precision rating

 P0, P6, P5

Product Description

Self aligning ball bearing-1202

Description:
1.The components of the self aligning ball bearings include two rows of balls, the cage, the inner ring, and the outer ring with a common concave sphered raceway.
2.This type bearings are self-aligning and insensitive to angular misalignments of the shaft relative to the housing.
3.The bearings are produced in several design: Open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.
4.The self alignning ball bearings have the lowest friction of all rolling bearings.
5.The bearings are available with a cylindrical bore or, in certain size ranges, with a tapered bore.





Self-Aligning ball bearings  1200 series

Basic Bearing No. Main Dimension Weight   approximate                   kg
cylindrical bore d                                 mm                  D                               mm    B                               mm
1201 12 32 10 0.039
1202 15 35 11 0.051
1203 17 40 12 0.072
1204 20 47 14 0.120
1205 25 52 15 0.140
1206 30 62 16 0.220
1207 35 72 17 0.320
1208 40 80 18 0.415
1209 45 85 19 0.465
1210 50 90 20 0.525
1211 55 100 21 0.705
1212 60 110 22 0.900
1213 65 120 23 1.150
1214 70 125 24 1.300
1215 75 130 25 1.410
1216 80 140 26 1.730
1217 85 150 28 2.090
1218 90 160 30 2.550
1219 95 170 32 3.210
1220 100 180 34 3.820
1221 105 190 36 4.520
1222 110 200 38 5.330







Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings.
Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands: Sweden SKF Bearing, FAG bearings, INA Bearing, Japan NSK Bearings, NTN bearings, KOYO bearings, bearings TIMKEN the United States. Domestic brands: Harbin HRB bearings, Wafangdian ZWZ bearings, Luoyang LYC bearings, and other major brands.
These products are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries.
With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept.

Basic Information

  • Business Type:
  • Main Products:
    Bearings
  • Location:
    Room D4-17, Fenghuangshan Hotel Supplies Market Building, No. 3, Fenghuangshan Road, Tianqiao Dist., Ji'nan, Shandong, China (Mainland)
  • Total Employees:
    51 - 100 People
  • Year Established:
    2010-09-19

Trade Information

  • Top 3 Markets:
  • Accepted Payment Currency:
  • Nearest Port:
  • Average Lead Time:
  • Overseas Office:
    No

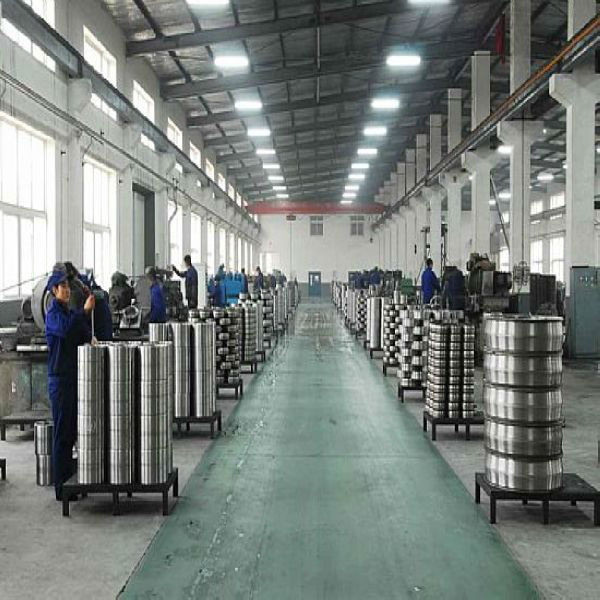

Company Pictures
