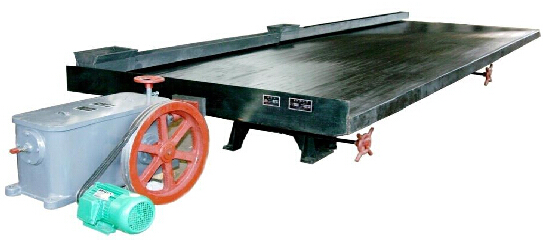

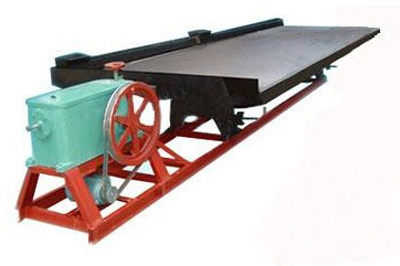

High recovery rate gold mining gravity separator shaking table

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

After-sales Service Provided

Engineers available to service machinery overseas
Condition

New
Model Number

6S Placer gold
Brand Name

Gaoxuan
Place of Origin

Jiangxi, China (Mainland)
Feeding Amount (Ton/day

30 -60

Brief description

Gold mining shaking table is one of most commonly used mineral beneficiation equipment, its effective particles size sorting could be up to 0.037mm limit,the interval grill of table surface is very clear and machine operating is easy.

Detailed description

Gold mining shaking table is one of most commonly used mineral beneficiation equipment,although the processing abilitybased on unit area of shaking table is low,but its effective particles size sorting could be up to 0.037mm limit,the interval grill of table surface is very clear and machine operating is easy.Shaking table could continuously sort concentrate ore,second grade ore and tailings,it is very important ore sorting equipment.Shaking table is made of machine head,motor,adjustingradient device,bed,bunker,water tank,rifle bar and lubrication system.

1. Head Motion

Gold shaking table cast iron to contain an oil reservoir for perfect splash lubricaion.
This feature protects the moving parts, reducing the operating and maintenance cost to minimum.

2. Decks
Gold mining shaking table have three distinct deck designs available.
l Course ore deck is designed for recovering particles size from 0.5 mm to 2 mm;

l Fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;

l Slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

3. Base Support
Installing foundation of shaking table have three styles.

Ordinary foundation	10# Small Channel Steel Support

Technical Parameter

Model Performance		LS4500	LY3000	LY2100	LY1100
Screen Size(mm)		4500× 1850× 1560	3000× 1620× 1100	2100× 1050× 850	1100× 500× 430
Horizontal Slope	Degree	0-5	0-10	0-8	0-10
Feeding Range(mm)	Sand ore	-2	-2	-2	-2
Feeding Range(mm)	slime	-0.074	-0.1	-0.074	-0.074
Feeding Density	%	10-30	10-30	10-30	10-30
Capacity (t/h)	Sand ore	0.5-1.8	0.7-1.5	0.4-0.8	0.1-0.2
Capacity (t/h)	slime	0.5-0.8	0.4-1	0.3-0.5	0.05-0.1
Water consumption	t/h	0.4-0.7	0.3-1.5	0.2-1	0.1-0.5
Motor power	kw	1.1	1.1	1.1	0.55
Dimension (mm) L× W × H		5600× 1850× 860	4075× 1320× 780	3040× 1050× 1020	1530× 500× 800
Deck Weight(kg)		370	310	180	50

Application

Gold mining shaking table is one of the main equipment of gravity concentration. Shaking Table is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome,Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.

The shaker effective recycling granularity scope is 2-0.037 millimeters.

Packaging & Shipping

Payment Terms of Shaker Table
• We usually accept T/T, L/C
• T/T: 30% of total amount as deposit, 70% balance before delivery.
• We will take pictures of finished products to you before delivery.
Way of Packing of Shaker Table
• FCL & LCL export standard container 20/40 feet.
• FCL: Sea-worthy package. Machines are fixed in container; spare parts are packed in wooden boxes.
• LCL: Machines are packed in steel frame with plywood boxes. Customized package is available.
Shipping of Shaker Table
• By sea shipment
MSK/MSC/APL/EMC/PIL and so on
• By air shipment
• By courier express
The lab equipment could be delivered by the courier express, such as UPS, DHL etc.

Payment Terms of Shaker Table

• We usually accept T/T, L/C

• T/T: 30% of total amount as deposit, 70% balance before delivery.

• We will take pictures of finished products to you before delivery.

Way of Packing of Shaker Table

• FCL & LCL export standard container 20/40 feet.

• FCL: Sea-worthy package. Machines are fixed in container; spare parts are packed in wooden boxes.

• LCL: Machines are packed in steel frame with plywood boxes. Customized package is available.

Shipping of Shaker Table

• By sea shipment

MSK/MSC/APL/EMC/PIL and so on

• By air shipment

• By courier express

The lab equipment could be delivered by the courier express, such as UPS, DHL etc.

Company Profile

Shicheng Gaoxuan Bearing Bush Co.,Ltd established in 1958 with a subsidiary corporation named Jiangxi Changyi Mining Machinery factory,located in Ganjiang River source and Wuyi mountain,is a professional supplier in producing and sale kinds of bearing bushes and mining equipments.This factory covers an area of 26000 square meters with a total fixed asset of USD3,000,000 and owns more than 200 sets of mechanical processing machines and 50 technical personnels,with an annual production ability for USD10,000,000.It's one net point of cooperation of the orginal China Equipment General Company of Ministry of Chemical Industry,as well as a fixed cooperation company of Huadong Fittings of Ministry of Metallurgy.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.
