Hot Sale Pet Nonwoven Geotextile Needle Punched Earthwork Nonwoven Non-Woven Geo Textil

Hot Sale Pet Nonwoven Geotextile Needle Punched Earthwork Nonwoven Non-Woven Geo Textil
  • Hot Sale Pet Nonwoven Geotextile Needle Punched Earthwork Nonwoven Non-Woven Geo Textil
Share to:

Mass Per Unit Area: 100-900g/m2 Fiber Type: Staple fiber Color: White, Black, Grey Width Range: 1-6m Length: 50m/100m/120m

Product Details

Description

Groupeve Nonwoven Geotextile with CE Certificate



Description:



Hot Sale Pet Nonwoven Geotextile Needle Punched Earthwork Nonwoven Non-Woven Geo Textil is a special kind of nonwoven geotextile because of its special manufacture method by puncturing the rolling formed layer made of randomly oriented short staple fiber. Our raw material is the top class 100% new PP(Polyproplylene) or PET(Polyester) fiber. The needle punch process involves forcibly entangling layers of loose staple fibre into three dimensional structure by sequentially punching and pulling out barbed needles through the fiber matrix, and forms a strong fabric that retains its dimensional stability, expands the serving year to all the applied project. Because of its proven track record and versatility, Needle Punched, as the most commonly used Nonwoven Geotextile, is widely used in civil and environmental engineering applications like subsurface drainage, roadway separation, railroad stabilization, erosion control, hard armor underlayment, landfill leachate collection, underground retention/detention systems, environmental protection and other projects.



Specification:



Mass Per Unit Area: 100-900g/m2

Fiber Type: Staple fiber

Color: White, Black, Grey

Width Range: 1-6m

Length: 50m/100m/120m



Technical Data for Short Fiber:







Properties   Unit PET100 PET150 PET200 PET250 PET300 PET350 PET400 PET450 PET500 PET600 PET800
Mechanical Properties
Tensile Strength MD KN/m 2.5 4.5 6.5 8.0 9.5 11.0 12.5 14.0 16.0 19.0 25.0
  TD KN/m 2.5 4.5 6.5 8.0 9.5 11.0 12.5 14.0 16.0 19.0 25.0
Tear Strength MD KN 0.08 0.12 0.16 0.20 0.24 0.28 0.33 0.38 0.42 0.46 0.60
  TD KN 0.08 0.12 0.16 0.20 0.24 0.28 0.33 0.38 0.42 0.46 0.60
CBR Plunger Strength      KN 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4.0
Elongation at Yield  MD % 25~100
  TD % 25~100
Hole Size  O90(O95) mm 0.07~0.2
Vertical Permeability   cm/s k*(10-1~10-3),k=1.0~9.9
Identification Properties
Material   / Polyester
Color   / White
Thickness   mm,  0.9 1.3 1.7 2.1 2.4 2.7 3.0 3.3 3.6 4.1 5.0
Weight unit area    g/m² 100 150 200 250 300 350 400 450 500 600 800
Forms of Supply
Roll width   m 1~6
Roll length   m 100



Overall features & benefits:





1. High strength and elongation, due to the use of superior PP or PET fiber, even in the wet state, it can keep sufficient strength and elongation, excellent stability in civil engineering applications.

2. Net structure formed by indefinite fiber guarantees variability and motility.

3. High permeation and No delamination.

4. Superior wearing and abrasion resistant properties: Corrosion resistance, oxidation resistance, acid and alkali resistance and biological degradation resistance.

5. Light weight, makes it convenient in construction operation.

6. Extends performance life of all the applied projects.



Groupeve Needle punched nonwoven geotextile’s role play in engineering functions:

1. Filtration - Excellent air and water permeability, makes the water flow through freely, and effectively current-carrying soil particles, sand, small stones, etc., to maintain the stability of soil and water conservation project.


2. Subsurface Drainage - Superior conductivity performance ensures it can be formed into soil drainage channel, excess liquid and gas discharge of the soil structure, filter soild particles, allows subsurface water to pass to drain system while preventing soil from clogging system.


3. Roadway Separation/ Railroad Stabilization - extends road life by preventing fine subgrade soil particles from migrating and intermixing into the aggregate and ballast base course. The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings, maintains the whole structure and function of each material, so that reinforce load bearing capacity of the structure.


4. Geomembrane Cushioning - effective and low cost protection to membrane from damage by sharp objects, act as a filter to help prevent subsurface soil migration and relieve hydrostatic pressure beneath hard armor erosion control systems.



5. Reinforcement - The high tensile strength performance and resistance to deformation ability of soil, improves the stability of the building structure and soil quality. It can help relieve hydrostatic pressure beneath hard armor such as highways.



6.Protection- It will effectively distribute or transfer the concentrated water pressure, so that to prevent soil from external force damage, prevent the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.

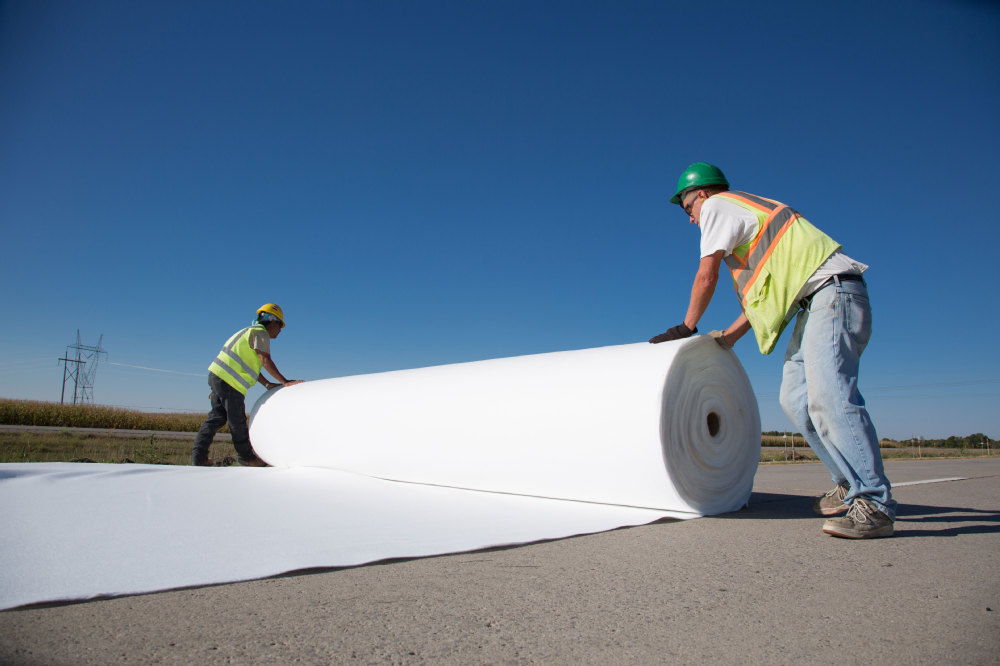

Application photos:

Company Profile

We're Groupeve.

We're one company, and we're delivering infinite material solutions to our customers around the world.



We offer progressive system solutions for world markets through our global agent and end using!

As an honest manufacture, our products are engineered with advanced application knowledge to meet project specifications for transportation,construction, mechanically stabilized earth, erosion control, water and waste management, and shoreline protection/marine structure construction.

Groupeve items increase performance, reduce costs and enable people to achieve the unachievable.

Found in 2000, located in Chengdu City, Sichuan, P. R. China. Groupeve is a professional company dealing worldwide in development, production, trading and operation for new materials. As one of largest companies in southwest of China, Groupeve has strengthened strategic cooperation with both large domestic and overseas companies to seek mutual development.

GROUPEVE Subcompanies:

EVE PACKING MATERIAL CO.,LTD.---Packing Material Factory
YERRON ELITE CO., LTD.---Chemical Factory
EVE GEOSYNTHETICS CO.,LTD.---Geosynthetic Factory
EVE INSULATION CO.,LTD.---Insulation Material Factory
EVE GILSONITE CO.,LTD.---Gilsonite Factory

The products and new materials Groupeve handles have been widely used in different areas of national economic construction, industry and people's livelihood. They have been export to more than 82 countries; our main market is Europe; Middle East, Southeast Asia; North and South America.

For the product quality, Groupeve has own implemented QC system that is in conformance with international standards. All products are inspected in every step during production process. Groupeve also have advantageous transportation and storage service with storehouse in Shanghai, Shenzhen, Qingdao Port.

Groupeve staff is highly professional,well-educated,diligent and hard-working, who are a powerful service team to satisfy every client..

With the sincerity, principle of equality and mutual benefit, Groupeve believes we will build the partner mode for the win-win even for the multiple-win. The final aim is to make contribution for the country and the company.
