JFS Series Open Full Automatic Coalescence-Separation Oil Purifier

JFS Series Open Full Automatic Coalescence-Separation Oil Purifier
  • JFS Series Open Full Automatic Coalescence-Separation Oil Purifier
Share to:

1) Vacuum Oil Purifier 2) Coalescence-Separation techque 3) Dehydration efficiency 4) Purifying lubricating oil

Product Details


Condition: : New
Type: : Suction Filter
Structure: : Vacuum
Place of Origin: : Chongqing
China : Brand Name:
WANMEI : Model Number:
JFS-200 Q : Power(W):
9700 : Weight:
680KGS : Dimension(L*W*H):
230*128*143CM : Certification:
ISO9001 : Warranty:
ONE YEAR : After-sales Service Provided:
Engineers available to service machinery overseas : Certificate:
TUV Rheinland : Brand:
OEM available : Color:

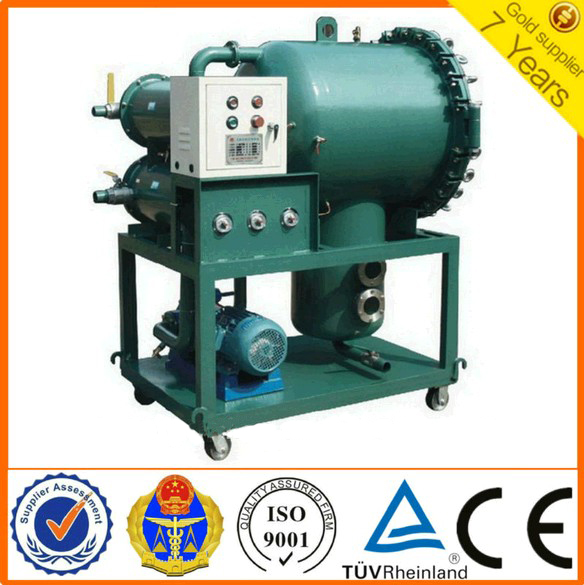

JFS Series Open Full Automatic Coalescence-Separation Oil Purifier
JFS Series coalescence-separation oil purifier
General Description:
Adopted international advanced "coalescence & separation" technology, JFS coalescence & separation on-line oil purifier is an on-line turbine oil purifier developed by Waimei Company, which can be used as oil filtration equipment for breaking emulsification, dehydration and removing impurities for all low-viscosity lubricating oils.
1 .Integrated with precise-filtration and high-efficiency dehydration function, it can break emulsion in the oil and water, removing free water from oil. After treatment, free water content is lower than 80PPM. It can remove solid particulates from oil. The purified oil cleanness complies with NAS7 requirement.
2. It is with high-precise filtration effect, large pollutant containing capacity, long-life filtration element, and high-efficient dehydration.
3. There is no heating, pumping or centrifugal process, so as to lower the cost.
4. There is no effect on oil physical and chemical property so as to extend oil service life.
5. There is an alarm on filter element malfunction and overload of electrical apparatus.
6. There is an automatic water drainage and volume measurement.
7. It’s capable of working onsite and on line.
JFS Series Open Full Automatic Coalescence-Separation Oil Purifier
JFS Series Open Full Automatic Coalescence-Separation Oil Purifier
Application Scope:
The machine is mainly used to purify turbine oil and low viscosity lubricating oil with much water and heavily emulsified. Due to the obvious effect in breaking emulsion and dehydration, it is widely used in the power generation plants and factories. It can work onsite and on line by connecting the machine to the oil container of the generation equipment, without interference of power supply.

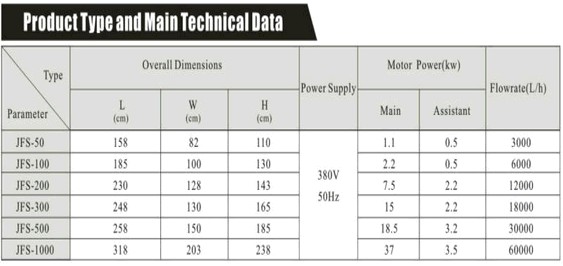

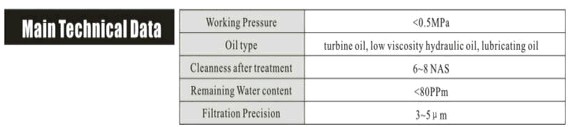

main parameter
A. check and adjust after oil purifier works for a period of time
    1. All the electric control apparatus
    2. Temperature controller
    3. Oil seals and motor couplings
    4. Clean filter elements, check pumps and motors
    5. All the pipes for leaking
B. Clean the motor and change the lubricating grease
C. Check and add specified lubricating oil to vacuum pump,
D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves a

Company Profile

wanmei logo
Chongqing Wanmei Electric & Machinery Co., Ltd. and Chongqing Wanmei Oil Purifier Research Institute are high-tech enterprises for research, development and production of oil purification equipment, automatic water purifier, gasifier and other electrical maintenance equipment. The company has unique capability in scientific research and equipment production, with the help of professional scientific experts, specialists and other technicians. Over 70% of the company's staff members are graduates from various colleges.
The company lays much emphasis on high technology research and applications to practical production, gaining a lot of patented technique certificates, know-how certificates, and ISO9001 international certificate. It is granted with independent right for international trade. "Wanmei" trademark has been registered in the People's Republic of China, and "Wanmei" brand has been widely acknowledged in the world market.
Wanmei has assigned to itself the great task of "saving natural resources and protecting biological environment". It has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, and so forth. Wanmei oil purifier is characteristic for its fine filtration, steady operation, energy saving, auto control and easy maintenance, which has won high praises from our customers all over the world.
Wanmei gives its guarantee to all customers both at home and abroad of reliable quality products, reasonable price and good service. We will serve our new and old customers with "Wanmei technology, Wanmei products, Wanmei quality, Wanmei service and Wanmei credit", and open up a brilliant new prospect together with all our customers.
