LED Membrane Keypad For industrial instrument

LED Membrane Keypad For industrial instrument
  • LED Membrane Keypad For industrial instrument
Share to:

membrane switch with LED
1 Autotype F150+3M467
2 ROHS&ISO9001:2008 ISO14001
3 LED&Female Pin&cutting
4 OEM & ODM&custom

Product Details

Description

membrane switch with LED
1 Autotype F150+3M467
2 ROHS&ISO9001:2008 ISO14001
3 LED&Female Pin&cutting
4 OEM & ODM&custom

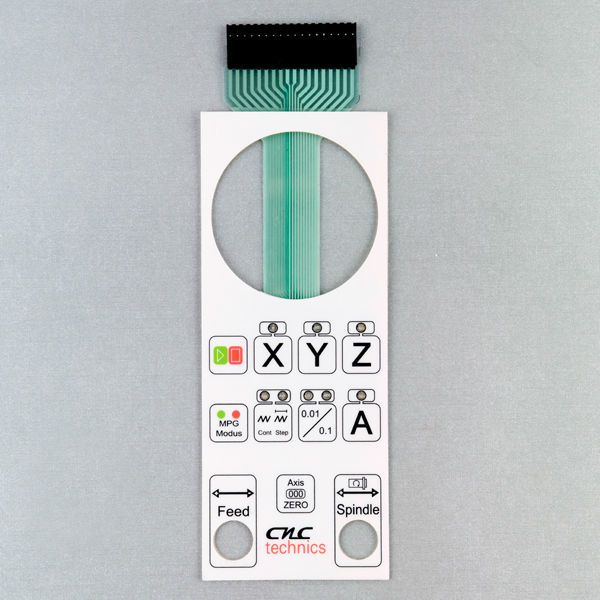

NO.1   Membrane Keypad With LED For Mechaniecal Equipment













NO.2 Membrane keypad performance

Membrane Switch Performance

Electrical Performance

Circuit Grade

35V(DC),100mA,1 W

Loop Resistance

10Ω - 500Ω(According the trace length and materials to confirm)

Insulation Resistance

>100MΩ 250V(DC)

Dielectric Resistance

250VRms(50 - 60Hz/1 min)

Contact Chatter Time

≤5ms

Service Life

flat type≥5 million times

tactile type:≥1 million times

Mechanical Properties

Operating Force

flat type 57-284g (2-10 Oz)

tactile type 170-397g (6-14 Oz)

Switch Stroke

flat type 0.1 - 0.5mm

tactile type 0.6 - 1.5mm

Environmental Parameters

Operating Temperature

-20°C - +80°C

Storage Temperature

-40°C - +85°C

Humidity

40°C,90%-95%,240 hours



















































No.3 Membrane keypad application











No.4 membrane keypad flow chart









No.5 Our partial Customers











NO.6 Pass Certification
