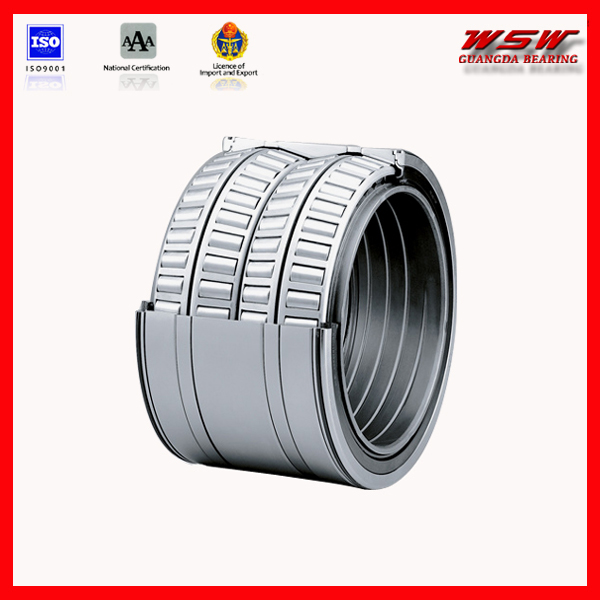

LM286230T-46TD-49T/10/C9YA6 Four Row Taper Roller Bearing 803.803*1130.3*717.551mm

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Structure
    Taper
  • Type
    Roller
  • Brand Name
    wsw
  • Bore Size
    803.803 mm
  • Outside Diameter
    1130.3 mm
  • Model Number
    LM286230T-46TD-49T/10/C9YA6
  • Precision Rating
    P0 P6 P5
  • Seals Type
    None
  • Number of Row
    four row
  • Width
    717.551 .

Brief description

1.tapered roller bearing
2 four-row
3.OEM service
4.competitive price and good quality



Detailed description



Model #

LM286230T-46TD-49T/10/C9YA6

Original #



No. of Row

 four

Type



d(mm)

803.803

D(mm)

1130.3

B(mm)

717.551

W(kg)

2160

T(mm)

717.551

Chamfer(Rmin)



Rotate Speed(r/min)



Dynamic C(kn)

19500

Static Co(kn)

62000

Calculator Factors

e

0.333

Y 2   2.03



Y2

3.02

Y0

1.98

D1



D2



Cage and the material



Operational Performance



Material

GCr15/GCr15SiMn





Raceway Type



Grease
r/min



Oil
r/min



C(mm)



(mm)



Usage

 rolling mill

Related Bearing No.s

352048X2/SM 352052 2097152 352056 2097156 352060 2097160 352064 2097164 352064X2-1/SM 352064X2-2/SM 352072 2097172 97726K 197735ZC 351160 1097760 351160X2/SM 351164 1097764 351164X2/SM 351168 1097768 351172 1097772 351172X2/SM 351176 1097776 351176X2/SM 351180 1097780 351180X2/SM 371180X2B/HCC9 187780S 351184 1097784 351188 351188X2/SM 351192/SM 351196/SM 3511/500X2/SM 3511/530X2/SM 3511/560X2/SM 3511/600X2/SM 3511/630X2/SM 3511/670/SM 3511/670X2/SM 3511/710X2/SM 3511/750X2/SM 352122 2097722 352124 2097724 352126 2097726 352128 2097728 352130 2097730 352132 2097732 352132X2/HA 352132X2/HAC9 352134 2097734 352134/HAC3 352136 2097736 352138 2097738 352138X2-1/SM 352138X2-2/SM 352140 2097740 352140X2/SM 352144 2097744 352144X2/SM 352148 2097748 352148X2-1/SM 352148X2-2/SM 352152 2097752 3G2097952K 350210 97210E 350210X2 97210 350222 97222E 350222X2 97222 97508 352208 97508E 97510 352210 97510E 352211 352212 97512E 97513 352213 97513E 97514 352214 97514E 97515E 352215 97515EK 352215X2 352215X2L1 B97515L 352216 97516E 352216X2 97517 352217 97517E 352217/S0 97517ET 352218 97518E 352218X2 352219 97519E 97520 352220 97520E 352220/YA 97520EK 352220X2-2 97820 352220X2-3 197720 352221 97521E 352221/YA 97521EK 97522 352222














Wafangdian Guangda Bearing Manufacturing Co., Ltd is located at Wafangdian City, in the north of Dalian City, Liaoning Province, which is famous for the birthplace of China industrial bearing and China Bearing City. Dalian City is the center of the rising economic circle around northest Asia, possesses of China second largest free trade port, Dayaowan Bonded Port Zone, with Harbin-Dalian Railway and Shenyang-Dalian Expressway running through the north and the south of China. The convenient traffic condition and superior economic environment and stable political situation provide Wafangdian Guangda Bearing with a good trade platform to the world.
         Wafangdian Guangda Bearing Company is a comprehensive enterprise, which is a  collection of bearing D&R, production and selling, and has passed ISO9001-2000 quality management system certification.  Now it can produce various types of bearings, over 200 series and 5,000 designations or so. For example, deep groove ball bearings, spherical ball bearings, cylindrical roller bearings, self alining roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, spherical plain bearings, car hub bearings, slewing bearings and British series bearings and so on. It can also design and produce various types of non-standard bearings according to customers’ different requirement. Products are widely used in metallurgy, mining, petroleum, chemical industry, machinery, vehicles, papermaking, cement industries etc, and exported to Europ, USA and South Asia market and gained cuctomers’ recognition at home and abroad.
         For years, Wafangdian Guangda Bearing Company has been focusing on internal management, such as technology innovation and development, faithful service and so on. Our company has strong technical strength and rich bearing manfacturing experience by hiring  many senior engineers and bearing design experts, established quality assurance system and formed professional after-sale service team. The advanced technology, complete bearing manufacturing equipment and perfect measuring instruments guarantee the production of quality bearings. Under the principle of quality first and prestige superior, our company is willing to sincerely cooperate with customers from home and abroad to achieve win-win.
         High quality and long life bearings are the pursuit of Guangda Bearing Company. Creating the maximum value for customers,with integrity  and innovation, is the business philosophy ofGuangda Bearing Company.Presently Guangda bearings are being developed fast and compete market with comprehensive quality. Our company is pushing forward modern management in full aspects and builds up own bearing brand “WSW” and will make it known at home and abroad. We’ll try best to provide customers with excellent products and services, to jointly promote the development of the whole world.
