Level gauge

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Model Number
    UFZ-52
  • Brand Name
    Shenyang Beixing
  • Place of Origin
    Liaoning, China (Mainland)
  • Connection
    Flange

Brief description

UFZ magnetic flap level meter

Detailed description



Packaging & Delivery

Packaging Details: Wooden box with poly wrap
Delivery Detail: 5 days after payment confirmed

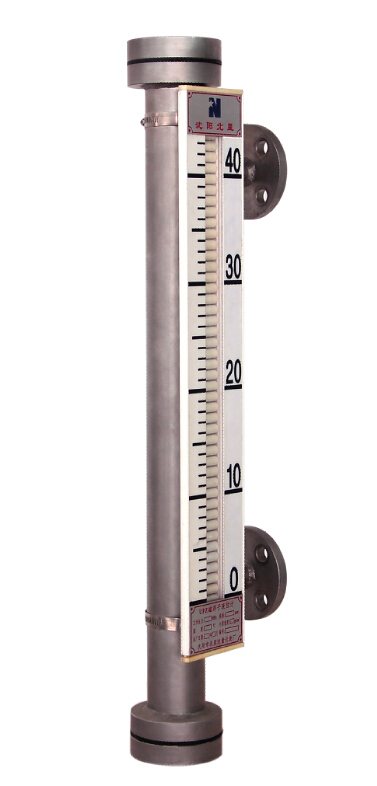

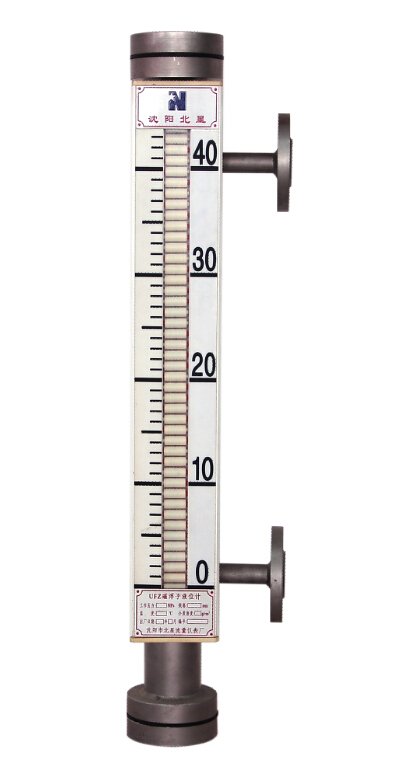

UFZ-52 magnetic flap level meter fitted with magnetic float, using buoyancy principle and magnetic coupling to display the liquid level through the magnetic flap.



The level meter can be fittted with alarm and/or data transmissble sensor, which will output 4~20mA electric signal in order to mornitoring medium level from PC or set light/sound alarm at particular level.



UFZ-52 magenetic flap level meter made from anti-rot material, it also fire and explosion proof. With the large measuring range up to 6 meter, the level meter can be used in many kinds of industry and ocean shipping containers, sewage treatment, oil, gas, acid, soda etc.



Three type of UFZ level meter:

1) Standard: visual megnetic flap reading;

2) Alarming: light or sound alarm fitted at particular level;

3) Data transmissble: data transmitter fitted in order to output 4~20mA signal.



Basic stracture type:

Standard: SS304; Warm keeper; cooling; low temperature; visual reading upper fitting; visual reading lower fitting.



Specification:

Measuring range: 500 ~ 6000mm; (all length available for order)

In accuracy: 10mm

Working pressure: up to 10.0MPa

Medium temperature: - 80~300 degree C

Medium density: greater than 0.45g/cm3

Medium viscosity: less than 1St(10-4m2/S)

Material contacting liquid: 1Cr18Ni9Ti.304.316.Ti

Flange bore: DN20

Flange norms:

PN1.6: HG20592 ~ 20635 - 97

PN2.5, 4.0: HG20592 ~ 20635 - 97 male

PN 6.3. 10.0: HG20592 ~ 20635 - 97 male

Meter weight:

500mm standard: 12KG, then 1.2KG will be added on for every 100mm;

500mm warm keeper: 15KG, then 1.5KG will be added on for every 100mm.

for 6000mm weight: standard: 78KG, warm keeper: 97.5KG.



Alarming system:

Inaccuracy: 5mm

Output: 4~20mA electric signal

Contact capacity: 24V.DC, 0.3A

Working life: greater than: 105 times

Outlet: M20X1.5 inner thread

Transmissbale distance: 3Km

Environment temperature: -40 ~ 60 degree C

Explosion proof level: Explosion proof, d II BT1-4, Certificate number: GY95340

Case protection level: IP65

Weight: 0.5Kg



Transmitter:

Range: 0 ~ 6000mm

Inaccuracy: 10mm

Output signal: 4~20mA. DC

Load impedance: 550omega (24V.DC with power supply)

Power: 24V. DC

Outlet: M20X1.5 (inner thread)

Environment temperature: -40 ~ 60 degree C

Explosion proof level: d II BT1-4,ib II BT4

Case protection level: IP65 Certificate number: GYB95340
