Linear Bearing LM8UU Lowest price Linear Ball bearing LM6UU Linear motion bearing

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Type

Linear
Place of Origin

Shandong, China (Mainland)
Model Number

LM6UU LM8UU
Precision Rating

P0 P6 P5 P4 P2
Brand Name

CLUNT/OEM
Hardness

HRC59-63
Function of linear bearing lm8uu

High temperature resistance, carrying capability
Manufacturing experience

12 years

Brief description

FOB Price: US $ 0.35 - 25 / Piece Min.Order Quantity: 10 Piece/Pieces Supply Ability: 100000 Piece/Pieces per Month Port: Qingdao Payment Terms: L/C,T/T,Western Union,Paypal, Secure Payment

Detailed description

Packaging & Delivery

Packaging Details:	Plastic bag+Brand color box+Outer carton+Wooden Pallet
Delivery Detail:	2-5 days of stock, 15-50 days for OEM

Lowest price Linear Ball bearing Linear Bearing LM8UU Linear motion bearing

Product Description

What is linear bearing?

Metal linear bearing is a low-cost production of linear motion system for unlimited travel with the cylinder axis. Since the ball bearing point contact with the shaft, so use the load is small. Minimal friction ball rotation, thereby to obtain smooth movement precision. Plastic linear bearings are self-lubricating properties of a linear motion system, the biggest difference is that the metal in the metal linear bearings linear bearings are rolling friction, is the point contact between the bearing and the cylinder axis, so this suited for low load speed movement; while plastic linear bearings are sliding friction is between the bearing surface contact with the cylinder axis, so this low-speed movement for high loads.

Linear bearings are used in conjunction with hardened linear drive shaft. For infinite linear motion systems. Load the ball and quenching transmission shaft because it is the point contact, allowing the load is small, but linear motion, friction smallest, high precision, fast movement.

What's the feature of your linear ball bearings?

The linear ball bearing (also called ball bushing or shaft guiding) consists of a polymeric cage with raceway segments made of hardened steel to guide the ball sets within the complete system. Recirculating balls provide unlimited stroke at low friction movement.

1.Smooth movement,low friction,high rigidity and long life.

2.We can make non-standard linear bearing according to clients samples or drawings.

3.Prompt delivery and OEM service.

4.Nice appearance,complete product system.

What are the models you can supply?

Bearing number	Dlmensions mm
		d	D	L	B	W	D1
LME5	4	5	12	22	14.5	1.1	11.5
LME8	4	8	16	25	16.5	1.1	15.2
LME12	4	12	22	32	22.9	1.3	21
LME16	4	16	26	36	24.9	1.3	24.9
LME20	5	20	32	45	31.5	1.6	30.3
LME25	6	25	40	58	44.1	1.85	27.5
LME30	6	30	47	68	52.1	1.85	44.5
LME40	8	40	62	80	60.6	2.15	59
LME50	6	50	75	100	77.6	2.65	72
LME60	6	60	90	125	101.7	3.15	86.5
LME80	6	80	120	185	133.7	4.15	116
LM6	4	6	12	19	13.5	1.1	11.5
LM8	4	8	15	24	17.5	1.1	14.3
LM10	4	10	19	29	22	1.3	18
LM13	4	13	23	32	23	1.3	22
LM16	4	16	28	37	26.5	1.6	27
LM20	5	20	32	42	30.5	1.6	30.5
LM25	6	25	40	59	41.4	1.85	38
LM30	6	20	45	64	44.5	1.85	43
LM40	6	40	60	80	60.5	2.1	57
LM50	6	50	80	100	74	2.6	76.5
LM60	6	60	90	110	85	3.15	86.5

What are the suffixes and profixes mean?

"LM" metric standard type linear bearing
"LME" inch standard type linear bearing

"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing

*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing

Linear bearing linear ball bearing lm8uu

What are Hot models you have?

LM6UU	LM6UU-OP	LM6UU-AJ	LME5UU	LM6LUU	KH0622
LM8UU	LM8UU-OP	LM8UU-AJ	LME8UU	LM8LUU	KH0824
LM10UU	LM10UU-OP	LM10UU-AJ	LME12UU	LM10LUU	KH126
LM12UU	LM12UU-OP	LM12UU-AJ	LME20UU	LM12LUU	KH1228
LM13UU	LM13UU-OP	LM13UU-AJ	LME25UU	LM13LUU	KH1428
LM16UU	LM16UU-OP	LM16UU-AJ	LME30UU	LM16LUU	KH1428
LM20UU	LM20UU-OP	LM20UU-AJ	LME40UU	LM20LUU	KH1630
LM25UU	LM25UU-OP	LM25UU-AJ	LME50UU	LM25LUU	KH2030
LM30UU	LM30UU-OP	LM30UU-AJ	LME60UU	LM30LUU	KH2540
LM35UU	LM35UU-OP	LM35UU-AJ		LM35LUU	KH3050
LM40UU	LM40UU-OP	LM40UU-AJ		LM40LUU	KH4060
LM50UU	LM50UU-OP	LM50UU-AJ		LM50LUU	KH5070
LM60UU	LM60UU-OP	LM60UU-AJ		LM60LUU
LM80UU	LM80UU-OP	LM80UU-AJ
LM100UU	LM100UU-OP	LM100UU-AJ

What is the advantage of your service? linear ball bearing

1.High quality, low cost,
2.LM LME KH, all kinds of linear bearing series are available,
3.Short delivery time(Generally 2-5 days of stock after payment, 15-50 days if do OEM,
4.After sale service(2 years guarantee time, if bearings are not consistant with contract which can be changed or refund),

5.OEM/Customized service is provided as demands.

linear bearing linear ball bearing lm8uu

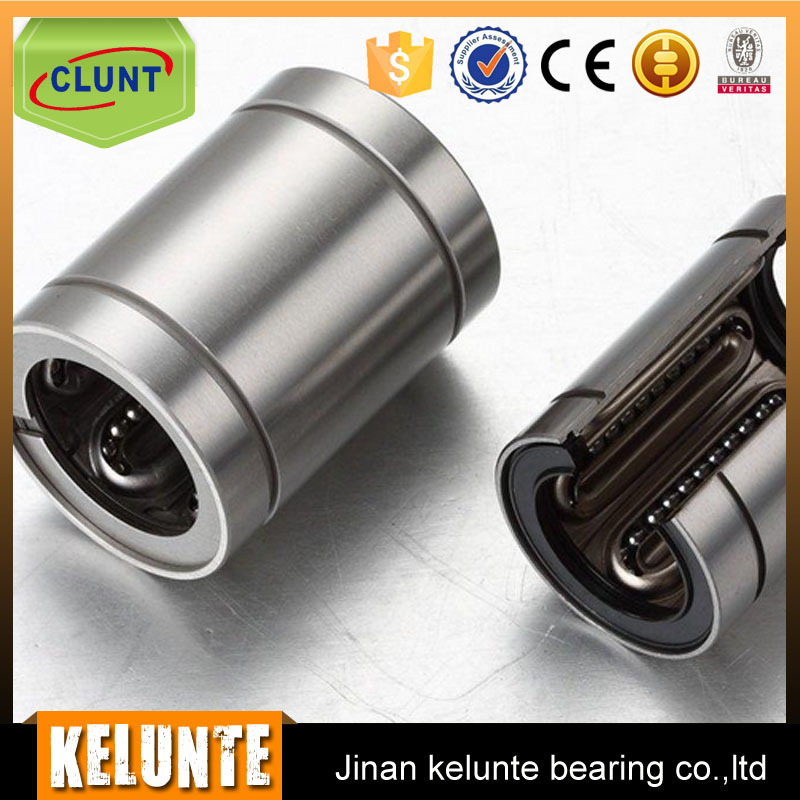

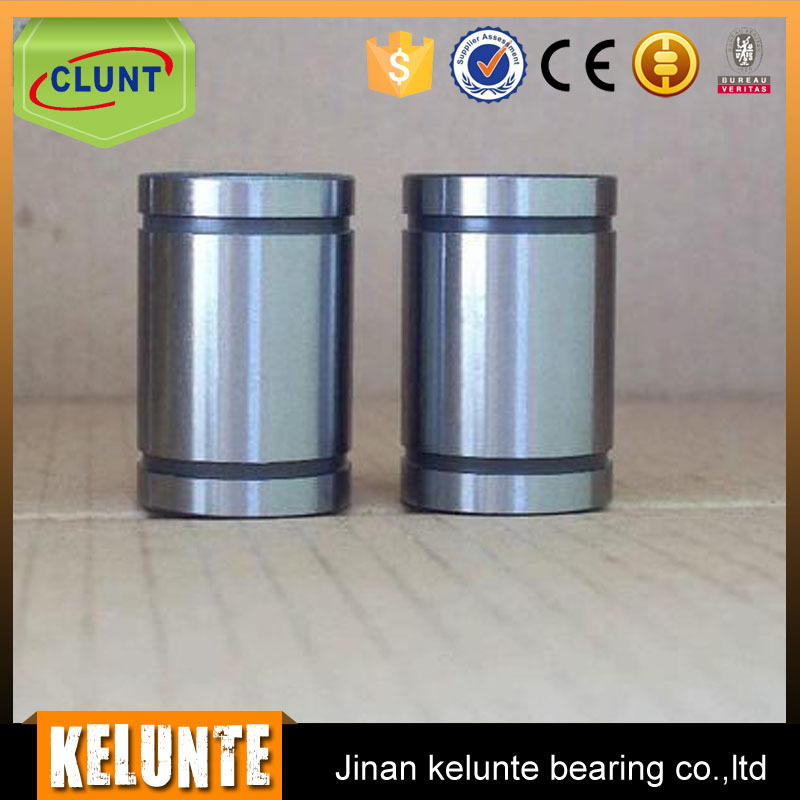

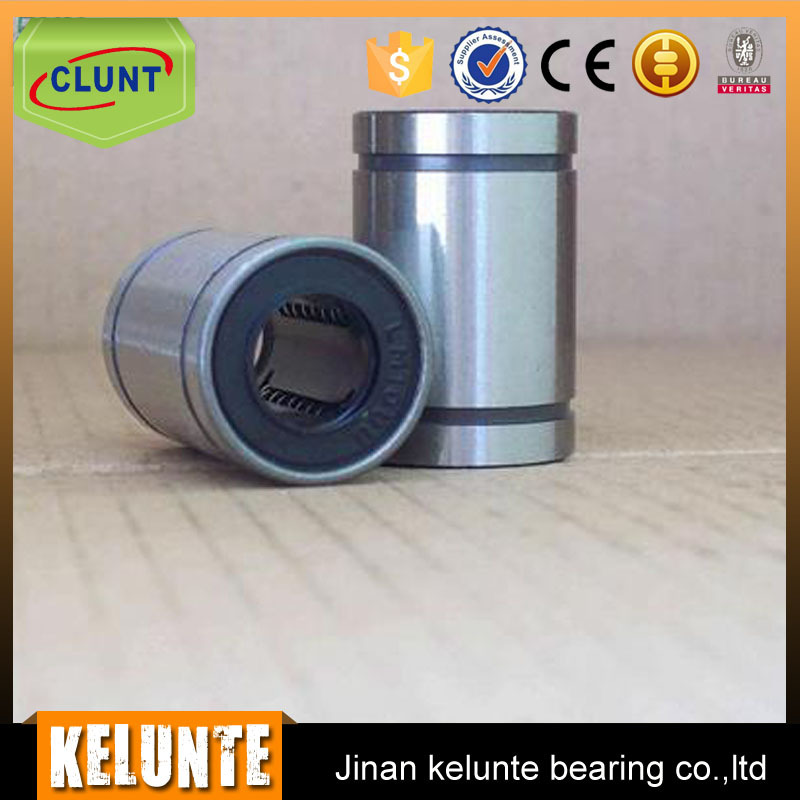

What are your bearings look like?

linear bearing lm8uu

Deep groove ball bearings	Linear bearing Linear ball bearings	Pillow block bearings	Clutch release bearings
Cylindrical roller bearings	Needle roller bearings	Thrust ball bearings	Thrust roller bearings
Spherical roller bearings	Ball joint bearings	Conveyor roller bearings	Angular contact ball bearings

Item	Linear ball bearing
MOQ	1pcs
Port	Qingdao/Shenzhen/Shanghai
Payment method	1. T/T(better for big amount) 2. Paypal(better for small amount, if for big amount the paypal charge will be high, timely account) 3.Western Union 4.Secure payment(Via alibaba, safe payment, Zero risk)
Supply ability	100000pcs/month
Delivery time	2-5 days of stock, 15-50 days for OEM
Sample policy	Free sample available
After sale service	After you recieved the goods, if there is problem of the goods, please contact us, we will give our solution(compensate or return) according to the situations.
Packing	Plastic bag+Brand color box+Outer carton+Wooden pallet

Company Profile

Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings.
Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands: Sweden SKF Bearing, FAG bearings, INA Bearing, Japan NSK Bearings, NTN bearings, KOYO bearings, bearings TIMKEN the United States. Domestic brands: Harbin HRB bearings, Wafangdian ZWZ bearings, Luoyang LYC bearings, and other major brands.
These products are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries.
With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept.
