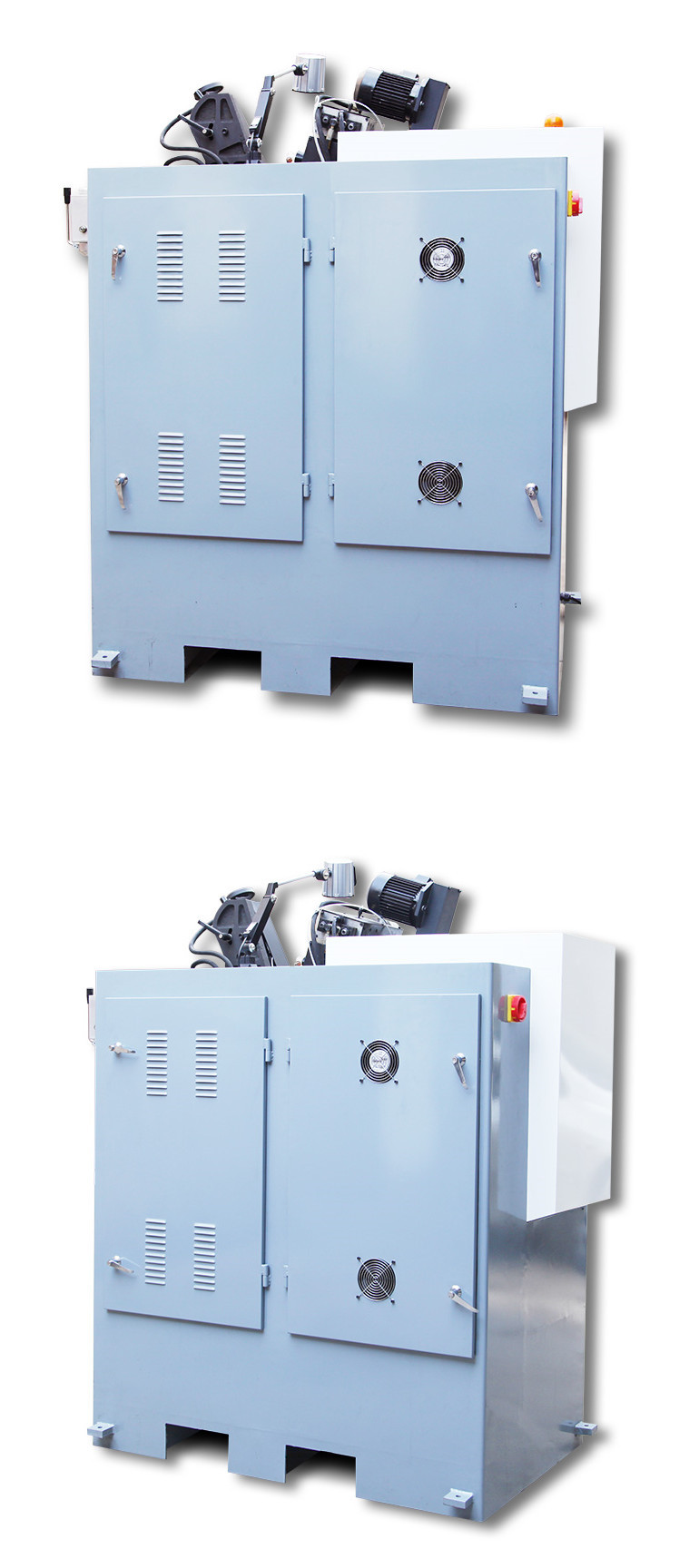

MAKEIT QH-4Cangle grinder machine of carbide saw blade sharpening machine-flank angle

MAKEIT QH-4Cangle grinder machine of carbide saw blade sharpening machine-flank angle
  • MAKEIT QH-4Cangle grinder machine of carbide saw blade sharpening machine-flank angle
Share to:

Condition: New Place of Origin: Sichuan, China (Mainland) Brand Name: MAKEIT Model Number: QH-4C After-sales Service Provided: No overseas service provided Type: Grinding Machine CNC or Not: CNC Max. Grinding Diameter: 810MM(special size can be customized) Min working diameter: 100MM(special size can be customized) Total power: 1.75KW Voltage: 380 Dimension(L*W*H): 1400*1200*1800MM Net weight: 1100KG Deep groove ball bearing: SKF

Product Details

Parameter

Rated Input Power : 1.75kw
Model Number : QH-4C
Brand Name : makeit
Place of Origin : Sichuan,China(Mainland)

Description

Circular saw blade
Outer diameter 100-810mm
Bore diameter 10-220mm
Width of tooth 5mm
Tooth pitch 6-75mm

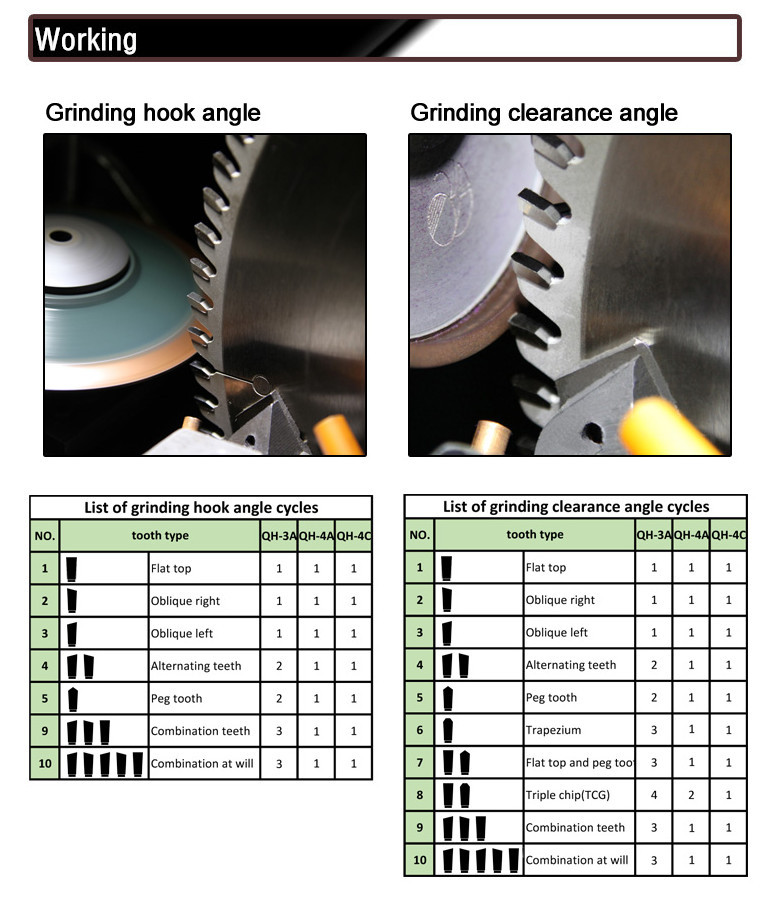

Hook angle -6°-40°
Clearance angle 0-45°
Tooth top -5°-45°
Tooth surface -5°-30°
Grinding path 0-28mm
Grinding speed
Continuously variable 0.5-6m m/s
Working speed Up to 20t/min
Grinding wheel
Outer diameter 125mm
Bore diameter 32mm
Peripheral speed 26m/s
Cooling water pump
Water pump flux 50L/min
Capacity of coolant tank 85L
Total
Total power 1.75KW
Net weight 1100kg
Dimension(L*W*H) 1400*1200*1800mm



Company Profile

Chengdu Makeit Machinery Equipment Co., Ltd. Was established in 2009.It is a company specializing in the production of high quality, high precision grinding equipment manufacturers.

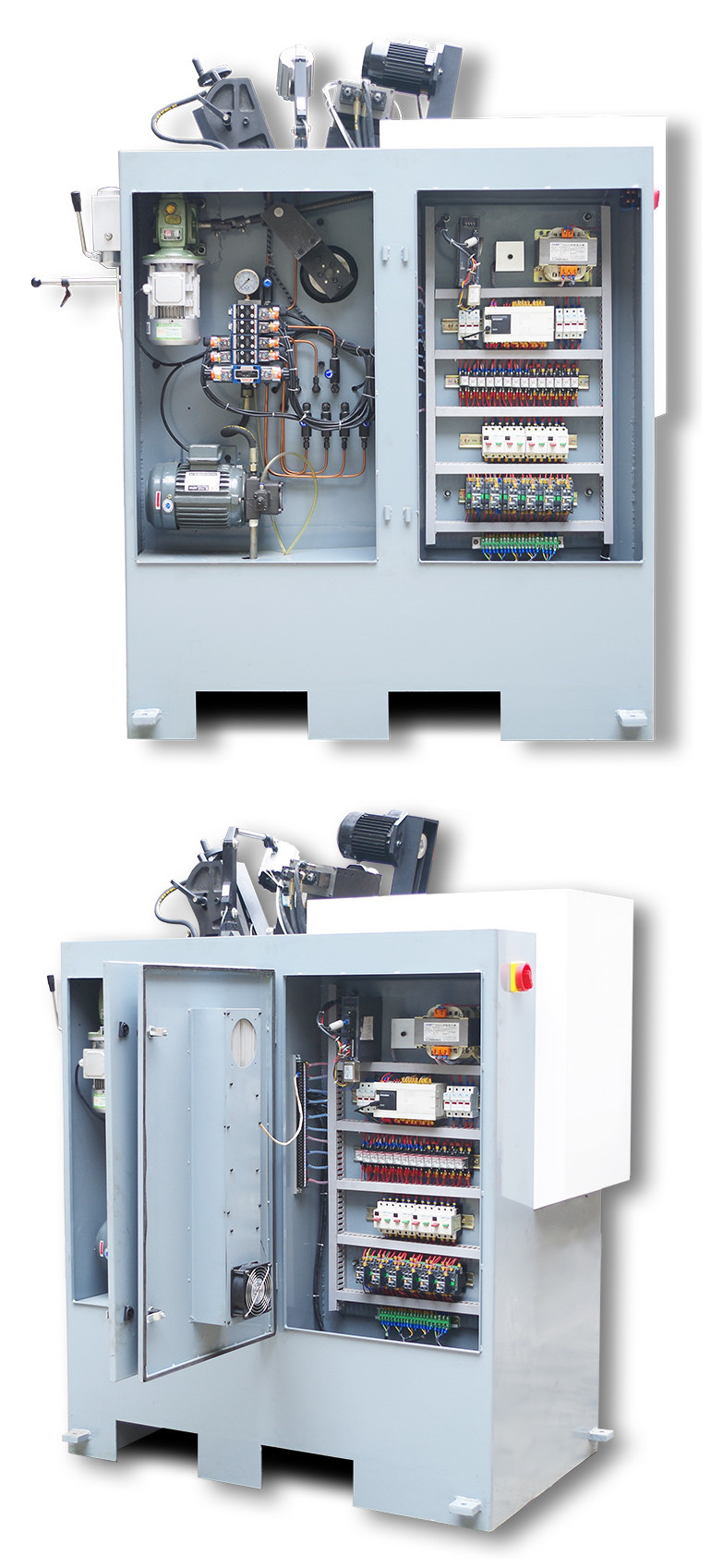

The key components of MAKEIT are relays from OMNON,PLC from LG and MITSUBISHI ,castings from SCHNEIDER,bearing from NSK and linear guide from KAITE,those excellent components can assure the program processing fast and reliable.MAKEIT learns from the experience of Europe advanced machine,whitch enhance the abrasion resistance and service life.The function of digital differential display,preinstalling the type and number of the tooth,machine operating automatically,and the machining precision achieves the European mechanical grinding precision.
