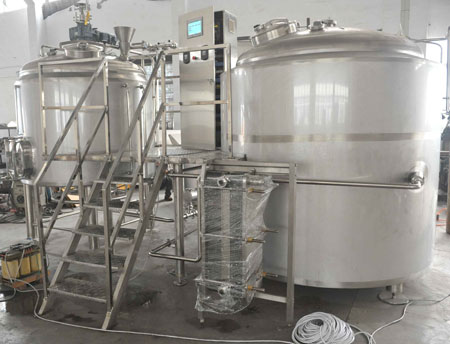

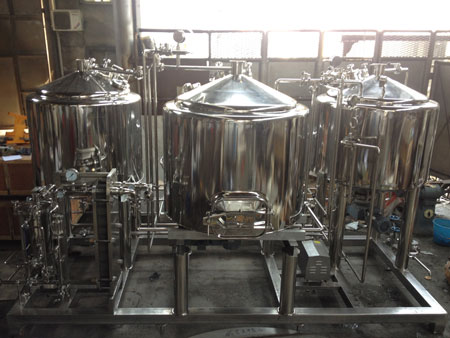

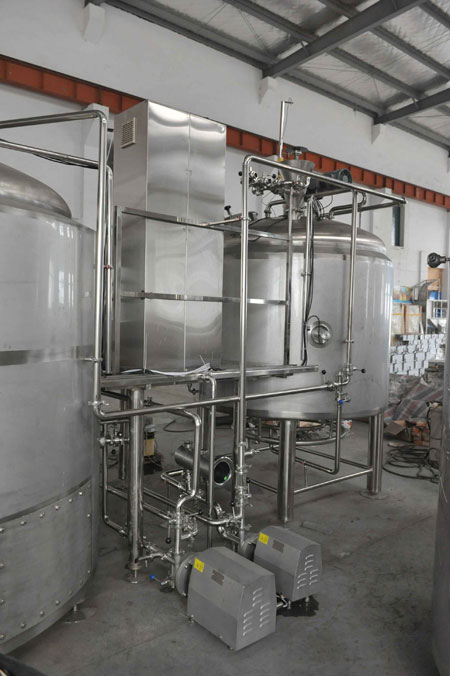

The brewhouse comprising of 2 or more vessels is mounted on a stainless steel skid or on the floor with piping, pumps, platform, etc, which are pre-built for convenient installation on site. Please contact us! Tel:0086-411-39803773 Email:
The brewhouse comprising of 2 or more vessels is mounted on a stainless steel skid or on the floor with piping, pumps, platform, etc, which are pre-built for convenient installation on site.
Milling: 2-roller or simplified 4-roller,
Mash & Lauter tun: Brewing & sparging water blending port, VFD controlled rake, with wort grant, mash hydrator, etc
Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating
Hot Liquor Tank: Steam heating, direct burning of immersion electric heating.
Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp standard or DIN, pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venture aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc

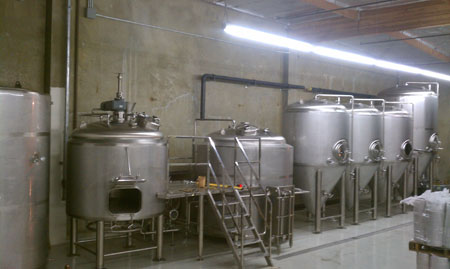

Cellars: Singe, double or multi-time brew size fermenters and BBT
Cellar Control: Automatic Temp. control with solenoid valves,
Portable CIP cart: with 1 electric immersion Heating caustic tank, automatic Temp. control and 1 pump, etc
-Separate Whirlpool tun for ideal whirlpool effect and shortening interval time of 2 continuous batches
-Separate mash tun with agitator, heating, etc
-1-step wort cooling with separate cold water tank
Our company is the leading supplier for craft beer industry. We supply turnkey micro brewing systems from 1HL size to 30HL and lager for brewpubs and microbreweries as well as service such as consulting, customized design, and so on.
t is inspiring to see our primary target, establishing successful and profitable brewing business for each clients, has been realized very well meanwhile.
Being professional at realization of your brewing business plans, we are very able at these aspects of turnkey project and so on:
- Feasibility Study;
- Offering proposals;
- Customized design and manufacture;
- Installation, commissioning and training at site;
- Extending output and upgrading techniques for old brewing systems;
- Transferring recipes and customized taste-adjusting;
- Raw material sourcing
