Material transport vehicle

Material transport vehicle
  • Material transport vehicle
Share to:

Condition:

New

Storage:

bulk cement trucks

Drive Wheel:

6x4

Horsepower:

150 - 250hp

Transmission Type:

Manual

Fuel Type:

Diesel

Tank Volume:

15001 - 30000L

Engine Capacity:

6700

Dimensions (L x W x H) (mm):

8800*2380*3650

Brand Name:

CLW

Place of Origin:

Hubei China (Mainland)

Model Number:

CSC5160GFLD

Gross Vehicle Weight:

16000

Color:

Optional

Product Details

Description

Specifications

Top design 16cbm bulk material transport vehicles
1Wheel base:5000,4700mm.
2Used for ash,PE Granules,coal,etc.
3Top quality.

Product

CSC5160GFLD Powder Tank Vehicles



Cubage(T)

nternational standards--overweight maximum load capacity



Vehicle parameters

Overalldimension length/width/height (mm)

8800×2380×3650

Gross weight (kg)

16000

curb weight(kg)

8805

Frontsuspension/rearsuspension

(mm)

1430/2370

Approach/departure angle

19/13

Max speed

85

Vehicle Description Section

Tanks shape dimension (linear long/diameter) (mm) : 5400×2150.

Chassis

Chassis model

DFL1160BX

Wheelbase (mm)

5000,4700

Front tread

1880

Rear tread

1800

Tyre specification

9.00-20

Fuel type

Diesel

Engine parameters

Engine

ISDe180 30

ISDe185 30

ISDe210 30

B190 33

Exhaust/ Power  (ml/kw)

4500/132

6700/136

6700/155

Engine Manufacturer

Dongfeng cummins engine Co., LTD

Top design 16cbm bulk material transport vehicles

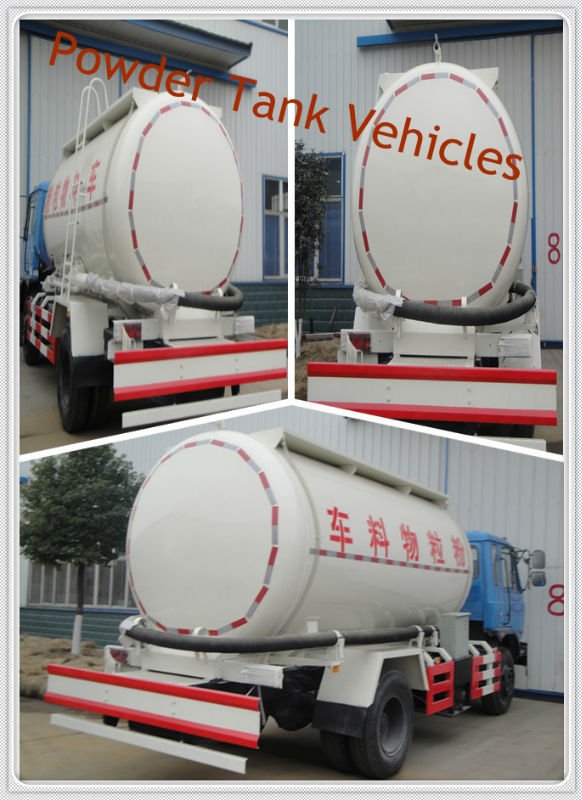

CSC5160GFLD Powder Tank Vehicles
  Unloading height can reach for 15m, horizontal distance was.

1 CSC5160GFLD Powder Tank Vehicles special section on the basis of the chassis with tanks, air compressor, pipeline system, fluidized bed etc special modified into.



2, CSC5160GFLD Powder Tank Vehicles for suzhou air compressor. But oblique wuhu compressor or south Korean air compressor. Also can add a diesel generating sets, in situ work condition plays the role of fuel.



3, CSC5160GFLD Powder Tank Vehicles tank to ask or fluidized bed by unloading structure, design science has an integral high strength, good rigidity, good performance of artesian well, use etc. According to the size of fluidized bed can adopt double tank storehouse structure or au structure, can effective shorten unloading time, improve the capacity utilization, reduce tank residual rate.

Top design 16cbm bulk material transport vehicles
