Multi-Purpose Machine CQ9107 Mini Lathe Turning,Milling,Drilling Machine

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

After-sales Service Provided

Overseas third-party support available
Certification

CE ISO
Weight

210kg
Dimension(L*W*H)

890*580*810mm
Voltage

380V
Place of Origin

Shandong, China (Mainland)
Color

Optionl
CNC or Not

Normal
Max. Swing Diameter

360mm

Brief description

FOB Price:US $1,388 - 1,688 / Set | Get Latest PriceMin.Order Quantity: 1 Set/SetsSupply Ability: 300 Piece/Pieces per MonthPort: qingdao.tianjin.shanghaiPayment Terms: L/C,D/P,T/T,Western Union

Detailed description

Packaging & Delivery

Packaging Details:	wooden case
Delivery Detail:	35days

Product Description

Multi-Purpose Machine CQ9107

Features:

1.tooling Has the purposes of turning, milling, drilling.
2.Two motors are driven separately, easy operation, low noise.
3.360° rotation in vertical plane for drilling/milling box.
4.tooling Use multi-purpose toolpost with vises mouth.

Spacification:

Model	CQ9107
Turning dia.	40mm
Swing dia. over bed	360mm
Distance between centers	300mm
Spindle bore	20mm
Spindle speed / grade	500-1600/3r/min
Longitudinal stroke	210mm
Cross stroke	145mm
Drilling and milling spindle speed / grade	430-2000/5r/min
Max. drilling dia.	16mm
Max. disc milling dia.	63mm
Max. vertical milling dia.	12mm
Table size	200*155mm
Drilling and milling spindle stroke	75mm
Power of motor	370, 370w
N.W. / G.W.	148/210kg
Overal dimensions of machine	890580810mm
Case dimensions of machine	1150580960mm

Standard configuration:
3-jaw chuck, center, drawing bar, pressing cutter wrench,
wedge, clamping shank, drill taper stock, etc.

Special configuration:
Turning tools, disk milling cutter, drilling chuck, milling chuck.

Detailed Images

Multi-Purpose Machine CQ9107 Mini Lathe Turning,Milling,Drilling Machine

Packaging & Shipping

Multi-Purpose Machine CQ9107 Mini Lathe Turning,Milling,Drilling Machine

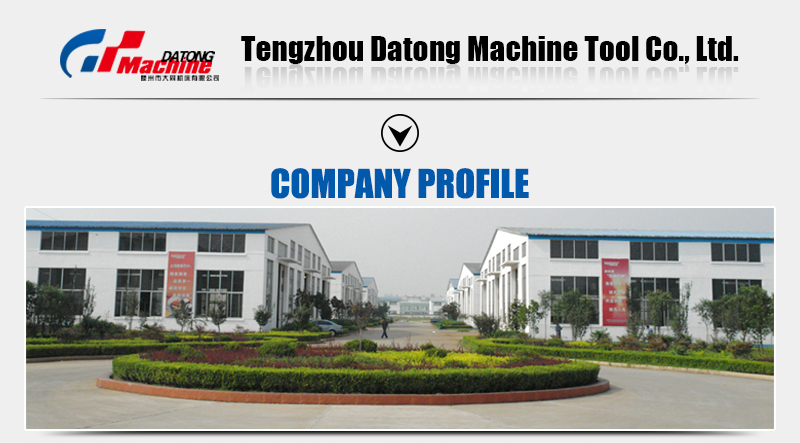

Company Profile

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China.We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ series Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006A laser beam level truck locator and hydraulic auto maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 Sysetem Certification.It has all the integration of research and development,manufacturing and processing,management and marketing,technical service,import and export as into one.At present,we has 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to South-America,Southeast-Asia and other countries and regions.

"Honesty Basic,Quality First" is the company's purpose,"continuous progress to satisfy the requirments of the customers"is the quality policy.

The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development.
