New Multi Function Rebar Detector ZBL-R800,thickness analyzer

New Multi Function Rebar Detector ZBL-R800,thickness analyzer
  • New Multi Function Rebar Detector ZBL-R800,thickness analyzer
Share to:

FOB Price:US $ 100 - 2,000 / Set

Min.Order Quantity:1 Set/Sets

Supply Ability:50 Set/Sets per Month

Port:Dalian

Payment Terms:T/T,Western Union

Product Details

Parameter

Place of Origin : Liaoning, China (Mainland)
Model Number : ZBL-R800
Dimensions : 212mm'134mm'50mm
USB port : thumb drive storage available
Data transmission : wireless transmission
Colour : red
Weight : 0.9kg

Description

Specifications



1.ZBL-R800 can be used for testing the thickness of protective layers
2.Multi function rebar detector
3.Great for field work




New Multi Function Rebar Detector ZBL-R800,thickness analyzer



Product Description



Application:
ZBL-R800 is a multi-functional integrated rebar detector which can be usedfor testing the thickness of protective layers, measuring the diameter,location, and distribution of rebar as well as for detecting the corrosion content of a rebar.
Features:
1. Multi function rebar detector = rebar locator + rebar corrosion detector;an economical and convenient device;
2. This model features the world’s first wireless onsite data transfer function for such a device and remote management is also available;
3. Data can be stored on a usb-thumb drive, great for field work;
4. This device can generate rebar distribution map and rebar corrosion potential contour graph;
5. Powerful professional analysis-process software allows for the automatic generation of test reports.



Specifications





Applicable range



6mm~50mm



Corrosion detection

method



Single electrode



Double electrode





Protective layer thickness range 1000 mV

(mm)



First range

3~98



Second range

3~196





Measuring range

Accuracy



±1000mV

±1mV



0~ 1000 mV

±1mV

Maximum allowed

error for protective

layer



±1 mm

6~56



3~79



Tested points Interval X

0~100 adjustable



20 fixed

±2 mm

57~69

80~119

Tested points Interval Y



0~100 adjustable



0~100 adjustable



±4 mm

70~98

120~196

Power



Built-in chargeable lithium battery

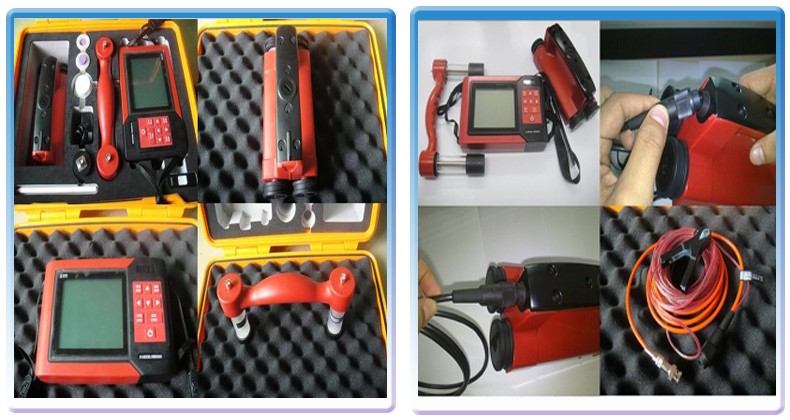

Figure Photos

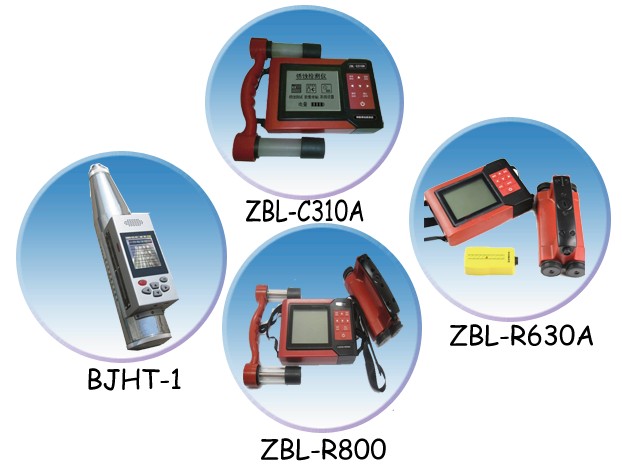

Model Selection





Company Information

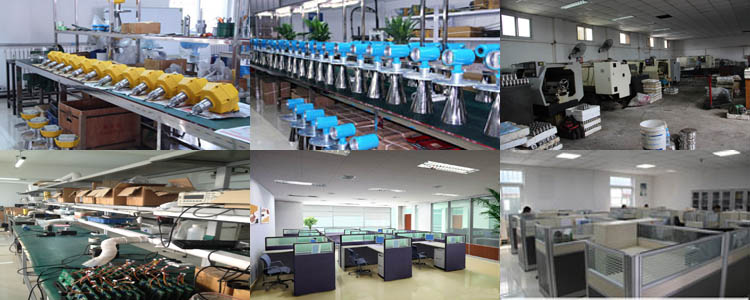

Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include rebar detector, ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
