OEM/ODM high quality tungsten carbide mining tips

OEM/ODM high quality tungsten carbide mining tips
  • OEM/ODM high quality tungsten carbide mining tips
Share to:

FOB Price:US $ 45 - 65 / Kilogram Min.Order Quantity:10 Kilogram/Kilograms tungsten carbide mining tips Supply Ability: 500000 Kilogram/Kilograms per Month tungsten carbide mining tips Port:Shenzhen, Shanghai Payment Terms:L/C,T/T,Western Union

Product Details

Parameter

Place of Origin : Hunan, China (Mainland)
Brand Name : Haigong
Model Number : all types available
Factory supply : yes

Description

Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: Haigong
  • Model Number: all types available
  • Type: Power Tool Parts
  • Product name: tungsten carbide mining tips
  • Factory supply: yes
  • OEM, OEM: yes
  • Application: For mining and drilling
  • Use: Coal Mining
  • Certification: ISO, CE
  • Material: Carbide
  • Payment: L/C, T/T etc
  • Shipment: by sea or by air
  • Delivery: within 20 workdays after payment done

Packaging & Delivery

Packaging Details: Plastic box inside, carton outside; Or as per your request
Delivery Detail: within 20 workdays after payment done


  tungsten carbide mining tips





How to find a reliable supplier for cemented carbide products?

Is it really can be customized as per your requirement?

How to achieve OEM/ODM by one-on-one service?

Here we go.

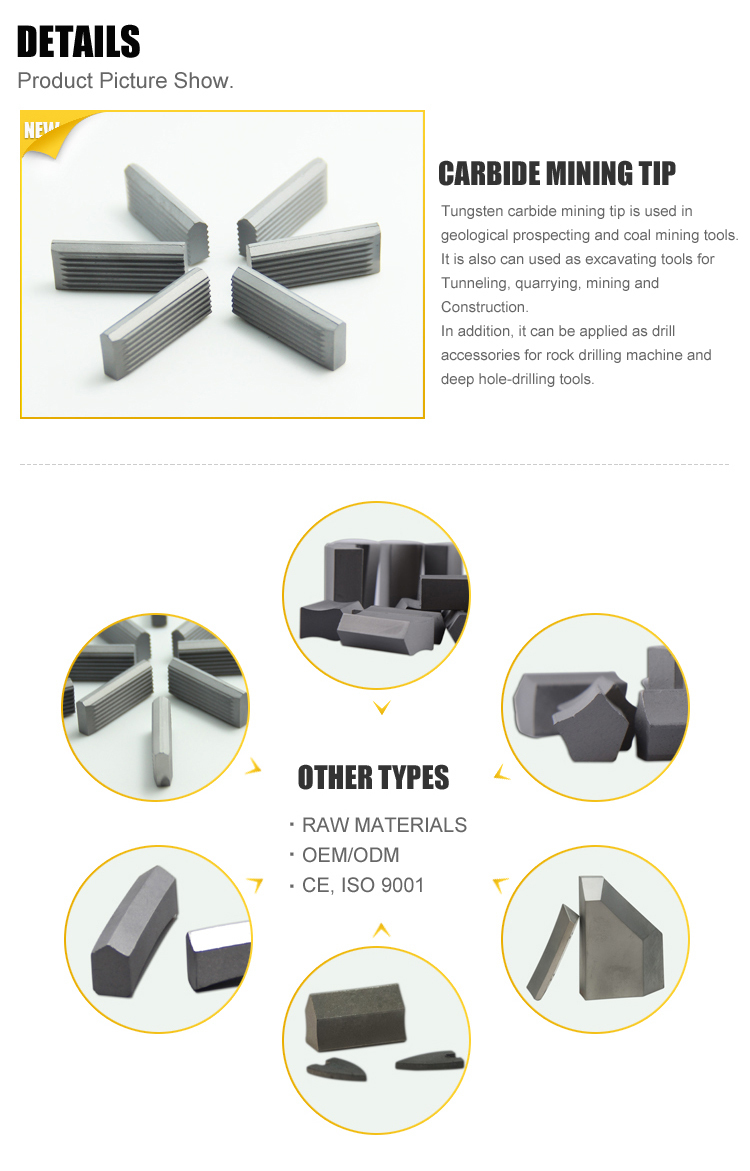

Types and usage



♦ Brief introduction of application

Tungsten carbide mining tip is used in geological prospecting and coal mining tools. It is also can used as excavating tools for Tunneling, quarrying, mining and Construction. In addition, it can be applied as drill accessories for rock drilling machine and deep hole-drilling tools.





 What kind of grades can we supply?

If grade requirement can be mentioned in your order,

more advice can be offered for your choice.

Carbide grade



♦ Grade of  tungsten carbide mining tips



Grades, properties and recommended applications of conventional cemented carbide for mining inserts.
Grade Grade Density g/cm3 Hardness HRA/Hv3 TRSMPa Recommended application
YK15 BK15 14.60 88.0 2600 Suitable for embedding rotary percussive drill bits of light rock drilling machines for drilling soft to medium rock formations of class f=14-15
YK15.6 BK15.6 14.60 87.6 2700 Suitable for embedding rotary percussive drill bits of light rock drilling machines for drilling medium to hard rock formations of class f=14-15
YK20 BK20 14.52 87.3 2800 Suitable for embedding rotary percussive drill bits of medium rock drilling machines for drilling medium to hard rock formations of class f=15-18
YG11C BG11C 14.35 87.0 2850 Suitable for embedding rotary percussive drill bits of   heavy rock drilling machines for drilling hard rock formations of class f=18 or above.



Brief on new material grades for mining inserts.
Grade Grade Density g/cm3 Hardness HRA/Hv3 TRS MPa Recommended application
YK25.6 BK25.6 14.58 87.5 2650 With a uniqe structure, it has a longer lifetime and drilling speed. It is suitable for embedding rotary drill bits of medium drilling machines for drilling medium hard and rather hard rock formations of class f=14-16
YK20.2 BK20.2 14.45 88.0 2700 It combines the advantages of the wear resistance of YK15.6 and toughness of YK20 with rather good stability. The product is suitable for drilling rock formations of class 15-17 after application on a scale in Chenzhou,Hunan and Gansu, etc., with a good drilling speed as compared with the same category of products.
YK020 BK020 14.50 87.3 2650 It is an economical grade and it is suitable for embedding rotary percussive drill bits after application on a scale in Gansu and Shandong, etc. And it is suitable for drilling rock formations of class 11-13 with a good ratio of performances and prices.



Cemented carbide products for geological prospecting and coal mining.
Grade Density g/cm3 Hardness HRA/Hv3 TRS MPa Recommended aplication
YG4C 15.13 90.2 1920 Suitable for geological prospecting and coal mining drill bits for drilling interlocked hard and soft rock formations, hand holding or shelf electrically driven drills for mining for drilling coal stong & hard and super hard coal formations. And for making auger tips for coal cutters.
YG6 14.95 89.5 2200 Suitable for embedding electrically driven drill bits for drilling coal prospecting, oil well drill bits and scraper drills, for drilling soft rock formations under f=8, hard and super hard coal formations. For drilling nature stone materials, bricks and concrete walls.
YG8 14.74 89.0 2350 Suitable for embedding core drilling drill bits for geological prospecting, oil well drill bits and scraper drills, for drilling soft rock formations under f=8, hard and super hard coal formations. For drilling nature stone materials, bricks and concrete walls.
YG8C 14.69 87.5 2850 Suitable for embedding coal cutters for drilling medium hard & hard coal formations and hard coal formations with horse under f=14, For drilling nature stone materials, bricks and concrete walls.
YK20.3 14.67 88.7 2380 Suitable for geological prospecting and coal mining drill bits for drilling interlocked hard and soft rock formations, hand holding or shelf electrically driven drills for mining for drilling coal stong & hard and super hard coal formations. And for making auger tips for coal cutters.

Company Profile

Enterprise value:
Dedicated,Insistent,Innovative,Enterprising
Enterprise culture:Trust ourself ,Trust our team ,Trust future
Zhuzhou Haigong cemented carbide company is a mature and professional enterprise which was established in 2006 .Haigong is engaged in the development and production of tungsten carbide anvils ,tungsten carbide mining products ,PDC substrate , ,mould material .tungsten carbide rod and plates ,tunsten carbide insert,as well as special carbide etc.These products are widely applied in mining, machinery, oil drilling, IT industry . Our factory have first class equipments and facilities HIP-Sinter stove experienced engineers and professional oversea sales team.With excenllent quality and reasonable value timely shipment , we won the customer's trust and deep affecton around the world ,and enjoy a high reputation in the business.It is our belief-:Creating value for customer,cooperation and mutual benefit".We look forward to becoming your most reliable long-term partner !
