Plastic Tellerate Tower

Plastic Tellerate Tower
  • Plastic Tellerate Tower
Share to:

Cheap Plastic Tellerate Tower Packing for Scrubber

Product Details

Parameter

Brand Name : ZY
Place of Origin : Jiangxi, China (Mainland)

Description

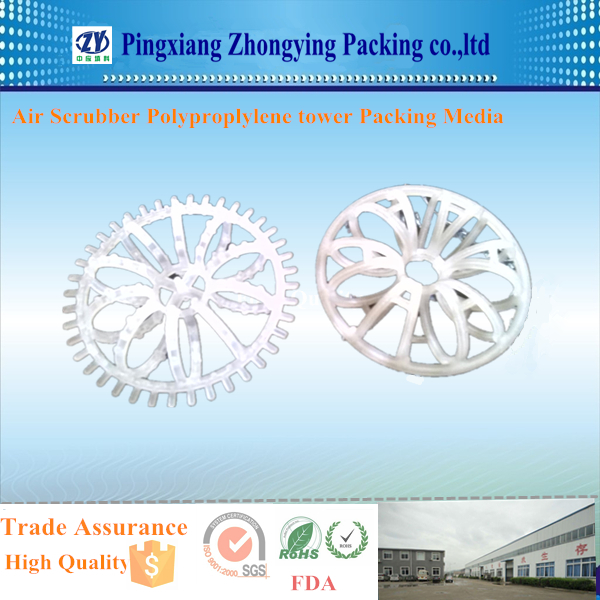

        Cheap Plastic Tellerate Tower Packing for Scrubber

Product Description

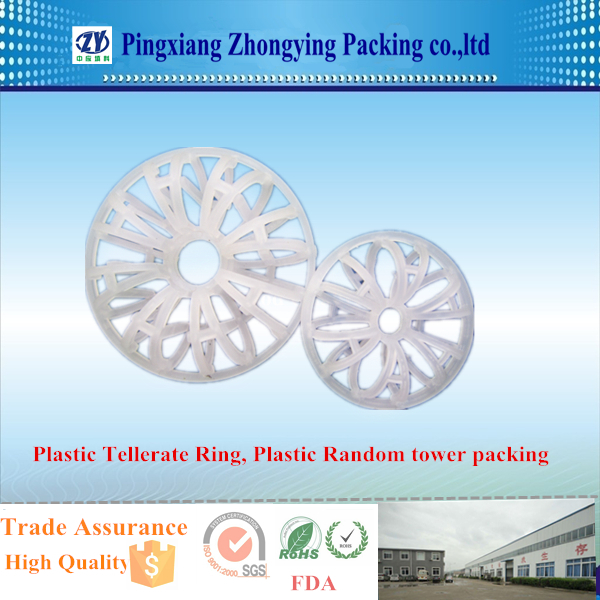

Plastic Tellerette Ring is also named Teller Ring which is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics.

Cheap Plastic Tellerate Tower Packing for Scrubber  Advantages

Lower pressure drop, energy saving, high mass transfer efficiency.

Customers can choose products of different materials such as polyethylene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chlorinated polyvinyl chloride(CPVC) and polyvinyllidene fluoride(PVDF) based on different application requirements.
Cheap Plastic Tellerate Tower Packing for Scrubber  Application:

Absorption, scrubbing, and stripping services etc.

Cheap Plastic Tellerate Tower Packing for Scrubber   TechData

Name

Normal
mm

Diameter*Height*
Thickness mm

Surface area
m2/m3

Void space
%

Bulk density
kg/m3

No.elements
per/m3

Packing factor
m-1

Tellerette
ring

ø25

25*9*1.5*2

269

82

128

175000

488

ø47

47*19*3*3

185

88

111

32500

271

ø51

51*19*3*3

180

89

103

25000

255

ø59

59*19*3*3

150

92

102

17500

213

ø73

73*28*3*4

127

89

102

8000

180

ø95

95*37*3*6

94

90

88

3600

129

ø145

145*48*3*6

65

95

47

1100

76

The bulk density given here is based on PP material.



Package Type

Container Load Capacity

Delivery time

Quality

Insurance

Payment Terms

20 GP

40 GP

40 HQ

Ton bag

24 m3

54 m3

64 m3

Within 3-10 days

Chinese National Standard;

 Offer quality assurance as request.

T/T, L/C, Paypal, West Union

Plastic bag

25 m3

55 m3

65 m3

Paper box

25 m3

55 m3

65 m3




Product Photo:
