Professional Gravity Shaking Tables Factory From Jiangxi(LS4500)
After-sales Service Provided : Engineers available to service machinery overseas
Condition : New
Model Number : Gravity equipment
Brand Name : Tongli
Place of Origin : Jiangxi, China (Mainland)
Power(W) : 1.1KW
Dimension(L*W*H) : 5600*1850*860mm
Weight : 750kg
Certification : CE,ISO9001:2008
Warranty : 1 year
Deck material : Fiberglass
Model type supply : LS4500,LY3000,LY2100,LY1100
6S Shaking table (LS4500)
Tongli 6S Shaking Table — Product feature
1 The rich ore ratio (the ratio between concentrate and raw ore) is far higher than other ordinary beneficiation methods
2 Eligible concentrates and ineligible tailings can be provided at one time.
3 Minerals are in the shape of sector, which makes it easy for observation and adjustment.
4 The partition plate can separate minerals with different properties, so different kinds of minerals can be provided.
5 It consumes no reagent and little electricity.
Tongli 6S Shaking Table — Product application
Concentrating table is applicable to fine minerals, like tungsten, tin, tantalum, niobium, other rare metals and precious metals. It is also able to process ferro-manganese and mica and reclaim iron from tailings.
Tongli 6S Shaking Table — Product principle

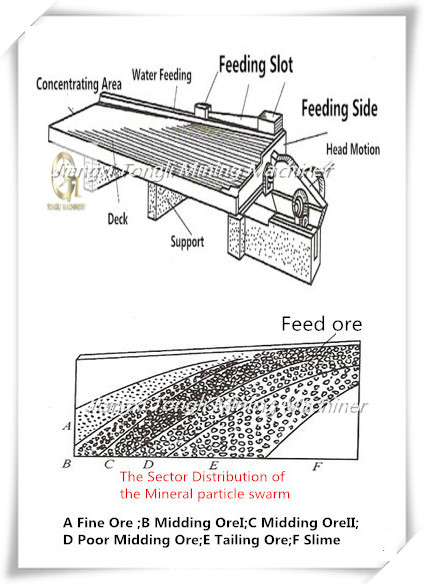

The working principle of this machine is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
Tongli 6S Shaking Table —Product structure
This machine is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table
This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. The deck of Shaking Table
It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism(Spport)
The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
Tongli 6S Shaking Table-Deck types

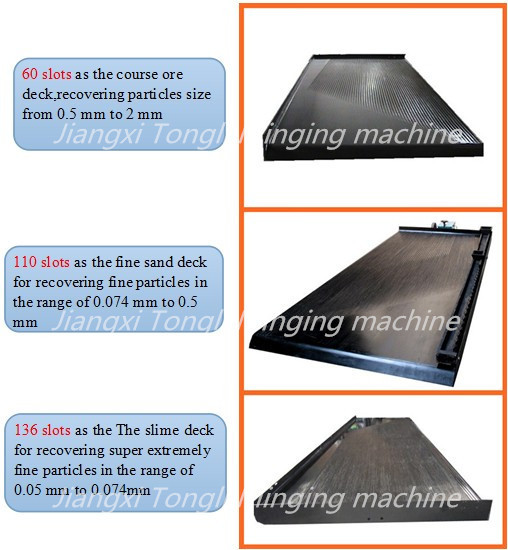

Several decks are available

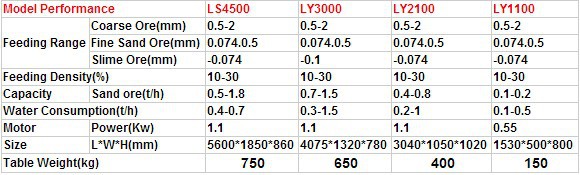

Technical of the shaking table
Jiangxi Tongli Mining Machinery Co. Ltd (the original Jiangxi Tongli Mining Machinery Plant ) is a professional manufacturer of mineral processing equipment which sites by Shicheng county ,Ganzhou city, Jiangxi province. The mineral processing equipment of Tongli sells quite well all over the country now. Especially in the recent years, the products of Tongli are sold directly to Malaysia, Myanmar, Russia, Turkey, India, Indonesia, South Africa, Outer Mongolia, North Korea, Vietnam and so on. Tongli has became a famous regional brand.
The main products of Tongli are mineral processing equipment with a capacity scale of 5-1000 tons per day, including feeding, crushing, grinding, grading, conveying , screening, gravity concentration ,floatation , magnetic concentration and so on, more than ten series .Having been insisting such distinguished business concept as credit stands higher than profit, we win the compliment from clients all over the world . Moreover, we are also awarded honorable titles by Municipal Government and Administration of Industry & Commerce (AIC), such as "Large Taxpayer ", " Enterprise of Complying with Contracts and Keeping Promises", " Enterprise with Reliable Quality " and so on
