Application: Laser Cutting
Condition: New
Laser Type: CO2
Applicable Material: Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness: ≤25mm(Up to The Material)
Cutting Area: 1250*900mm(Customizable)
Cutting Speed: ≤500mm/s(Up to The Material), ≤500mm/s
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: PCI/USB
Quick Details
- Application: Laser Cutting
- Condition: New
- Laser Type: CO2
- Applicable Material: Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
- Cutting Thickness: ≤25mm(Up to The Material)
- Cutting Area: 1250*900mm(Customizable)
- Cutting Speed: ≤500mm/s(Up to The Material), ≤500mm/s
- CNC or Not: Yes
- Cooling Mode: Water Cooling
- Control Software: PCI/USB
- Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
- Place of Origin: Hubei, China (Mainland)
- Brand Name: ARGUS
- Model Number: SCU1290
- Certification: CE, ISO, TUV
- After-sales Service Provided: Engineers available to service machinery overseas
- Laser Power: 60W/80W/100W/130W/150W
- Engraving Speed: ≤1000mm/s
- Chiller: Circulation Water Cooling
- Power supply: 220V/50Hz/1kVA(110V/60Hz)
- Net Weight: 399kg/430kg/450kg
- Dimension: 1000*600/1250*600/1250*900mm and So On
- The Accuracy of Repeated orientation: ≤±0.025mm
- Optional Configuration: USB Interface; Rotary Device
- Laser: acrylic laser engraving cutting machine
Packaging & Delivery
Packaging Details: |
Standard Crate For Exporting |
Delivery Detail: |
About 10-15 working days |
specification
Terms |
Technical Parameter |
Model |
SCU 1290 |
Working platform size |
1250*900mm |
Power |
Co2 80W/100W/130W |
Controlling system |
RD System |
Software |
Laser cutting software/vector |
Support format |
PLT, BMP, DXF, DST, T100, etc |
Process Material |
Non-metal Materials |
Cutting speed |
≤500mm/s |
Engraving speed |
≤1000mm/s |
Repeated accuracy |
≤±0.025mm |
Min. cutting character |
2.5mm |
Max. cutting depth |
0-25mm(it’s up to the material) |
Cooling ways |
Circulation of water cooling |
Working temperature |
0-35°C |
Working humidity |
5-95% |
Working Power |
220V/50Hz/2kVA |
Auxiliary Equipment |
Air pump |
Exhausting Fan |
Cooling water box |
Accessories |
PCI card, Microsoft dog, tools, pipes, quality certification etc. Packed in a box |
Optional configuration |
USB interface,Rotary,elevatable working platform and red light indication |
Dimension |
1920*1420*1280 mm |
Net weight |
450kg |
Package |
Standard Crate for export |
Packing List
QTY
|
Item
|
1 set
|
CO2 laser cutting machine
|
1 set
|
Industry water chiller ( constant temperature )
|
1 set
|
Compressed Air (0.035MPa)
|
1 set
|
Exhaust fan (1,700Pa, Dia 80mm, 14m3/min) with pipe
|
1 set
|
USB wire,network wires
|
1 set
|
Warranty card
|
1 set
|
Test report
|
1 set
|
CD disc with English user manual and ,multi-language Software
|
1 set
|
tools
|
What material can co2 cutting machine work on?
CO2 laser cutter can work on non-metal materials and part of coated metal.
Available materials |
Cut |
Engrave |
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate |
Y |
Y |
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic |
Y |
Y |
Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards |
Y |
Y |
Wood, Bamboo, Veneer, MDF, Balsa wood, Plywood |
Y |
Y |
Leather, Pig leather, Cow Leather, Sheep leather |
Y |
Y |
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece |
Y |
Y |
Foam & Filter. Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)Neopren |
Y |
Y |
Paper, Cardboard, Chipboard, Press Board |
Y |
Y |
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slat |
N |
Y |
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam Silicone rubber, Synthetic rubber |
Y |
Y |
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass |
N |
Y |
What features of co2 laser cutting machine?
1. Machine case: our machine case is very strong, the case weight is more 50KGS than our competitor.
2. Red light indication is installed at the first reflectors, keep it coaxial with laser beam for better adjusting the laser, and ensure the high precision cutting & engraving indication.
3. Motion Structure(X-Gantry): It is designed and made by module, thus running is more steady.
4. Ultra motor: In order to improve the cutting precision, we have add more function on motor to keep belt better match.
5. Installation: As a manufacturer in laser industry for nearly 20 years, all installation is well done by our 5 years experience workers.
6. RD software have strong editing function and compatiable with all kinds of format: AI, PLT, BMP, DXF, DST, T100, etc
laser wood engraving machine price

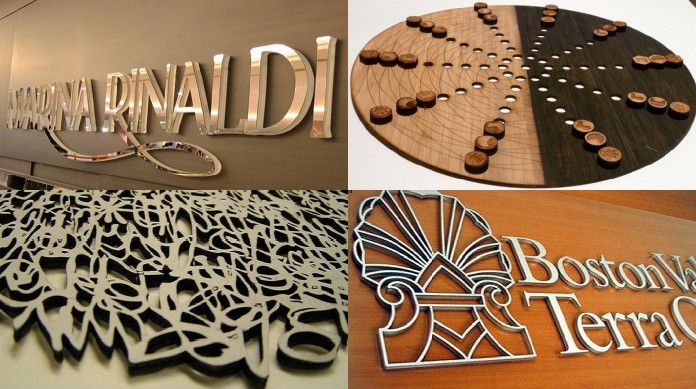

samples
