RV-100H handheld ultrasonic flowmeter/Dalian flow meter

RV-100H handheld ultrasonic flowmeter/Dalian flow meter
  • RV-100H handheld ultrasonic flowmeter/Dalian flow meter
Share to:

FOB Price:US $420 - 660 / Set

Min.Order Quantity:1 Set/Sets n/a

Supply Ability:150 Set/Sets per Month n/a

Port:DALIAN

Payment Terms:L/C,D/P,T/T,Western Union

Product Details

Parameter

Place of Origin : Liaoning, China (Mainland)
Model Number : RV-100H
Display : 4 lines English characters
Power Supply : 3 AAA Ni-H built-in batteries
Main unit size: : 220X92X32mm
Pipe Size : 20mm-6000mm
Housing Material : ABS

Description

Specifications

Handheld ultrasonic flow meter
1.Accuracy:1%
2.Pipe Size:20-6000mm
3.Main unit size:220X92X32mm
4.Weight: 538g with batter

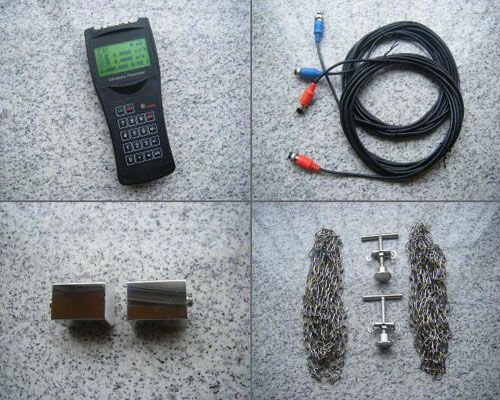

Handheld ultrasonic flowmeter



RV-100H handheld ultrasonic flowmeter for various industrial field in the liquid flow-line measurement of calibration and inspection. Has high accuracy, consistency is good, battery-powered, simple operation and easy to carry and other features, is currently the smallest, lightest quality, truly portable ultrasonic flowmeter, the products have been exported to Japan, South Korea, Southeast Asia, Australia, the United States and other regions, has been widely praised.



Product Specifications:

      Item

        The  Specifications  of   handheld ultrasonic flowmeter

Linearity

0.5%

Accuracy

±1%  first to meet the accuracy in domestic

Repeatability

0.2%

Response Time

0-999 seconds, user-configurable

Velocity

0.01±32m/s

Pipe Size

15mm-6000mm

Security

Setup values Modification Lockout. Access code needs unlocking

Display

4 lines English characters on-screen display instantaneous flow, velocity,, cumulative flow, signal status working hours and so on .

Transducers

Model M1 for standard, other 3 models for optional

Transducer Cord Length

Standard 2x10 meters, optional 2x 500 meters

Power Supply

3 AAA Ni-H built-in batteries. When fully recharged it will  last over 10 hours of operation. 100V-240VAC for the charger

Housing Material

ABS

Size

Small size 220×92×32mm

Weight

Light weight 538g with batteries



Product Features:

Applicable to

Applicable for steel, stainless steel, cast steel, PVC, FRP and other uniform dense quality pipe

Liquid types

water, sea water, sewage, alcohol, various oils such as uniform, single, stable liquid

Output Signal

OCT output of positive and negative, the net cumulative pulse signal and frequency signal (1-9999Hz optional)

Data Interface

RS232 interface is used for net testing or export the record data. RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.

Straight pipe length

Upstream>10D,Downstream>5D, Length from pump exit>30D

Data Logger

Built-in data logger can store over 2000 lines of data



Optional sensors:

1.Standard Small stent sensors(DN15-100mm)

Fluid temperature: ≤ 110 Degrees

Dimension: 200 × 25 × 25mm

Handle Length: 100mm

RV-100H handheld ultrasonic flowmeter/Dalian flow meter

2.Standard midsize stent sensors(DN50-DN700mm) (Magnetic)

Fluid temperature: ≤ 110 Degrees

Dimension: 280 × 40 × 40mm (2)

RV-100H handheld ultrasonic flowmeter/Dalian flow meter

3.Standard midsize sensors M1(DN50-DN700mm) (Magnetic)

Fluid temperature: ≤ 110 Degrees

Dimensions: 80 × 70 × 55mm



RV-100H handheld ultrasonic flowmeter/Dalian flow meter



4.Standard large size sensors L1(DN300 bove)

Fluid temperature: ≤ 110 Degrees

Dimensions: 60 × 45 × 45mm



RV-100H handheld ultrasonic flowmeter/Dalian flow meter









 RV-100H handheld ultrasonic flowmeter/Dalian flow meter

























RV-100H handheld ultrasonic flowmeter/Dalian flow meter   RV-100H handheld ultrasonic flowmeter/Dalian flow meter
