Reversier Spindel

Reversier Spindel
  • Reversier Spindel
Share to:

FOB Price:US $ 100 - 7,000 / Piece

Min.Order Quantity:1 Piece/Pieces According to purchase order

Supply Ability:1000 Piece/Pieces per Year According to purchase order

Port:Dalian Port

Payment Terms:L/C,T/T,Western Union,MoneyGram

Product Details

Parameter

Structure : Screw shaft
Material : Steel
Coatings : antirust oil, plastic film, packing blankets, steel frame pallet
Place of Origin : Liaoning, China (Mainland)
Purpose : Winch Wind Rope .

Description

Specifications

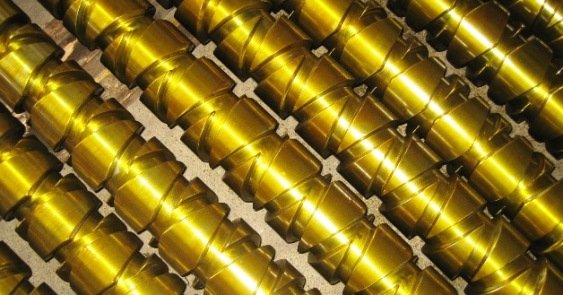

Reversier Spindel
Let Winding More Orderly
Spooling More Evenly
Let Rope No Longer lay back on its self
Let Rope Longer Life






 is an important part of level winder device of winch or water reel or coiled tubing unit.



It can ensure to wind the wire rope or cable or hose or tubing onto the drum or reel correctly and smoothly and evenly. It can improve winch technology level and extend the wire rope life.



It is non-standard product. It is custom product. It is designed and manufactured according to customer’s drawings and customer’s requirements.



The material may be ASTM 4140 and HB 240-270 or ASTM 4045 HB 240-270 or according to the customer's individual specification.



The material can be authenticated by CCS, ADS, NK, LR, DNV according to customer’s requirement.



The reversing grooves and the thread grooves on the shaft are very smooth.



The tongue of nut we designed and made is a special arc. It will fit with level wind screw very well. The customers don't need manual grinding the nut tongue to fit with the level wind screw when they assemble the winch.



We suggest clients to select diameter, length and pitch of spooling shaft according to below list (unit mm)



DIAMETER

30-50

50-75

75-100

100-130

130-160

160-200

200-300

LENGTH

300-800

500-1200

700-1300

900-2000

1000-3000

2000-4000

3000-5000

PITCH

20-40

30-55

40-80

60-110

80-130

100-160

140-240



We suggest clients to select the pitches from following list.



THE LIST OF SELECTABLE PITCHES      Unit: mm

16

18

20

22

24

28

30

32

36

40

44

48

56

60

64

66

72

76

80

84.5

88

91.64

94.32

95.442

96

97.714

100.6

103.6

106.1

110.5

112

117.9

119.4

120

125.7

128

132.7

138.1

142.545

144

148.465

150.857

152

158.118

160

165.82

176

185.38

192

195.43

201.143

212.09

224

240



Besides the selectable pitches in the list we can also process many more special pitches to meet the design requirements.



The surface of the shaft is smoothed by grinding machine or is smoothed and harded by roller.



It can be transported by sea or by air according to customer’s requirements.



We are specialized in the spooling technology of winches. We know winch spooling device operation rule and design key. If the customer provides the distance between two flanges of winch drum and the diameter of rope and the diameter of spooling shaft to us, we can design the pawl travel distance, pitch, turns, under-cut, drive ratio of chain transmission for the customers.



We have manufactured many level wind screw shafts and spooling nuts for our clients. Our customers are mainly distributed in eastern Europe, Western Europe, Southeast Asia, and Oceania, etc.



























Company Profile

We are professional in the spooling technology of winches. We know winch spooling device operation rule and design key. We are specialized in design and manufacturing level wind screws (or be known as winch spooling shafts, diamond screws, self reversing screws) and nut (or be known as spooling pawls, tongues, nut) for the customers. The level wind screws we made can be used onto various kinds of winches and coiled tubing units and water reels etc.

The level wind screws we made are integral type. The material of level wind screw may be ASTM 4140 or according to customers requirements. The material can be authenticated by CCS, ADS, NK, LR, DNV according to customers requirement.The material of nut may be C95500 or according to customers requirements. The nut we made can fit with level wind screw very well. The clients do not need manual grinding the nut to fit the level wind screw, when they assemble the winches. The advantages of our technology are obvious.

Our company has made many level wind screws and nuts for customers in Europe, Southeast Asia, Oceania and other regions since 2006. Our company has product quality monitor and management lead by senior engineers. We have the ability to undertake all kinds of level wind screw purchase orders and satisfy customer's requirements.

Now more than 90% of our products are exported to overseas markets and main overseas markets include Southeast Asia and Europe and Oceania. We have received high praises from our customers and we have established long-term friendly contact with them.

Through the Internet, we have won the trust of customers worldwide. Our company also hopes to do our best to provide better products, the most professional service, the most rapid response and the most sincere commitment for our customers according to customers feedback and to do most effective communication timely to solve customers' problems.

We sincerely expect to cooperate with more customers and create win-win cooperation to contribute and to promote the global development of winch technology.
