Product Description
| Technical Specifications |
| Model: |
BS-306(AC) |
BS-306(DC) |
| Power supply: |
220VAC 50Hz |
220VAC 50Hz |
| Motor's power: |
90W 220VAC |
80W 24VDC |
| Max length of Boom: |
6m |
6m |
| Time for up/down: |
1.6S(for 1-2m)4S(for3-4m)6S(for6m) |
1.6S(for 1-2m)4S(for3-4m)6S(for6m) |
| Environment temperature: |
-20℃~50℃ |
-20℃~50℃ |
| Protection class: |
IP55 |
IP55 |
|
|
Control board for 220V/AC
|
| |
![]() |
| Input terminals: |
| |
Photo cell,Air wave switch, |
| |
Loop detector,Toll gate system . |
| Output terminals: |
| |
Motor,Lamp |
|
|
| Control board for 220V/DC |
| |
![]() |
| Input terminals: |
| |
Photo cell,Air wave switch, |
| |
Loop detector,Back-up battery, |
| |
Toll gate system. |
| Output terminals: |
| |
Motor,Lamp |
| Functions: |
| |
Force of opening and Closing is adjustable. |
|
|
Features:
1.The traffic barrier is widely used for the facilities of parking, traffic or toll system.
2.Arms can be chosen from 3 meters to 6 meters.
3.This type of barrier could match with direct boom( pole), fold boom Or fence boom..
4.Advanced manual release .Clutch key can be used to open the clutch when electricity is cut off.
5.All the process is soft without any noise and shaking.
6.This barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-up battery(for DC Motor), toll gate system and output terminals for lamp.
7. Housing color: yellow,red ,blue,orange,white (optional)
8. Boom arm direction can be chosen leftward to rightward.
9. Auto warming up,suitable for cold environment.
10.Controlling way :wireless or wiring multiple push button for OPEN,CLOSE,STOP function.

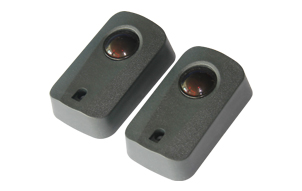

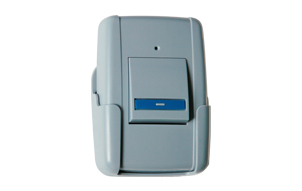

Optional Accessories :
![]()
![]()
![]()
![]()
![]()
![]()
