Product Introduction:
SAND PT4XX6 series pressure transducers are ideal for the measurement of melt pressure in extrusion processes at temperatures up to 400 . This series are produced with special materials and alloyed elastic diaphragm together with delicate processing and debugging. The main characteristics are high accuracy and small zero and span shifts caused by changes in process temperatures
Details
Performance Parameters:
|
Pressure Range
|
0~50 to 2000bar(0~750 to 0~30000psi)
|
|
Pressure Units
|
PSI, Bar, Mpa or Kg/cm2
|
|
Accuracy
|
±0.5% FS
|
|
Repeatability
|
±0.2% FS
|
|
Input excitation
|
10VDC ( 6 ~ 12 V DC )
|
|
Output Signal
|
3.33mV/V (Default), 3.0mV/V(Optional) etc.
|
|
Maximum diaphragm temperature
|
662 F (350 ) for rigid stem
752 F (400 ) for flexible
|
|
Zero shift due to temperature change
|
≤0.15 MPa/100°C
|
|
Insulation Resistance
|
≥500MΩ/500VDC
|
|
Maximum Overload Pressure Rating
|
1.5 x FSO
|
|
Process connection
|
1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc.
|
|
Electrical Connection
|
6PIN or 8PIN
|
|
Internal Shunt Calibration
|
80% FSO
|
|
Measurement principle
|
4-arm bonded foil strain gage Wheatstone bridge
|
|
Temperature Sensor (optional)
|
E,J,K,S type or Pt100
|
Features:
- Better than 0.5% accuracy
- Standard diaphragm Inconel
- TiN or TiAIN coating available
- Small zero and span shifts caused by changes in process temperatures
Dimension
1. Rigid stem type
![]()
2. Rigid stem & Flexible stem type
![]()
3. Flexible stem & Thermocouple type
![]()
4. Narrow space type
![]()
![]()

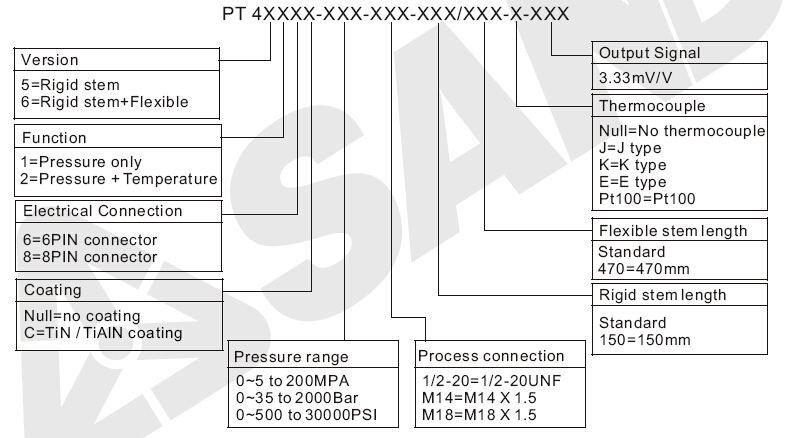

Order Format:
![]()
Example:
PT4626-500bar-1/2"-20-150/470-J-3.33mV/V
Note:
Product design Model "PT4626".
Function code "Null" stands for melt pressure transducer.
Coating code "Null" stands for no coating .
Pressure range: 0 ~ 500bar.
Thread size : 1/2"-20UNF .
Rigid /Flexible length:150mm/470mm .
Thermometric config: J type thermocouple temperature sensor .
Pressure output signal: 3.33mV/V.
