SAND melt pressure sensor

SAND melt pressure sensor
  • SAND melt pressure sensor
Share to:

FOB Price: Get Latest Price Min.Order Quantity: 1 Set/Sets Supply Ability: 10000 Set/Sets per Month Port: Cheng Du Payment Terms: L/C,T/T,Western Union

Product Details

Description

Quick Details

  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: SAND
  • Model Number: PT4626
  • Pressure Range:: 0~5~150MPa (20000psi)
  • Power supply: 10V DC (6~12V DC)
  • Signal Output:: 3.33mV/V (Full 33.3mV) or 3.0mV/V (Full 30mV)
  • Accuracy:: ±0.5% FS
  • Max diaphragm Temperature:: 400℃
  • Diaphragm: Inconel
  • Thermocouple type: E,J,K,S,PT100
  • Connector:: 6PIN, 7PIN 8PIN(Optional)
  • Diaphragm Coating(Optional): Titanium Nitride Coating;Titanium Nitride Coating
  • Temperature Drift: <0.15MPa/100℃

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 3~5 Days

PT4XX6 Series:PT4516 Series, PT4616 Serise, PT4626 Series.

High Temperature Melt Pressure Transducer (Melt Pressure Sensor)

Product Introduction:

SAND PT4XX6 series pressure transducers are ideal for the measurement of melt pressure in extrusion processes at temperatures up to 400 . This series are produced with special materials and alloyed elastic diaphragm together with delicate processing and debugging. The main characteristics are high accuracy and small zero and span shifts caused by changes in process temperatures.



Product Description



Pictures:




 Dimensions

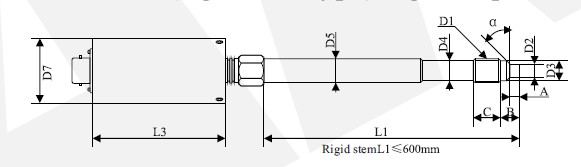

Rigid stem type

Flexible stem type

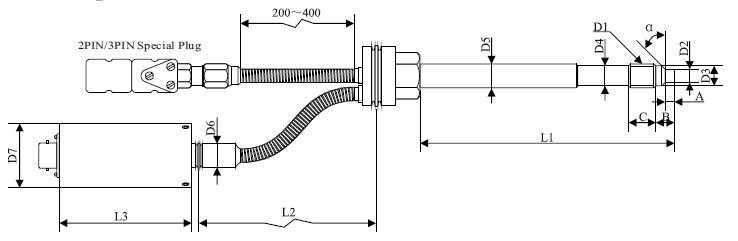

Flexible stem & Temperature type



Narrow space type





Performance Parameters:

Pressure Range

0 ~ 5 MPa ~ 150 MPa ( 0 ~ 750psi ~ 20000psi )

Accuracy

±0.5% FS

Power

10VDC ( 6 ~ 12 V DC )

Output Signal

3.33mV/V (Default), 3.0mV/V(Optional) etc.

Probe Heat Resistance

PT4516 Series: 300°C;

PT4616 and PT4626 Series: 400°C

Temperature Drift

<=0.15 MPa/100°C

Insulation Resistance

>=500MΩ/500VDC

Mechanical Connections

1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc. (Optional)

Electrical Connections

6PIN (SD02106P/SD02106S)

Thermometric Config

Thermocouple: E, J, K, S type etc.; (PT4626 Series Optional)

Thermal Resistance: Pt100 etc. (PT4626 Series Optional)



Features:

* Anticorrosive wear-resisting coating: apply to high concentrations of rough media pressure measurement,

can improve the service life of 3 to 5 times (optional);
* Special requirement can make to order, delivery date 7 ~ 15 working days;
* Optional supporting intelligent digital pressure meter:

PS1016-43x series, PS4810-43x series, PS4812-43x series and PS9016-43x series.



Order Format:



Example1:

PT4516-350bar-M18-150-3.0mV/V

Note:

Product design Model "PT4516".
Function code "Null" stands for melt pressure transducer.
Coating code "Null" stands for without coating .

Pressure range: 0 ~ 350bar.
Thread size : M18 * 1.5.

Rigid stem length:150mm .
Pressure output signal: 3.0mV/V.



Example2:

PT4616-50MPa-1/2"-20-150/470-3.33mV/V

Note:

Product design Model "PT4616".
Function code "Null" stands for melt pressure transducer.
Coating code "Null" stands for without coating .

Pressure range: 0 ~ 50MPa.
Thread size : 1/2"-20UNF .

Rigid /Flexible length:150mm/470mm .
Pressure output signal: 3.33mV/V.



Example3:

PT4626-50MPa-M14-150/470-J-3.33mV/V

Note:

Product design Model "PT4626".
Function code "Null" stands for melt pressure transducer.
Coating code "Null" stands for without coating .

Pressure range: 0 ~ 50MPa.
Thread size : M14*1.5 .

Rigid /Flexible length:150mm/470mm .
Thermometric config: J type thermocouple temperature sensor .

Pressure output signal: 3.33mV/V.




Our Services

3 YEARS WARRANTY!


Company Information





Company Profile

SAND is the oldest and time-honored manufacturer for melt pressure sensor, indicator and regulator etc. since 1992 with more than 20 years experiences. SAND has already become the most professional enterprise with great influence and scale in China and is one of the biggest manufacturers.
We attach great importance to our products quality and reputation. Our products have obtained ISO9001:2000 quality management system certificate, and passed the CE-Declaration of conformity and EX-Declaration of conformity. All of our production processes and product designs are in accordance with ISO9001and CE standards.
We mainly sold domestically in the last decade. But in recent years we have developed lots of new products and have enjoyed good market both home and abroad. Our products are exported to Europe, United States and other 50 countries and regions and enjoy high popularity among new and old customers and agencies.
Many products manufactured by us rank the first place in China. For example,
*The first intelligent digital pressure gauge manufactured by us;
The first PID pressure regulator used for chemical fiber industry manufactured by us;
*The first on-site display electronic gauge manufactured by us;
*The first mechanical pressure gauge with a super small diaphragm for remote transmission manufactured by us;
*The first melt pressure transducer/transmitter of high temperature and high pressure manufactured by us;
*The first melt pressure transducer/transmitter with all sorts of anti-corrosion coating manufactured by us;
*The first melt pressure transducer/transmitter is with the diaphragm coated fluoride manufactured by us;
