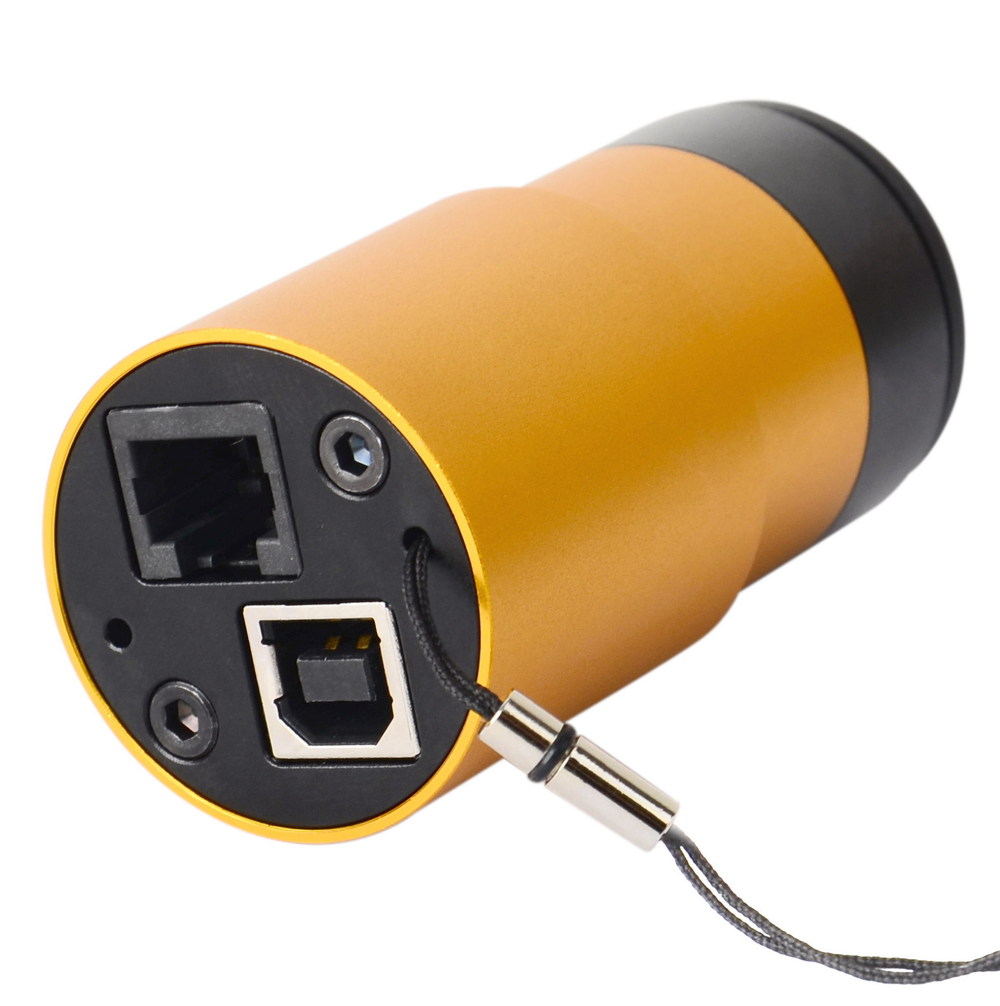

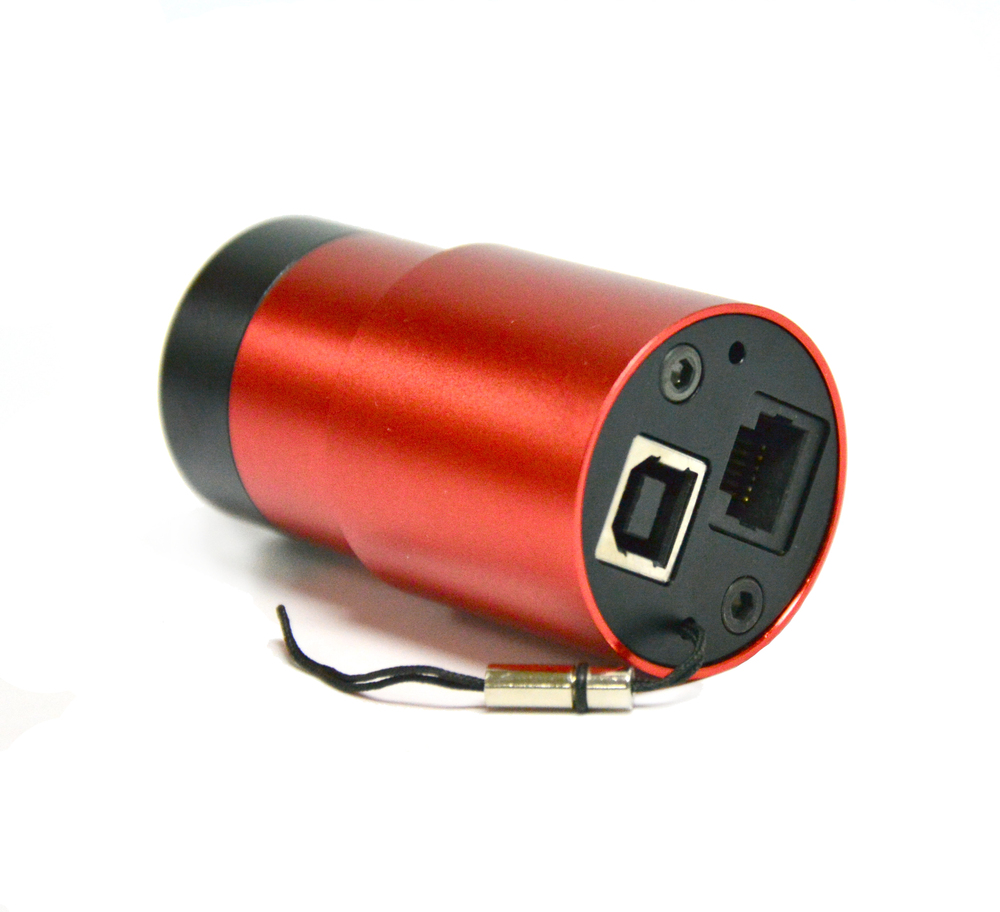

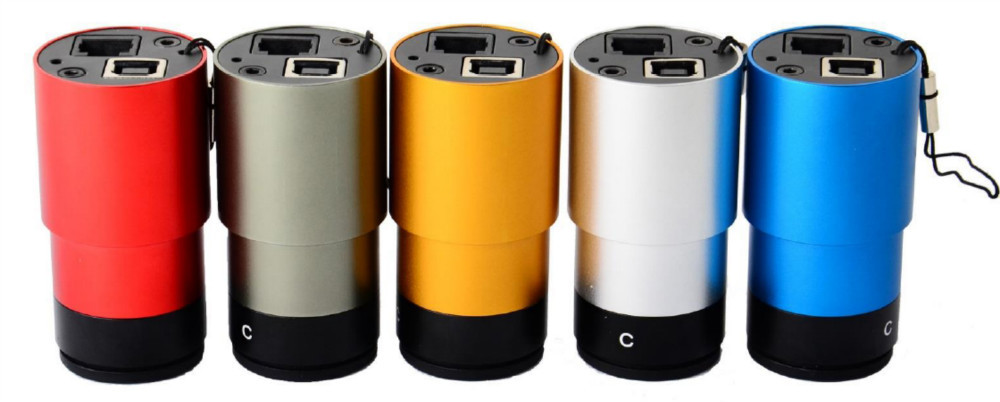

SC-Gcoms 1.25" interface USB2.0 Long exposure digital astronomical telescope eyepiece camera
![]()
![]()
![]()
Feature
![]()
Great camera for auto-guiding and multiple types of astrophotography (Moon, Sun, Planets as well as Galaxies, Cluster and Nebulae)
Carefully selected sensor with high sensitivity and fast frame rate, as well as long time exposure (0.4ms-800s)
Protect window with double-side AR coating or IR-Cut filter
A built-in ST4 auto guider port for the easy connection of the auto guider
Dedicated astrophotography software to support video preview, video record, video processing, image capture and process, dark field correction and raw data output
Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography softwares
![]()

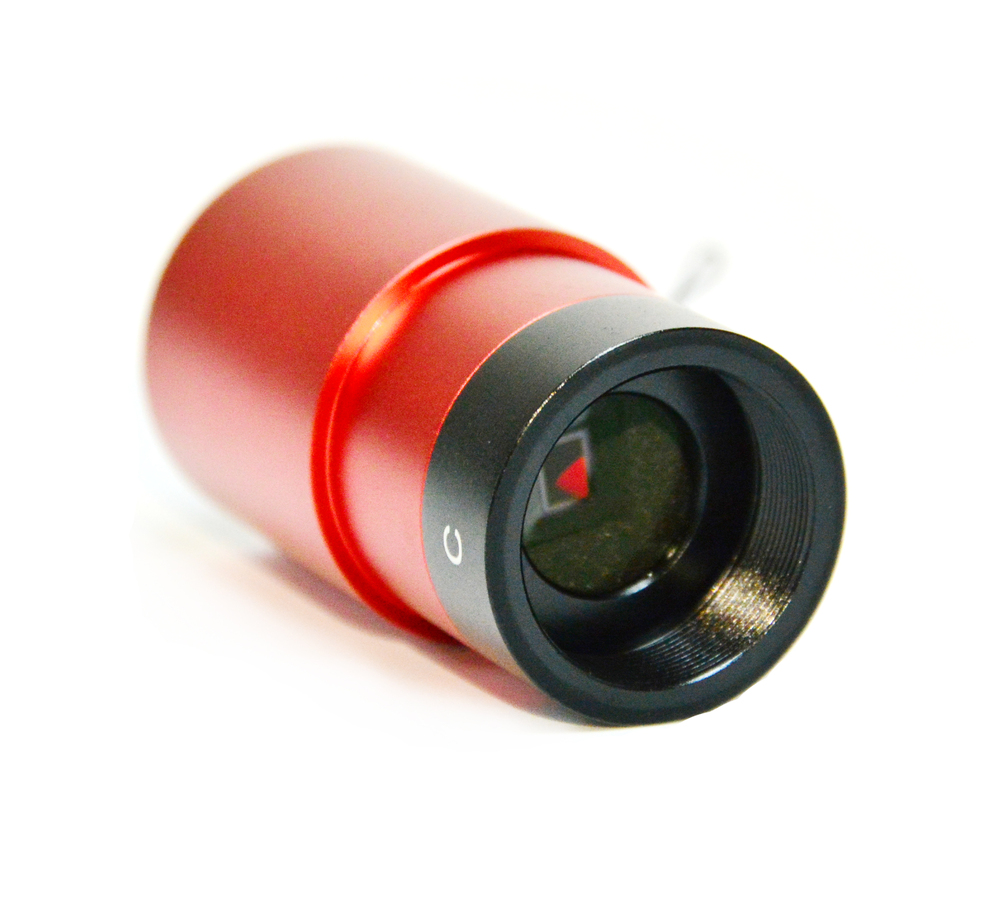

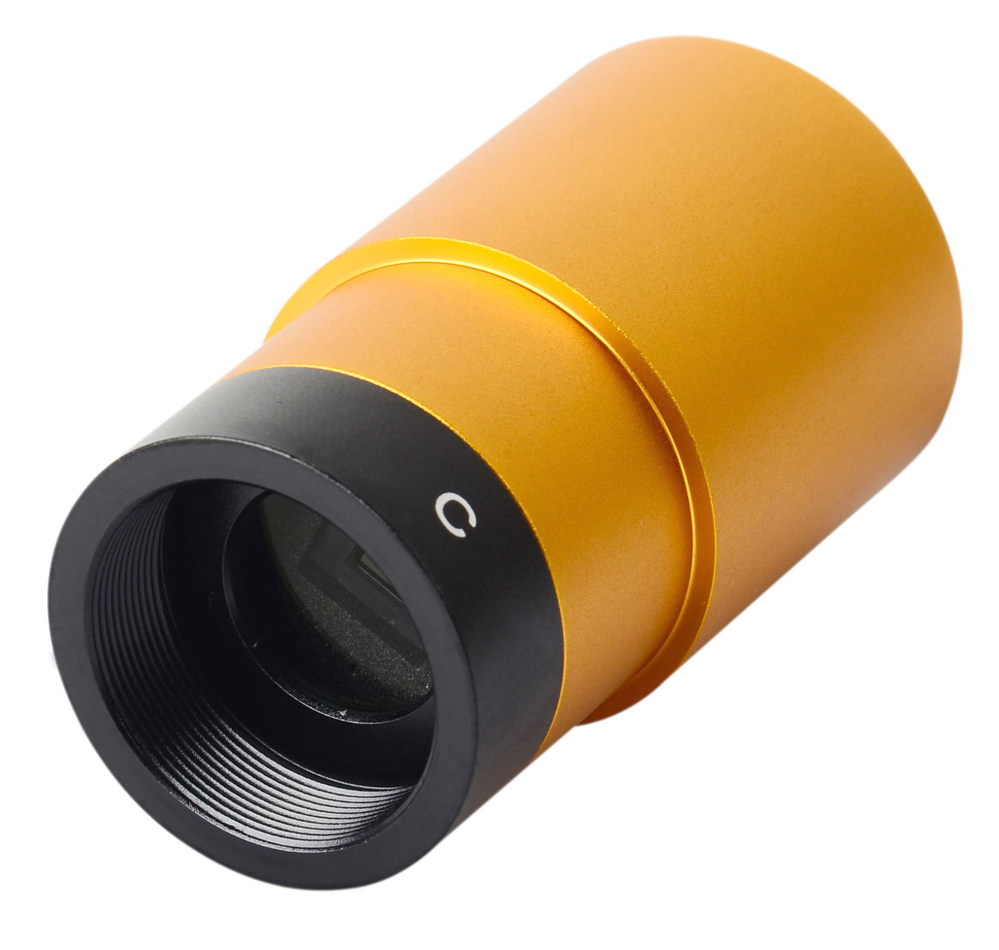

Aluminum CNC housing with standard 1.25 inch interface(outer) to fit to telescope eyepiece and standard C-mount(inner) for standard industrial lens
1.25 inch nosepiece for precise focusing and 1.25 inch astronomical filter installation
Thermal design to transfer the sensor heat to the aluminum house quickly
Specification
|
Order Code
|
Sensor & Size(mm)
|
Pixel(μm)
|
G Sensitivity
|
FPS/Resolution
|
Binning
|
Exposure
|
|
Dynamic Range
|
|
SN Ratio
|
|
SC-G12C
|
AR0130(C)
|
3.75x3.75
|
5.5v/lux-sec
|
28@1280x960
|
1x1,2x2
|
0.4s~800s
|
|
1/3"(4.8x3.6)
|
85.3dB
|
30@640x480
|
|
44dB
|
|
|
SC-G12M
|
AR0130(M)
|
3.75x3.75
|
6.5v/lux-sec
|
28@1280x960
|
1x1,2x2
|
0.4s~800s
|
|
1/3"(4.8x3.6)
|
85.3dB
|
30@640x480
|
|
44dB
|
|
|
OTHER HARDWARE CONFIGURATION
|
|
Spectral Range
|
380-650nm (with IR-filter), 350-1050nm(with Double Side AR Coating Protect Window)
|
|
White Balance
|
ROI White Balance/ Manual Temp-Tint Adjustment
|
|
Color Rendering Technique
|
Ultra Fine Color Engine
|
|
Capture/Control API
|
Native C/C++, C#, Directshow, Twain, Labview
|
|
Recording System
|
Still Picture and Movie
|
|
Guilding Port
|
ASCOM ST4-port
|
|
Cooling System*
|
Natural with High Performance Cooling Structure
|
|
OPERATING ENVIRONMENT
|
|
Operating Temperature
|
-10℃~ 50℃
|
|
Storage Temperature
|
-20℃~ 60℃
|
|
Operating Humidity
|
30~80%RH
|
|
Storage Humidity
|
10~60%RH
|
|
Power Supply
|
DC 5V over PC USB Port
|
|
SOFTWARE ENVIRONMENT
|
|
Operating System
|
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit)
|
|
OS X (Mac OS X), Linux
|
|
PC Requirements
|
CPU: Equal to Intel Core2 2.8GHz or Higher
|
|
Memory: 2GB or More
|
|
USB port: USB2.0 High-speed Port
|
|
Display: 17" or Larger
|
|
CD-ROM
|
