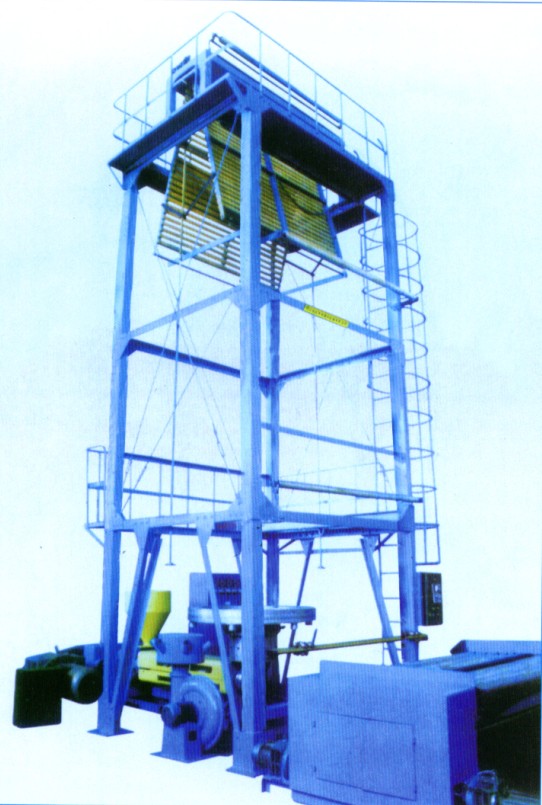

SJM-Z200*30-2800 Single Extrusion Blowing Agricultural Film Line

FOB Reference Price / Min.Order Quantity : Get Latest Prices
Processing Time: 1 Days - 60 Days
Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Share to:

Basic Information

  • Screw diameter:
    ∮200
  • Screw L/D ratio:
    30:1
  • Screw speed:
    12-110r/min
  • Main motor power:
    200kw
  • Extrusion output single:
    650kg/h
  • Film thickness:
    0.05-0.09mm
  • Max. open width of film:
    10000mm
  • Lip size:
    ∮1200
  • Electric total capacity:
    403kw
  • Overall dimensions:
    15*10*20.5m
  • Weight:
    42t

Brief description

The single extrusion blowing agricultural film line can produce ground, green house and package film from LDPE, LLDPE, MLLDPE, EVA.

Detailed description



Application:

This line can produce ground, green house and package film from LDPE, LLDPE, MLLDPE, EVA.



Features:

Extruder barrel and screw are made of high quality alloy steel, nitride and manufactured by precision machinery. They are provided with very hard surface to resist corrosion and abrasion. Temperature is regulated automatically, which is reliable and accurate. Flat winding-up with eight roller, automatic measuring length, simple in operation.
