Product Description

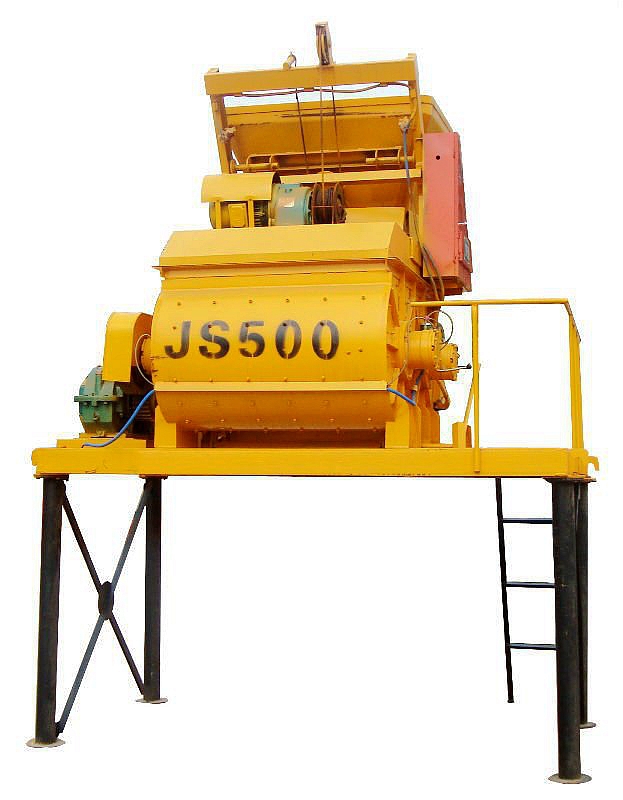

Concrete mixer,twin shaft concrete mixing machine JS500 is a twin-shaft compulsory concrete mixer,applicable to all types of medium and small prefabricated plants and highways, bridges, water conservancy, port and other industrial and civil engineering. It can mix dry hard concrete, plastic concrete, flowing concrete, lightweight aggregate concrete and various mortar.
JS serial twin horizontal shaft compulsory concrete mixer is a new concrete mixing machinery with multi functions and can be applied to mix stiff consistency, plastic and light aggregate concrete and all kinds of mortar.
The concrete mixer has such characteristics as simple structure, high mixing quality, high efficiency, low energy consumption, low noise and simple operation, and can be used with dump car, truck and concrete mixing truck together and is the ideal machinery in construction sites and large & medium-size cast concrete factories.
Mode |
JS500 |
JS750 |
Output Capacity |
500L |
750L |
Input Capacitu |
800L |
1200L |
Productivity |
≥25m³/h |
30~35m³/h |
Max aggregate size(mm) |
80/60 |
80/60 |
Mixing blade speed |
35r/min |
30r/min |
Mixing blade No. |
2×7 |
2×7 |
Mixing motor |
Y180M-4 |
Y200L-4 |
Mixing motor Power |
18.5kw |
30kw |
Hoist Motor Power |
5.5KW |
7.5kw |
Water pump motor Model |
WB-50-40-95 |
WB50-40-95 |
Water pump motor Power |
0.75kw |
0.75-1.1kw |
Hopper lifting speed |
34m/min |
34m/min |
Dimensions (Transportation status) |
3050×2300×2680mm |
3600*3400*2800mm |
Dimensions(Working status) |
4461×3050×5225mm |
3600*3400*5800mm |
Total weight |
4160kg |
7000kg |
Dumping height |
1500mm |
1700mm |
Our Services
We supply the technical supporting all the time.
We supply one year warranty for whole machine.
We supply free quick wear parts.
We supply free training to end-users.
Strength
Manufacturer of construction mixing machine
1. Used for concrete mixing
2. Use together with batching machine
3. Powerful engine
4. Lower price, higher value for money
5.High mixing speed
6. Trustworthy with high quality
7. Patented product
8. After-sale overseas Service
9. Efficient working process
Company &strength
Shuangli Building Materials Machinery Factory . is a professional manufacturer of Building Machinery,Construction Machinery and so on. It has large production capacity and advanced technology and a full serious of product line. we adhere to innovation,self-development and high quality service .Our products are popular all over the world,such as EU,South America,Southeast Asia,South Africa. Our company insists on the business theory of "surviving on quality,customer and credit first"and constantly improving ourselves. we sincerely welcome all customers at home and abroad to visit our company.we are looking forward to building up good business relationships with you. Welcome you come to visit our factory.
Packaging & Shipping
By the sea or by the train. precast concrete extrusion panel machine with high quality was packed in wooden case.
