Packaging & Delivery
| Packaging Details: |
Carton packaging |
|---|
| Delivery Detail: |
ONE MONTH AFTER T/T |
|---|
Specifications
1.active running
2.no need of exterior power supply
1.Product Introduction

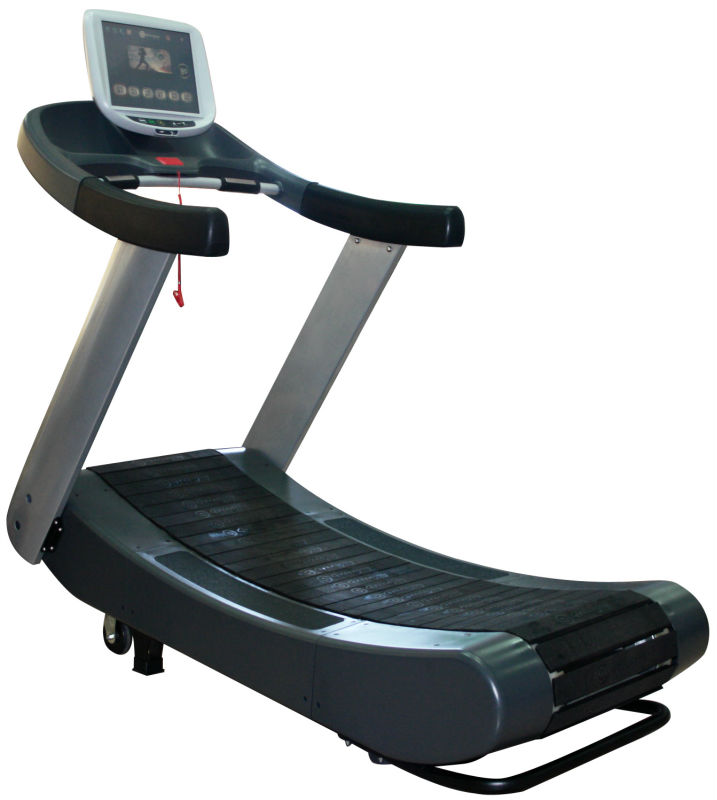

Crawler self-generating electric treadmill is a new concept green treadmill developed by our company independently, which adopts an elastic rubber arc running deck, crawler running belt lamination technology, self-generating electric control technology and bearing drive technology. Using gravity to start, accelerate and decelerate and controlling the speed freely, the product overcomes the impact to the knee due to the failure of footsteps to keep up with the running belt in passive running, radically puts an end to the traditional electric “passive” running way and realizes “active” running in the real sense. The arc running surface, crawler elastic rubber running belt and active running design reduce the impact during movement and effectively protect the runner’s knees, while the bearing drive system reduces movement wear and lowers the maintenance costs.
The self-generating electric control system carried by the treadmill will convert the mechanical energy generated during treadmill running into electrical energy to realize the panel display, parameter setting, movement mode selection, multimedia entertainment, speed limit control, emergency stop and other functions, and display the time, distance, number of steps, movement speed, maximum speed limit, heart rate, calories and other parameters in a real-time manner; the battery will be charged automatically during movement to achieve electric energy storage.
Featuring rich entertainment function design, the product can be connected to the U disk externally to read and play the audio, video and image files, receive TV and AV signal externally to play television and video, or be wirelessly connected to phones with Bluetooth to play the music in the phones and make and answer calls. Standard USB interface is provided to charge your phone and MP3.
The self-generating eletric design makes the product independent from external energy, saves the energy, reduces the environmental use requirements, and largely lowers costs, which is in line with the energy-saving and environment-friendly development trend of fitness equipment.
2. Comparative advantage
|
NO.
|
ITEM
|
The traditional electric treadmill
|
Crawler self-generating electric treadmill
|
|
1
|
belt shape
|
flat face
|
cambered surface
|
|
2
|
touchdown
|
heel-first
|
Whole soles
|
|
3
|
shock absorption
|
elastic cushion\nickel-clad
\Rubber strip\coil spring
|
elastic rubber
|
|
4
|
belt damage
|
sliding friction between running belt bearing surface and users feet
|
sliding friction between running belt and users feet,
Running belt and bearing surface rolling friction
|
|
5
|
life expectancy
|
1~2 years \15000km
|
More than 5 years
|
|
6
|
drive mode
|
electrical drive
|
gravity action
|
|
7
|
running form
|
passive
|
initiative
|
|
8
|
exercising effect
|
below ground activities
|
above ground activities
|
|
9
|
speed adjustment
|
key control
|
freedom to adjust by user
|
|
10
|
knee’s impact
|
a.gravity running impact
b.bearing surface impact
c.passive running impact
|
gravity running impact
|
|
11
|
security
|
sudden stoppage
|
no sudden stoppage
|
|
12
|
energy consumption
(1 year )
|
>5000KWH (6hour / day)
|
0
|
|
13
|
other expenses
|
decorate cost\Circuit of increase
capacity\Circuit costs
|
0
|
|
14
|
environment
|
220V power supply places
|
No special requirements
|
3. Functions and Features
l Made with patent technology and multiple pioneering advanced technologies;
l Crawler arc running belt allows the imitation of real running feelings, effectively reduces movement impact and protects the knee;
l The movement speed can be self-regulated by the runner’s foothold and controlled freely;
l The maximum movement speed is controllable and the maximum speed limit can be adjusted in a real-time manner;
l Cord-type emergency stop switch can be triggered by pressing or pulling the cord;
l Membrane keyboard + LCD touch screen for virtual key operation, which is convenient and reliable;
l 15-inch color LCD touch screen, simple and intuitive man-machine interface;
l Display the time, distance, number of steps, heart rate, calories, real-time speed, maximum speed limit and other parameters as well as the target progress in a real-time manner;
l 18 kinds of movement programs under 6 categories including target mode, professional racing mode, long-distance running mode, mountain mode, progressive mode and target compliance test can be selected;
l Three movement interfaces, namely runway, curve and multimedia;
l There are multiple entertainment functions, including video, music, images, TV, Bluetooth and AV;
l Total movement mileage accumulation function;
l Unique movement performance chart function;
l Standard USB interface, which can be connected to removable storage devices externally to display the video, music and images, and charge mobile phones and MP3, etc.
l Standard headphone jack;
l Bluetooth function, which can display the music in the phone and make and receive calls;
l Contact heart rate and wireless heart rate measurement;
l Support metric and imperial units;
l Automatic battery charging and protection and status indication;
l Automatic battery power saving function, startup of the treadmill in movement, and startup and shutdown of the treadmill by pressing only one key;
l Part for external battery charging.
l Support Chinese and English languages.
l Meter can be adjusted to the users’ best visual angle.
4. Specifications
|
Display
|
TFT color touch screen
|
Running area
|
1500mm×430mm
|
|
Speed limit range
|
5~25km/h
|
Speed limit adjustment interval:
|
0.1~2, can be set
|
|
Maximum load
|
230kg
|
Standard USB interface
|
5V±5%, ≤1000mA
|
|
Battery
|
12V/12AH
|
Connect to the adapter power externally
|
DC18V±10%, ≥2A
|
|
Working temperature
|
0~40°C
|
Floor space (L*W*H)
|
1700mm×880mm×1700mm
|
|
Working humidity
|
Less than 80%
|
Whole weight
|
Net weight of 166 kg
|
![]()
