Opinions
|

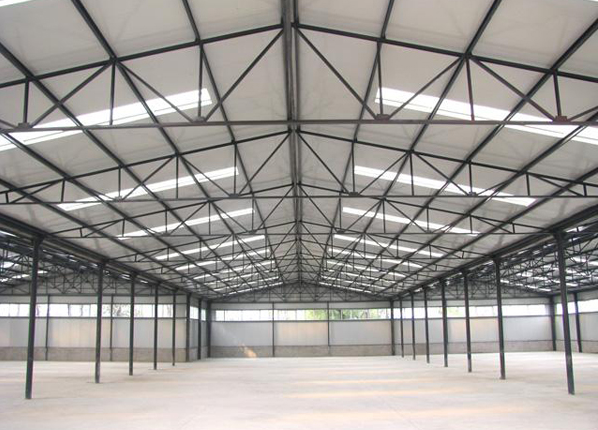

1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.
|
2)We can also make and develop new parts according to customers' drawings and detailed dimensions.
|
Specifications
|
1)Size: MOQ is 100m2, width X length X eave height, roof slope
|
2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
|
3)Base: Cement and steel foundation bolts
|
4)Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section!
|
5)Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
|
6)C or z purlin: Size from C120~C320, Z100~Z200
|
1)Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick,(1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm.
|
2)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc
|
3)Surface: Two lays of Anti-rust Painting!
|
10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ!
|
Design Parameters
|
If you need we design for you, pls supply us the following parameter together with detail size:
|
1)Live load on roof(KN/M2)
|
2)Wind speed(KM/H)
|
3)Snow load (KG/M2)
|
4)Earthquake load if have
|
5)Demands for doors and windows
|
6)Crane (if have) , Crane span, crane lift height, max lift capacity, max wheel pressure an
|
