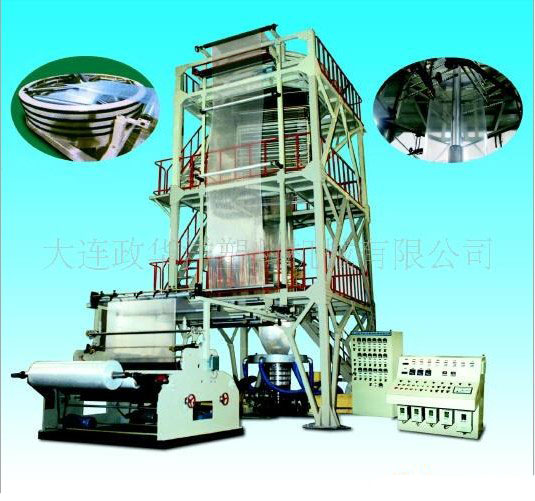

Three Layer Plastics Coextrusion Lamination Blowing Film Line is optimum designed on the grounds of preference of analogous lines in foreign.
Screw diameter: : ∮50mm
Screw L/D ratio: : 30:1
Screw speed: : 130r/min
Main motor power: : 22*2kw 30*1kw
Extrusion output single: : 70kg/h
Lip size: : ∮300mm
Electric total capacity: : 135-152kw
Max. fold width of film: : 1350mm
Overall dimensions: : 8.5*4.8*8.8m
Weight: : 14.6t
Up-take-off rotating line is optimum designed on the grounds of preference of analogous lines in foreign.
The line can blow film different in gold width continuously. 0.03-0.20mm in thickness packaging film, from LDPE, HDPE, LLDPE, MLLDPE by horizontal extrusion up blown.
The film has good insulation, well for holding temperature, preventing goods from humid, breezing, rain, frost, oxygen and oil. It can be used for light and heavy-duty packaging, for example, fresh fruits, meat-feeding, salt vegetables, fresh milk, drink, rubber tire insolate film, conductive film and antistatic film.
1. Rotating unit is a horizontal design in drum horizontal differential action rotates, reciprocating motion at ±360°stability good.
2. Rugged construction. Tower is constructed of heavy-duty structural steel list that assures stable and reliable performance.
3. Good controllable air current hole and axial distributive along air mat roll, with the result that film floating.
4. Allocate D.C photo automatic corrector system. Therefore film is in alignment.
5. Rapid screen changer design is rational, convenient, reliable, safe in operation.
6. Various functional parts have been installed, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller and scrap collecting device.
7. PLC control auto or meni-auto winding-up.
8. IBC system is useful for improving transparency and output of film, also eliminate odd smell in bubble.
Dalian ZHENGHUAYANG Plastics Machinery Co.,Ltd.established in 1984,mainly specializes in the design and production of series film blowing.It has been certificated and registered as a "Municipal Growing Enterprise"and"National High and New Technology Enterprise".The company covers a land more than 45 thousand square meters,and roganizes the production with most advanced top class precise CNC machine(4-Axle,3-Axle,Laser Cutting),with most effective manufacturing process and managements system.Benefited by these unremitting efforts,the registered brand"CRYSTAL BALL"and series of products have been appraised ad a symbolic mark in the whole industry.
The company adheres to"operating in good faith"innovating by latest Technology,developing with customers,employees and enterpriseclsely together,for the eternal business concept,stands on the world's trends of "highly effective,energy conservation,enveronmental protection"for the produces research development of film blowing machinery industry.
ZHENGHUAYANG will,as always,strive to forge ahead to revitalize the national brand,to create more value for the customers with excellent products and service.
