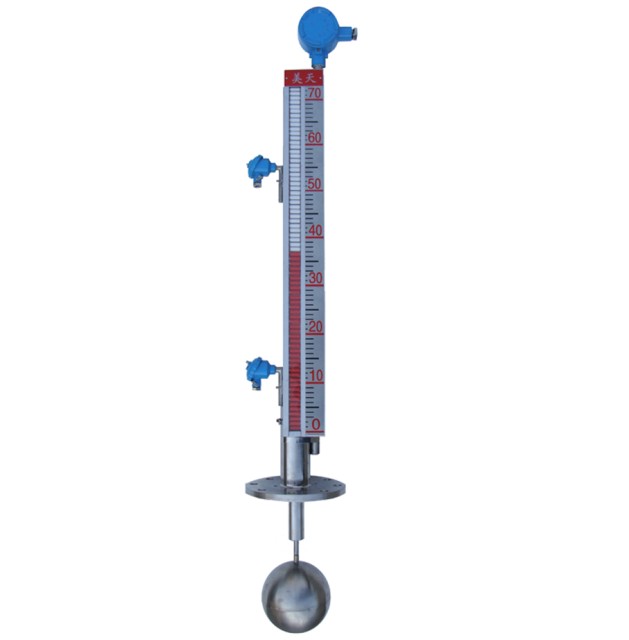

Top-Installation Magnetic Float Level Gauge

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time: 1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Send Inquiry Add to My Favorites

Share to:

Basic Information

Brief description

MTUHZ-55 series top-installation magnetic float level gauge is used for liquid level overground indicator of medium contained in the underground shafts, boxes and vessels. Liquid level indicator of level gauge is completely isolated from the steam. Therefore, it has characteristics of safe and reliability. Besides the liquid level indicator is clear, easy to observe, and be able to provide convenience for liquid level test of flammable, explosive, toxic and corrosive medium. julin@mec.com.cn

Detailed description

julin@mec.comexportimescheck****

Overview:
MTUHZ-55 series top-installation magnetic float level gauge is used for liquid level overground indicator of medium contained in the underground shafts, boxes and vessels. Liquid level indicator of level gauge is completely isolated from the steam. Therefore, it has characteristics of safe and reliability. Besides the liquid level indicator is clear, easy to observe, and be able to provide convenience for liquid level test of flammable, explosive, toxic and corrosive medium. The liquid level indicator is tracking double-color turning column, and its measurement results can be transmitted far through circuit to reach the purpose of remote control and monitoring.

Technical Parameter
Measurement Range: 300-3000mm
Accuracy: ≤±10mm
Medium Gravity: ≥0.68g/cm3
Working Temperature:-80-400℃
Working Pressure: 0≤ 4.0Mpa
Medium Viscosity: ≤0.1Pa.S
Flange Dimension: made by requirements
Transmitting Output Signal:4-20mADC(two-wire system) Loaded Resistance: ≤500Ω
Power Supply: 24V DC±10%
Explosion-proof: Ex dllCT6, Ex iallCT4-6
Note: Any special requirements can be mentioned when ordering
